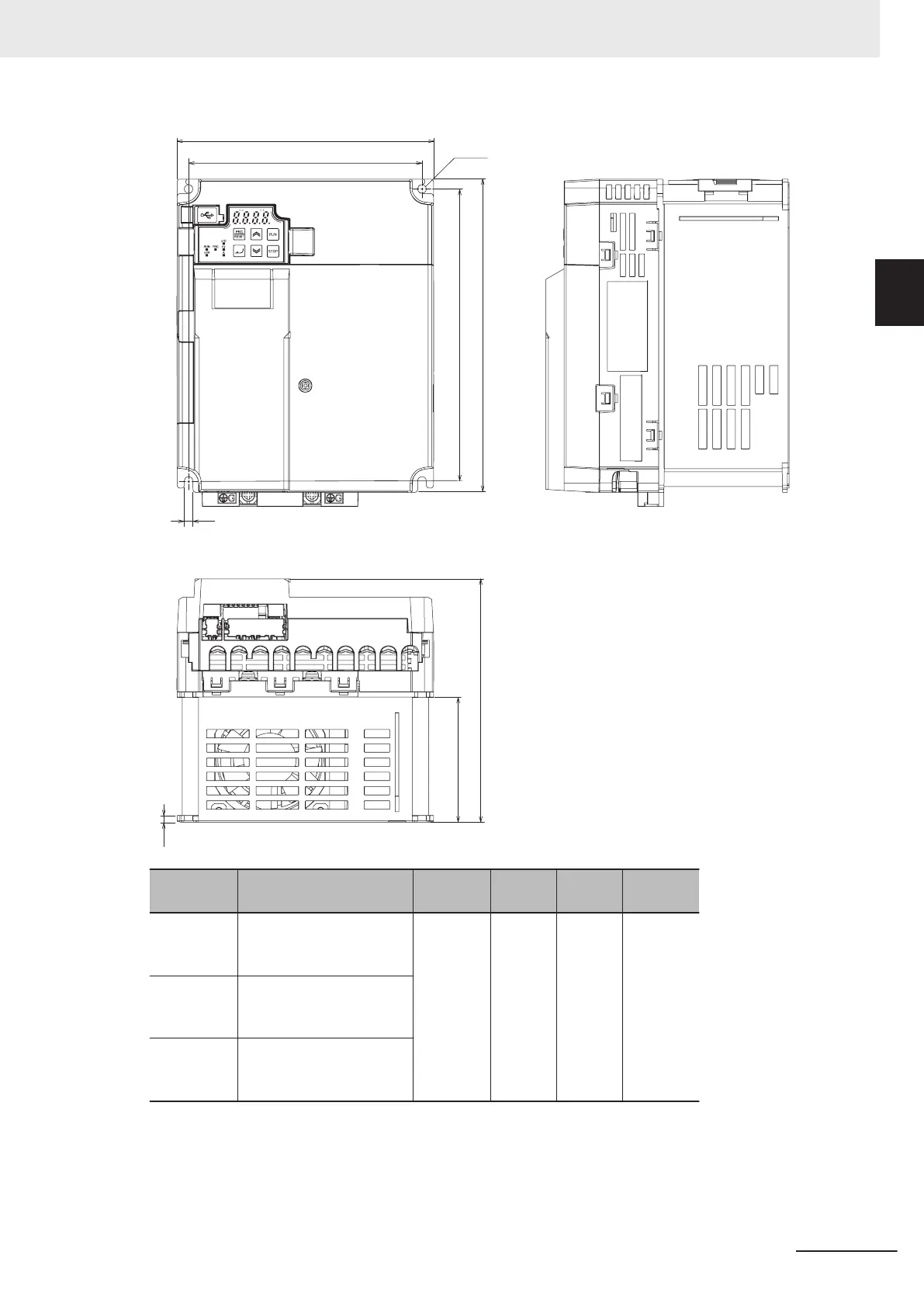

Omron M1 Series - Page 55

D
D1
5
180 (W)
164
2xj6
220 (H)
205
6
Power
supply
Model W [mm] H [mm] D [mm] D1 [mm]
Single-
phase 200
V
3G3M1-AB037
180 220 171 87.7
Three-
phase 200
V
3G3M1-A2055
3G3M1-A2075
Three-
phase 400
V
3G3M1-A4055
3G3M1-A4075
1 Overview
1-21
M1 Series Standard Type User's Manual (I669)
1-3 Specifications
1
1-3-2 External Dimensions
