Omron M1 Series - Page 57

D
D1
10
250 (W)
226
2xj10
400 (H)
378
10
Power
supply
Model W [mm] H [mm] D [mm] D1 [mm]
Three-
phase 200
V
3G3M1-A2185
250 400 203 90
Three-
phase 400
V
3G3M1-A4185
3G3M1-A4220
1 Overview
1-23
M1 Series Standard Type User's Manual (I669)
1-3 Specifications
1

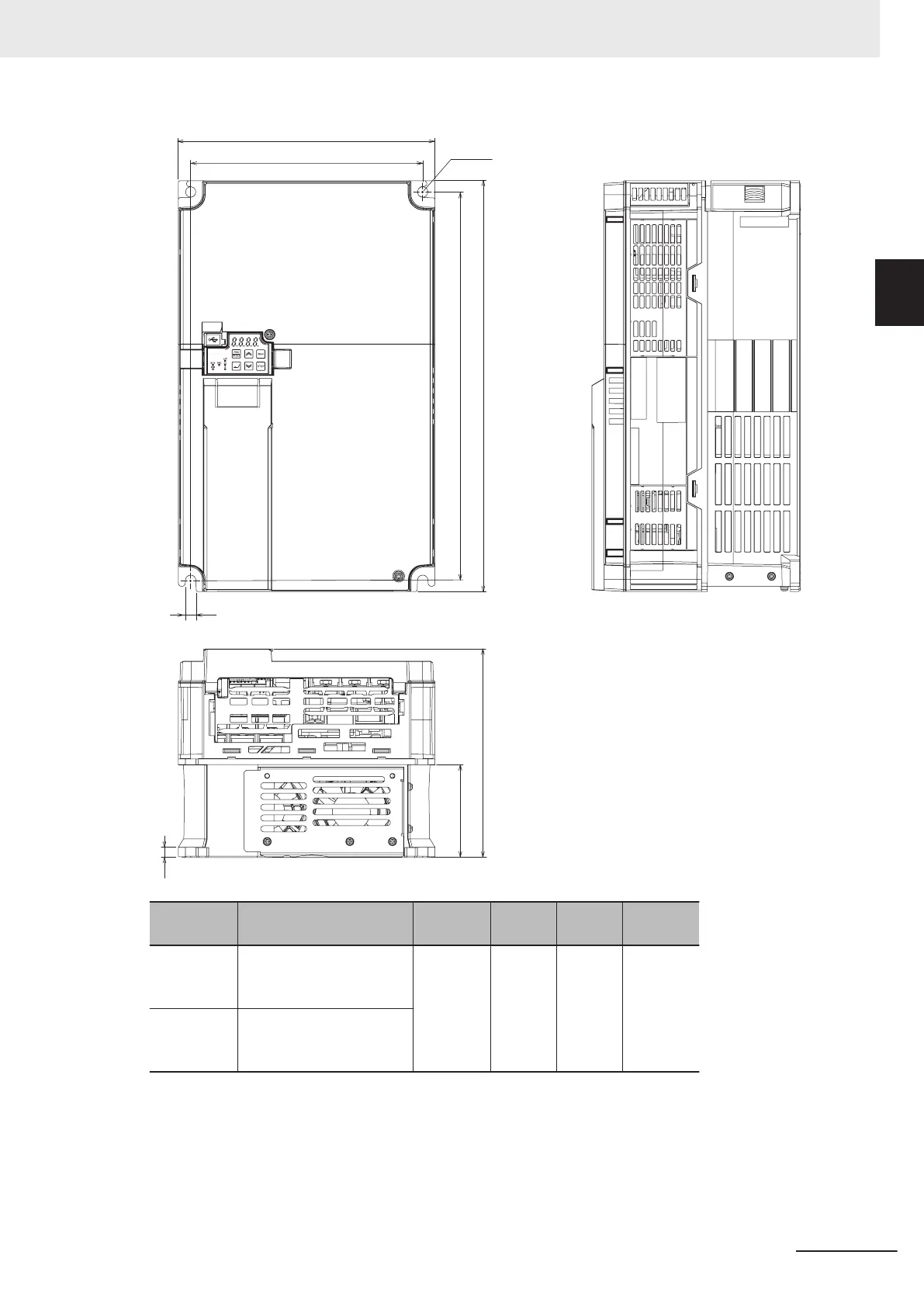

1-3-2 External Dimensions
