6-77
6 Programming
NJ-series CPU Unit Software User’s Manual (W501)
6-5 Programming Languages
6
6-5-2 Ladder Diagram Language

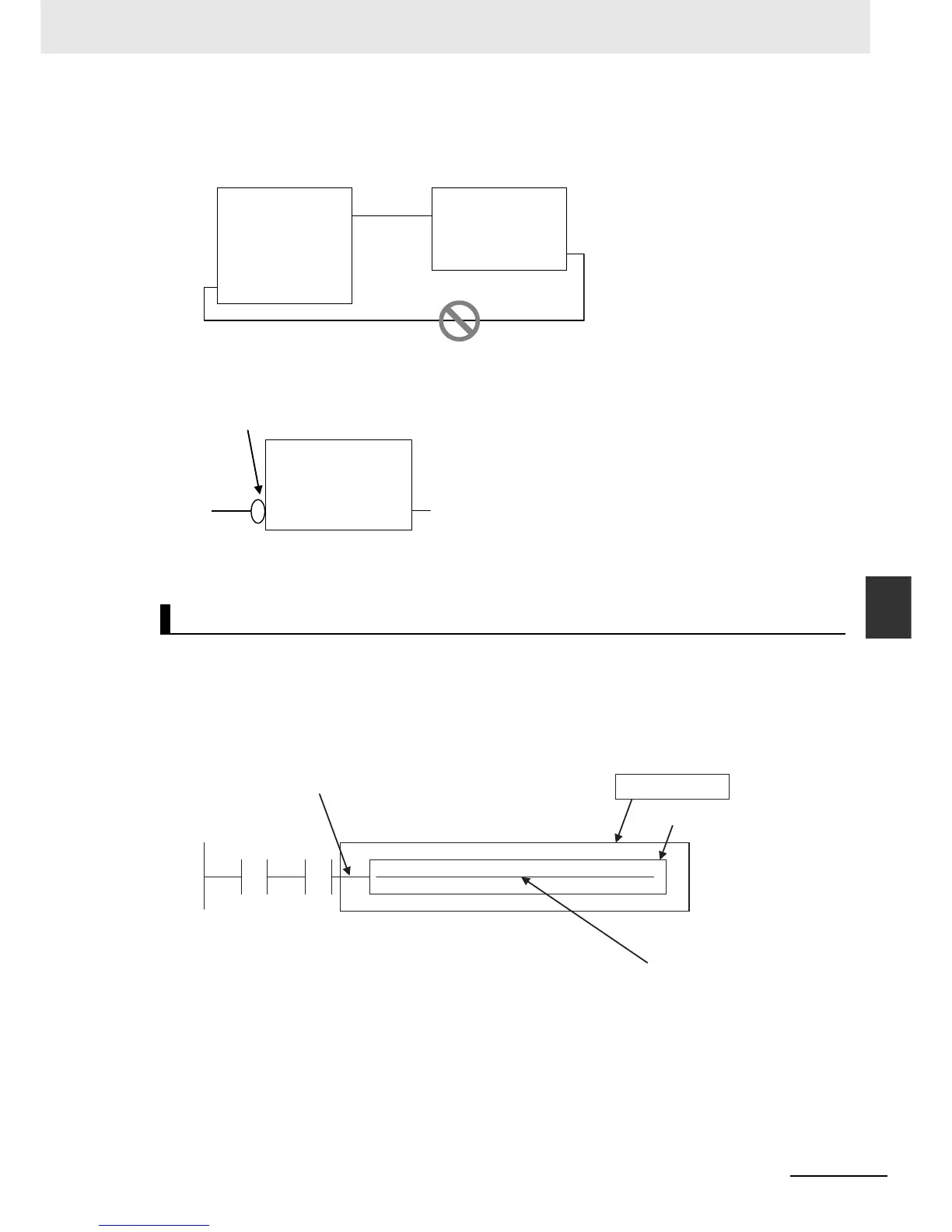

Restriction
• You cannot create closed loops or intersect connecting lines.
Example:
NOT Inputs
You can reverse the value of a BOOL input variable when you input it to an instruction.
Introduction
Inline ST is a ladder diagram programming element in which you can write ST language code in a
box called an inline ST box (a blank text input area) within a ladder diagram. This allows you to eas-
ily code numeric data processing and text string processing within ladder diagrams. The connecting
line to an inline ST box becomes its execution condition. The ST code inside of the box is executed
based on that connecting line. Refer to the following figure.
Inline ST is treated as a rung element in a ladder diagram. Therefore, unlike functions and function
blocks, they have no input, output, or in-out variables.
Restrictions for Inline ST
You can write ST language code in inline ST boxes.
Inline ST
FB2
EN ENO
IN OUT
EN ENO
IN1 OUT1
IN2 OUT2
FB1
No closed loops
NG
NOT input
FB
(BOOL) (BOOL)
TRUE→FALSE
FALSE→TRUE
Q
IN
i1 i2
taiseki := 4.0 * 3.14 * radius *radius * radius / 3.0;
Inline ST
Execution Condition for Inline ST
Inline ST box
Enter the ST language code here.
To Next Page
