10 Communications Setup
NJ-series CPU Unit Software User’s Manual (W501)
10-2 Connection with Sysmac
Studio
10
10-2-2 Configurations That Do Not Allow Online Connections
 Connecting to EtherNet/IP through USB
Directly specify the IP address of the remote device or select the remote device from the node list.
 Connection through an EtherNet/IP Unit
You cannot connect through a CJ1W-EIP21 EtherNet/IP Unit that is connected to an NJ-series CPU
Unit.
 Routing through CS/CJ-series EtherNet/IP Units/Ports
You cannot connect to an NJ-series CPU Unit by routing through a CS/CJ-series Ethernet/IP Unit or
port (CS1W-EIP2, CJ1W-EIP21, CJ2 CPU Unit built-in EtherNet/IP port, or CJ2M CPU Unit built-in
EtherNet/IP port).

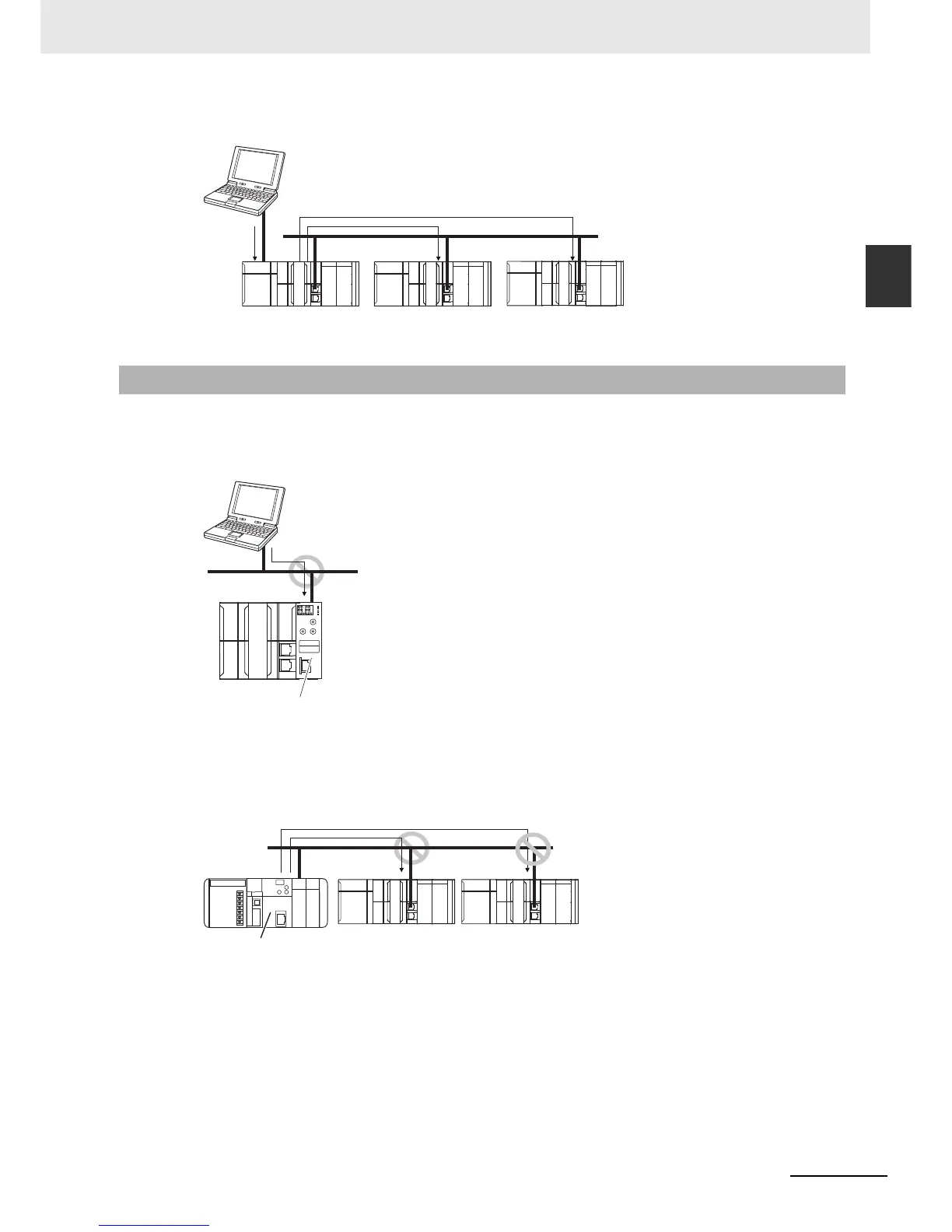

10-2-2 Configurations That Do Not Allow Online Connections
Sysmac Studio
USB
EtherNet/IP
Sysmac Studio
EtherNet/IP
CJ1W-EIP21
EtherNet/IP Unit
EtherNet/IP
CJ2 CPU Unit built-in EtherNet/IP port or EtherNet/IP Units

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
