10 Communications Setup
NJ-series CPU Unit Software User’s Manual (W501)
10-3 Connection with Other
Controllers or Slaves
10
10-3-1 Connection Configurations between Controllers
10-3 Connection with Other Controllers or
Slaves
This section shows the connection configurations that are used between Controllers and between Con-
trollers and slaves.
You can use the built-in EtherNet/IP ports or ports on CJ1W-EIP21 EtherNet/IP Units.
For information on the built-in EtherNet/IP port, refer to the NJ-series CPU Unit Built-in EtherNet/IP Port
User’s Manual (Cat. No. W506). For information on the CJ1W-EIP21 EtherNet/IP Unit, refer to the CJ-
series EtherNet/IP Unit Operation Manual for NJ-series CPU Unit (Cat. No. W495).
 Tag Data Links
You can create tag data links between NJ-series CPU Units on an EtherNet/IP network.
 Message communications
You can send CIP messages from the user program.

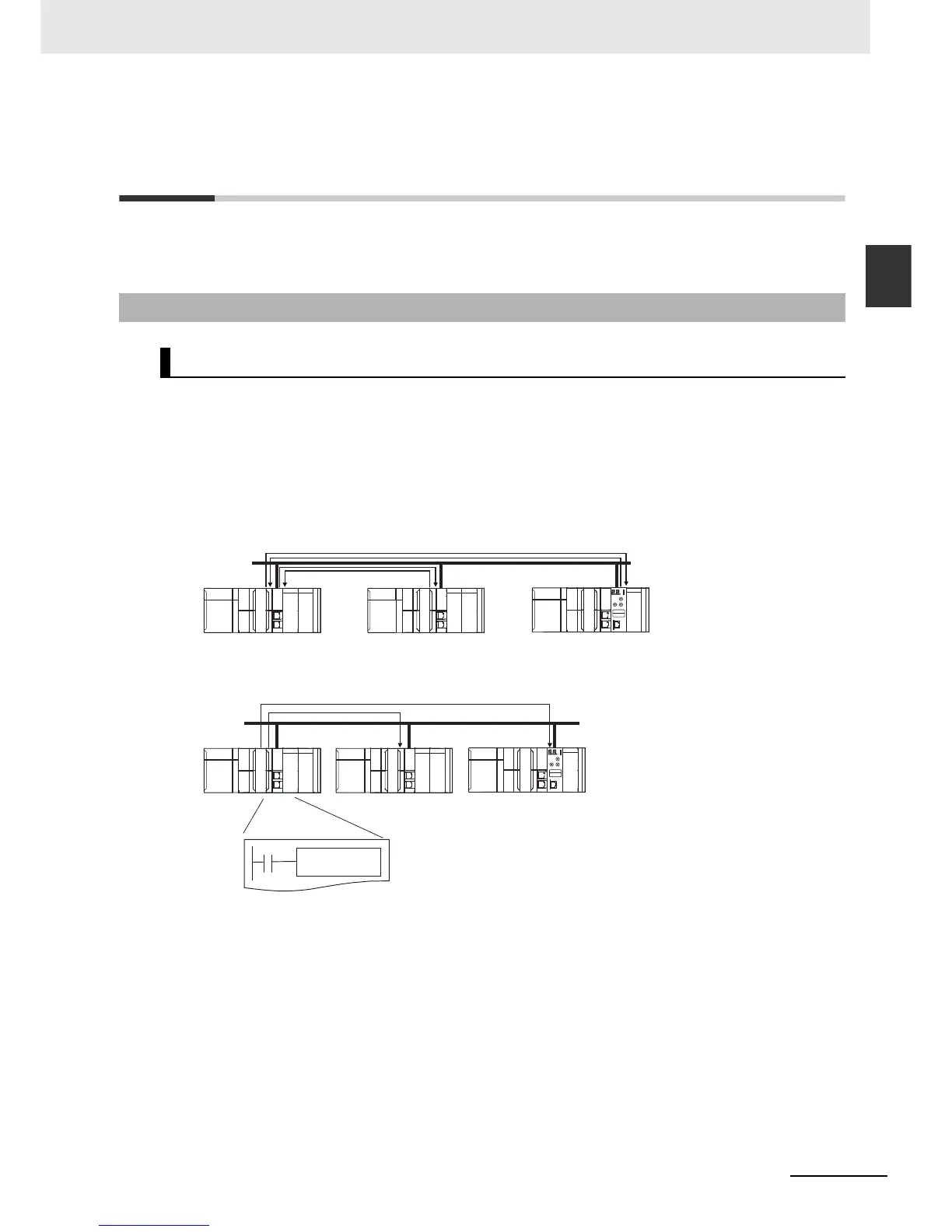

10-3-1 Connection Configurations between Controllers
EtherNet/IP
EtherNet/IP
CIP communications
instruction
EtherNet/IP

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
