3-2-3 Verifying the Unit Configuration
You can verify if the Unit Configuration on the Sysmac Studio and the Unit Configuration that is saved in
the CPU Unit are the same. You can compare the Unit Configuration on the Sysmac Studio with the
Unit Configuration Information that is stored in the CPU Unit to see if they match before you download
the Unit Configuration to the CPU Unit from the Sysmac Studio.

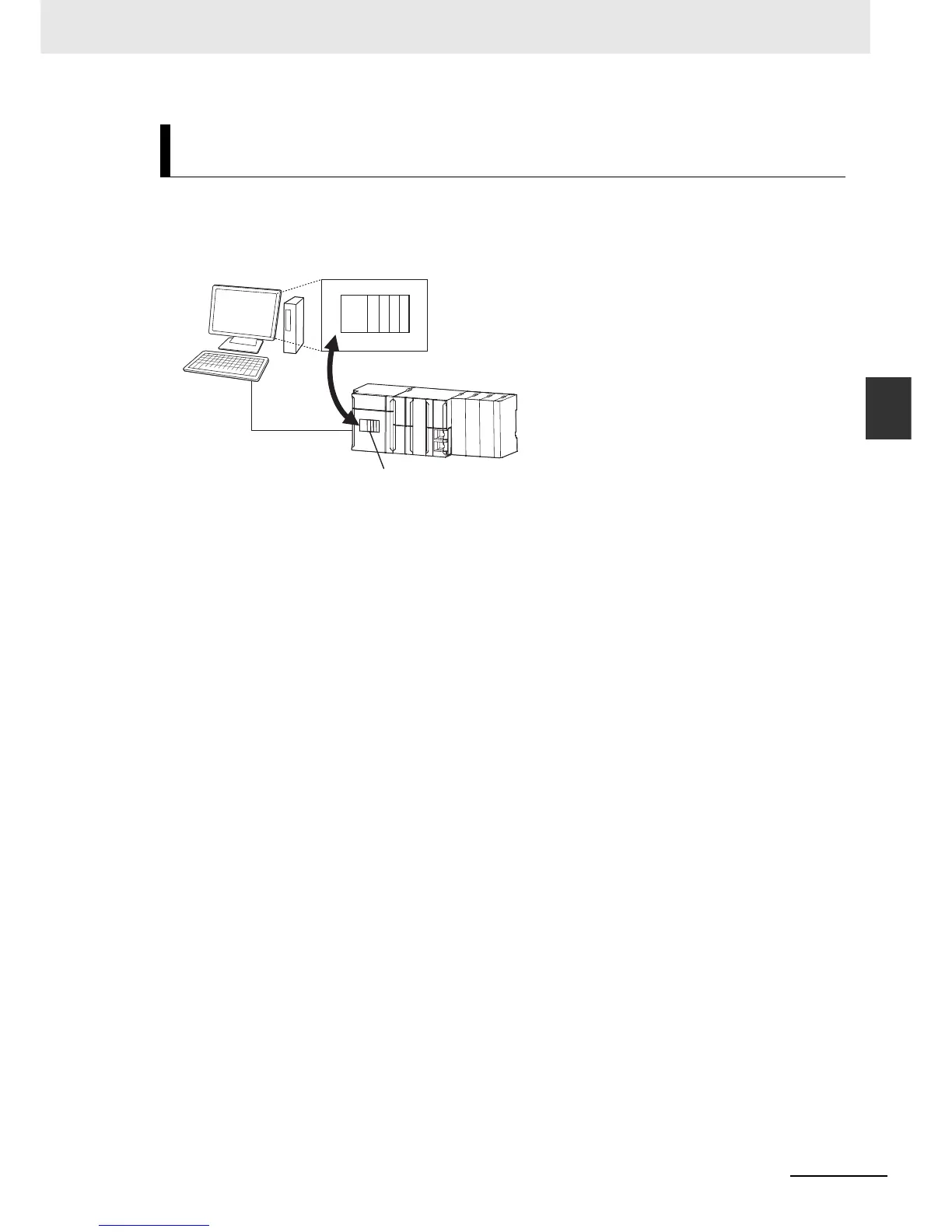

Comparison between the Unit Configuration on the Sysmac Studio
and the Unit Configuration in the CPU Unit
CPU Unit
Unit Configuration
Sysmac Studio
Compared.
Unit Configuration Information
