10-9

10 Interrupts

CP2E CPU Unit Software User’s Manual(W614)

10-2 Input Interrupts

10-2-3 Application Example

z Programming Example

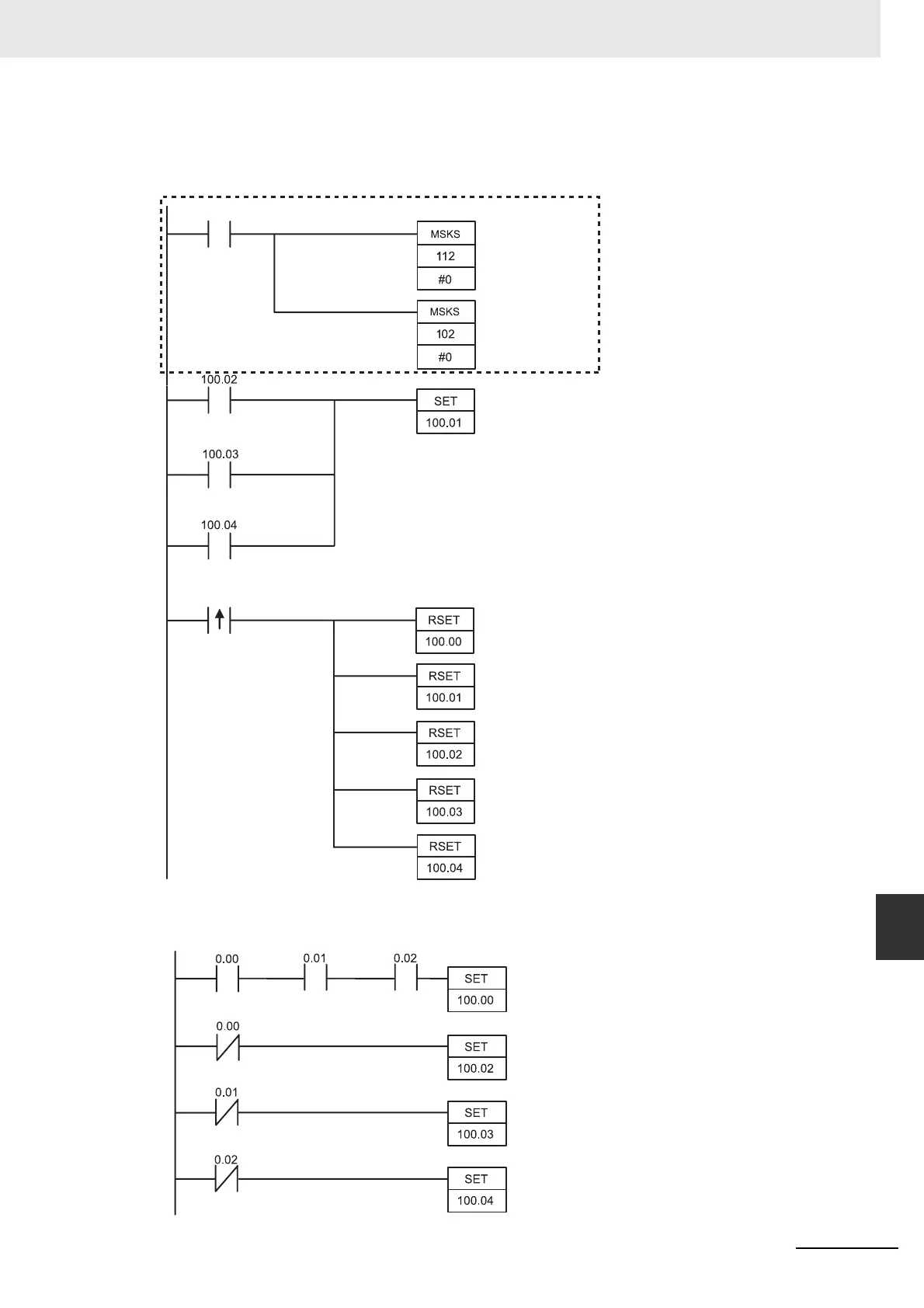

Cyclic Task

Interrupt Task 2

0.04

Interrupt input 2

Specifies executing

interrupt when input

turns ON.

Unmasks the input

interrupt.

The MSKS instruction is used

to specify an interrupt when the

input turns ON and then it is

used to unmask the input

interrupt.

NG output sensor input 1

P_First_Cycle

NG output sensor input 2

NG output sensor input 3

Reset input

Sensor input 1

Sensor input 2

Sensor input 3

OK output

NG output 2

Sensor input 1

NG output 3

Sensor input 2

NG output 4

Sensor input 3
