15 Ethernet

15-12

CP2E CPU Unit Software User’s Manual(W614)

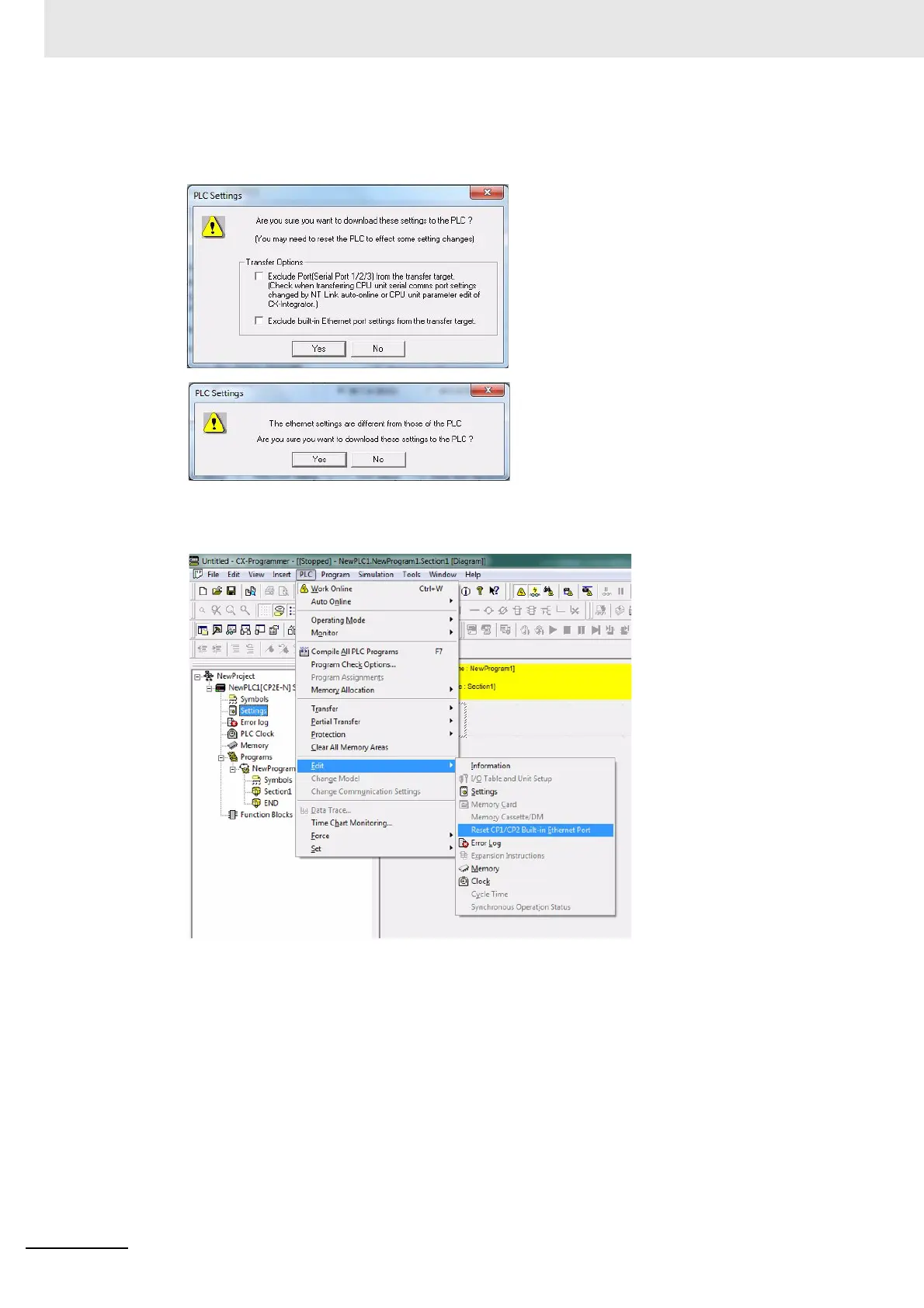

Transfer the settings to the PLC.

Click on Yes in the following dialog box.

In order for the Ethernet Setup to go into effect, the Ethernet Port must be restarted.

Please use the following way to reset the Ethernet Port.

After the LNK/ACT indicator has turned OFF and then turned ON again (Ethernet cable should

be connected), the Ethernet port will recognize the new settings.
