16 Other Functions

16-16

CP2E CPU Unit Software User’s Manual(W614)

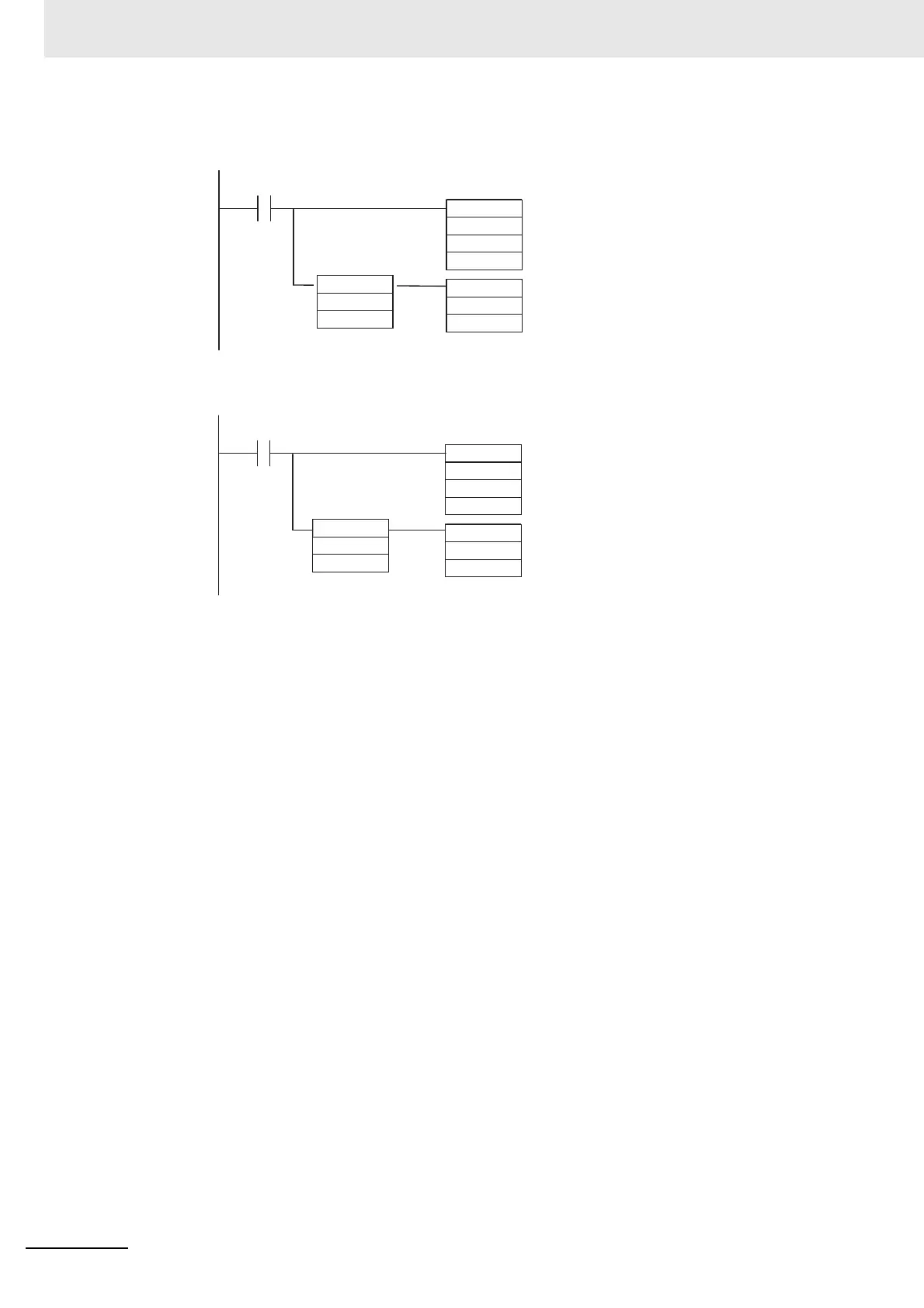

(2) The following instructions will create a fatal error to prevent the program from being

executed when the lot number does not end in 05.

(3) The following instructions will create a fatal error to prevent the program from being

executed when the lot number does not begin with 23Y.

A200.11 (First Cycle Flag)

ANDL(610)

A310

#00FF0000

FALS(007)

D100

#50000

<> L(306)

ANDL(610)

A310

#0000FFFF

FALS(007)

D100

#1123

A200.11 (First Cycle Flag)

<> L(306)
