18 Programming Device Operations

CP2E CPU Unit Software User’s Manual(W614)

18-5 Online Monitoring and Debugging

18-5-3 Online Editing

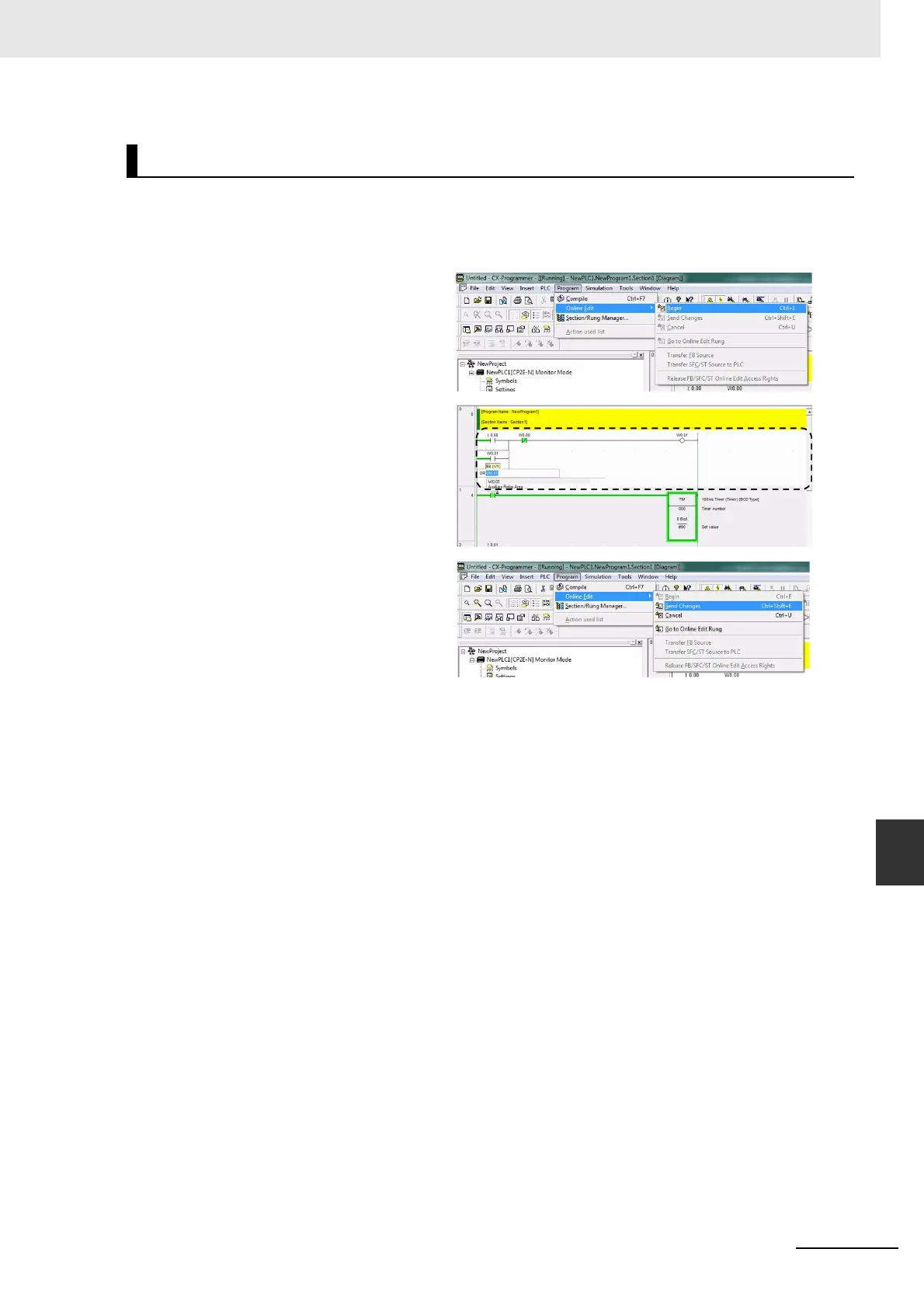

Online Editing Procedure

Change the CP2E’s operating mode to MONITOR or PROGRAM mode.

Click the header of the rung to be edited.

Select Online Edit - Begin from the

PLC Menu.

The gray color will be cleared from

the Ladder Section Window to indi-

cate that the ladder program can be

edited.

Edit the ladder program.

Select Online Edit - Send

Changes from the PLC Menu.

The edited rung will be transferred

to the CP2E.
