Omron SYSMAC CP Series User Manual

A-47
Appendices
CP2E CPU Unit Software User’s Manual(W614)
A-1 Instruction Functions
App
A-1-18 High-speed Counter/Pulse
Output Instructions

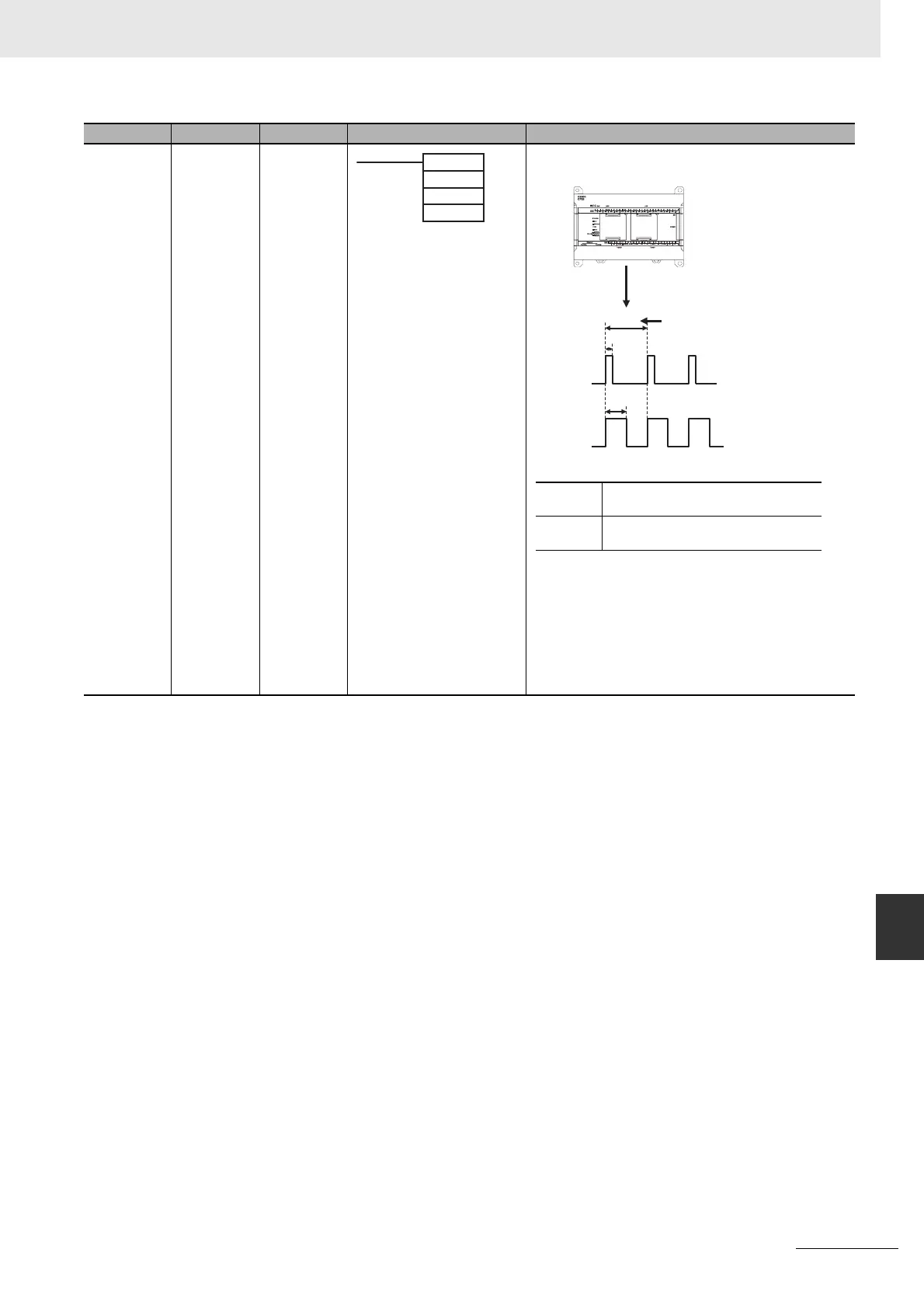

PULSE WITH
VARIA BLE
DUTY FACTOR
PWM @ Outputs pulses with the specified duty factor from the specified
port.
P: Port Specifier
F: Frequency
F specifies the frequency of the PWM output between 2.0 and
6,553.5 Hz (0.1 Hz units, 0014 to FFFF hex), or between 2 and
32,000 Hz (2 Hz units, 0002 to 7D00 hex).
D: Duty Factor
0.0% to 100.0% (0.1% units, 0000 to 03E8 hex)
D specifies the duty factor of the PWM output, i.e., the percent-
age of time that the output is ON.
Instruction Mnemonic Variations Symbol/Operand Function
P: Port specifier
F: Frequency
D: Duty factor
PWM(891)
P
F
D
Duty factor:50%
100%
50%
15%
Duty factor:15%
Built-in output
PWM output
Period is determined
by frequency
1000 hex
PWM output 0 (duty factor: in increments of
1%, frequency 0.1 Hz)
1100 hex
PWM output 0 (duty factor: in increments of
1%, frequency 1 Hz)
