NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

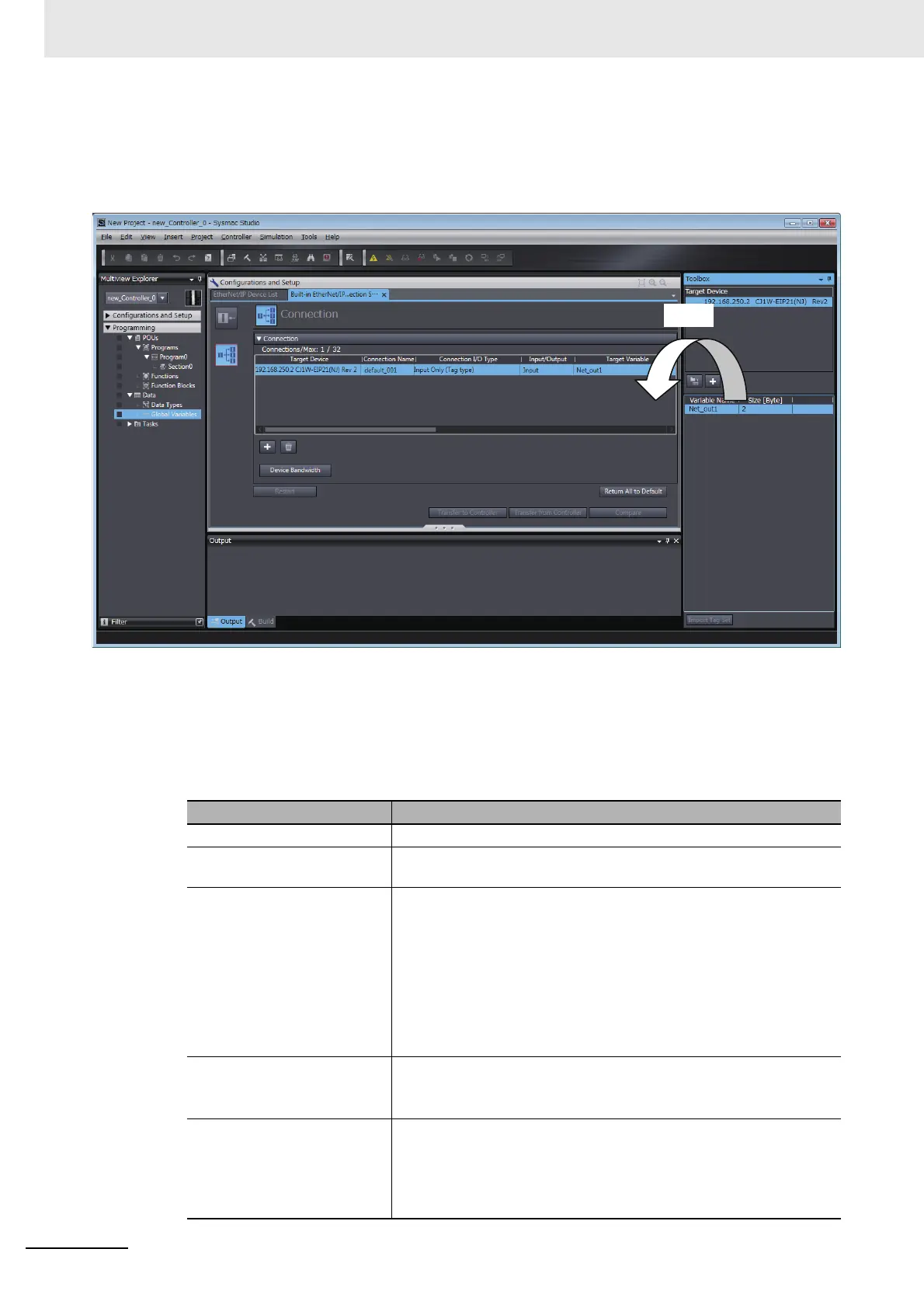

5 Drag the target device tag set Net_Out1 in the Variable Name column of the Toolbox to the con-
nection list.
As you enter characters (or immediately after you press the Ctrl + Space Keys), a list of target
device variables that can be set for the connection is provided. Select the value from the list.
6 Specify Originator Variable and its Size [Byte] for the tag set Net_Out1 added in step 5.
Here, specify Net_In1 for Originator Variable and 2 for its Size [Byte].
Change the other settings as required.
You can set the following items in the connection settings.
Name Setting Methods
Target Device Select the target device.
Connection Name Any name can be given to the connection (32 single-byte characters
max.).
Connection I/O Type Input Only (Tag type) is selected if EtherNet/IP connections are used
with a CS1W-EIP21, CJ1W-EIP21, CJ2B-EIP21, CJ2M-EIP21, CJ1W-
EIP21(CJ2), CJ1W-EIP21(NJ), NX701-, NJ501-,
NJ301-, or NJ101-.
When you create EtherNet/IP connections for other target devices,
select the connection I/O type specified in that device's EDS file.
Use the Input Only (ID type) setting when another company's node is
the originator and does not support connection settings with a Tag type
setting.
Input/Output The connection's input/output is automatically displayed based on the
selected connection.
Input Only: Just Input is displayed.
Target Variable Select the target node's tag set to assign it.
• Input is specified for Input/Output: Select the target's output (pro-
duce) tag set.
•Output is specified for Input/Output: Select the target's input (con-
sume) tag set.
