5 Sysmac Studio Settings for the Built-in EtherNet/IP Port

5-6

NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

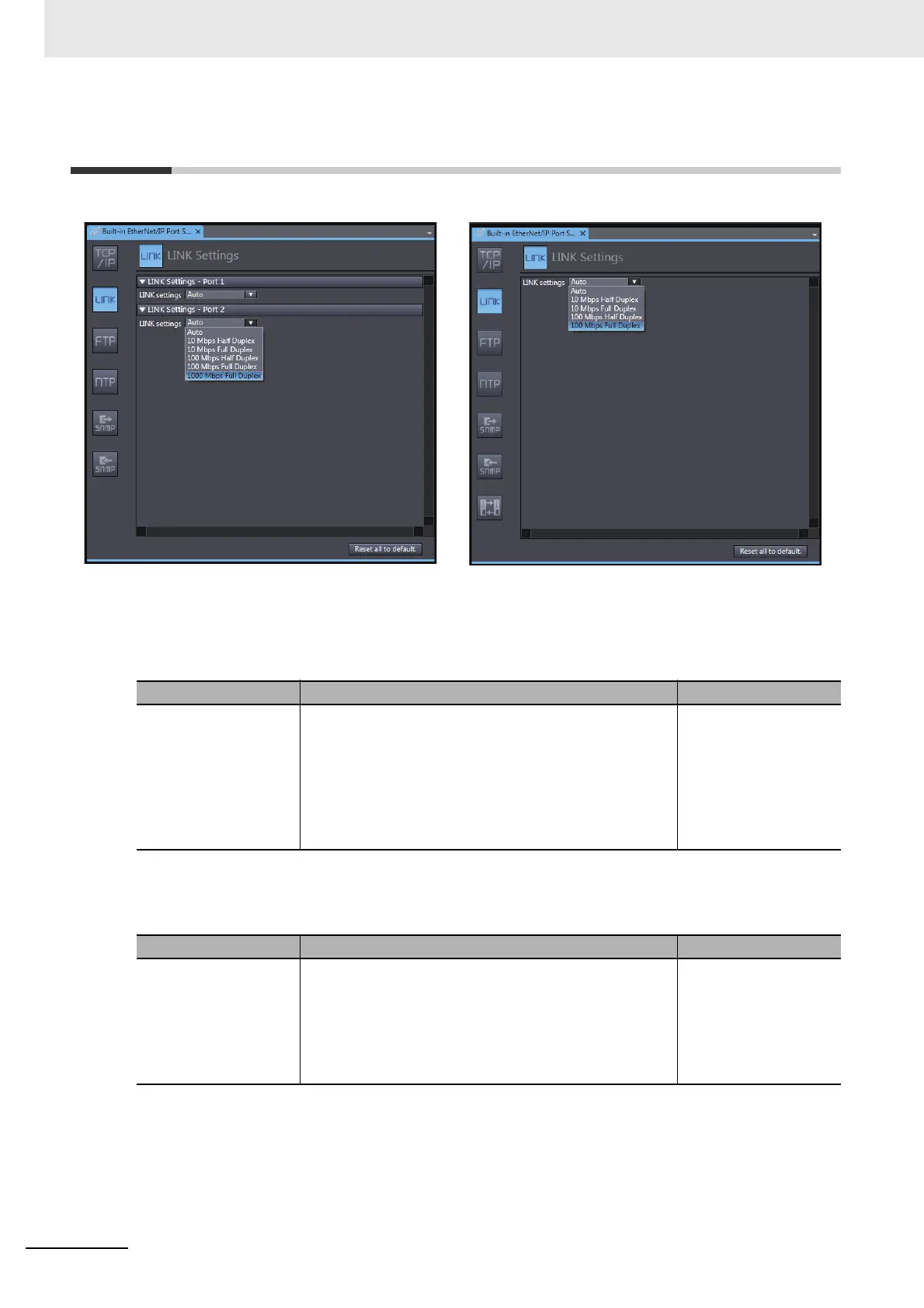

5-2 Link Settings Display

 LINK settings - Port 1 and Port 2 (NX701 CPU Unit)

Set for each built-in EtherNet/IP port.

 LINK settings (NJ-series CPU Unit and NX1P2 CPU Unit)

NX701 CPU Unit NJ-series CPU Unit

NX1P2 CPU Unit

Setting Description Default

LINK settings Set the baud rate for the built-in EtherNet/IP port.

• Auto

• 10 Mbps Half Duplex

• 10 Mbps Full Duplex

• 100 Mbps Half Duplex

• 100 Mbps Full Duplex

• 1000 Mbps Full Duplex

Auto

Setting Description Default

LINK settings Set the baud rate for the built-in EtherNet/IP port.

• Auto

• 10 Mbps Half Duplex

• 10 Mbps Full Duplex

• 100 Mbps Half Duplex

• 100 Mbps Full Duplex

Auto
