8 CIP Message Communications
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
8-3 CIP Communication Server Functions
8
8-3 CIP Communication Server
Functions
The CIP Communication Server functions are exclusively available for the NJ/NX-series Controllers.
These functions execute services for a specified self-contained object in the CPU Unit after receiving
the CIP messages from external devices.
This section provides information on CIP messages structure along with information about how to use
CIP messages in a program that runs on a computer or by other means and uses the CIP Communica-
tion Server functions to perform following:
• Writing CIP objects and the values of variables to the NJ/NX-series Controller,
• Reading CIP objects and the values of variables from the NJ/NX-series Controller.
To read and write CIP objects or the values of variables between NJ/NX-series Controllers, use the CIP
communications instructions. Refer to 8-2 CIP Messaging Communications Client Function for informa-
tion about how to use CIP communications instructions for CIP message communications.

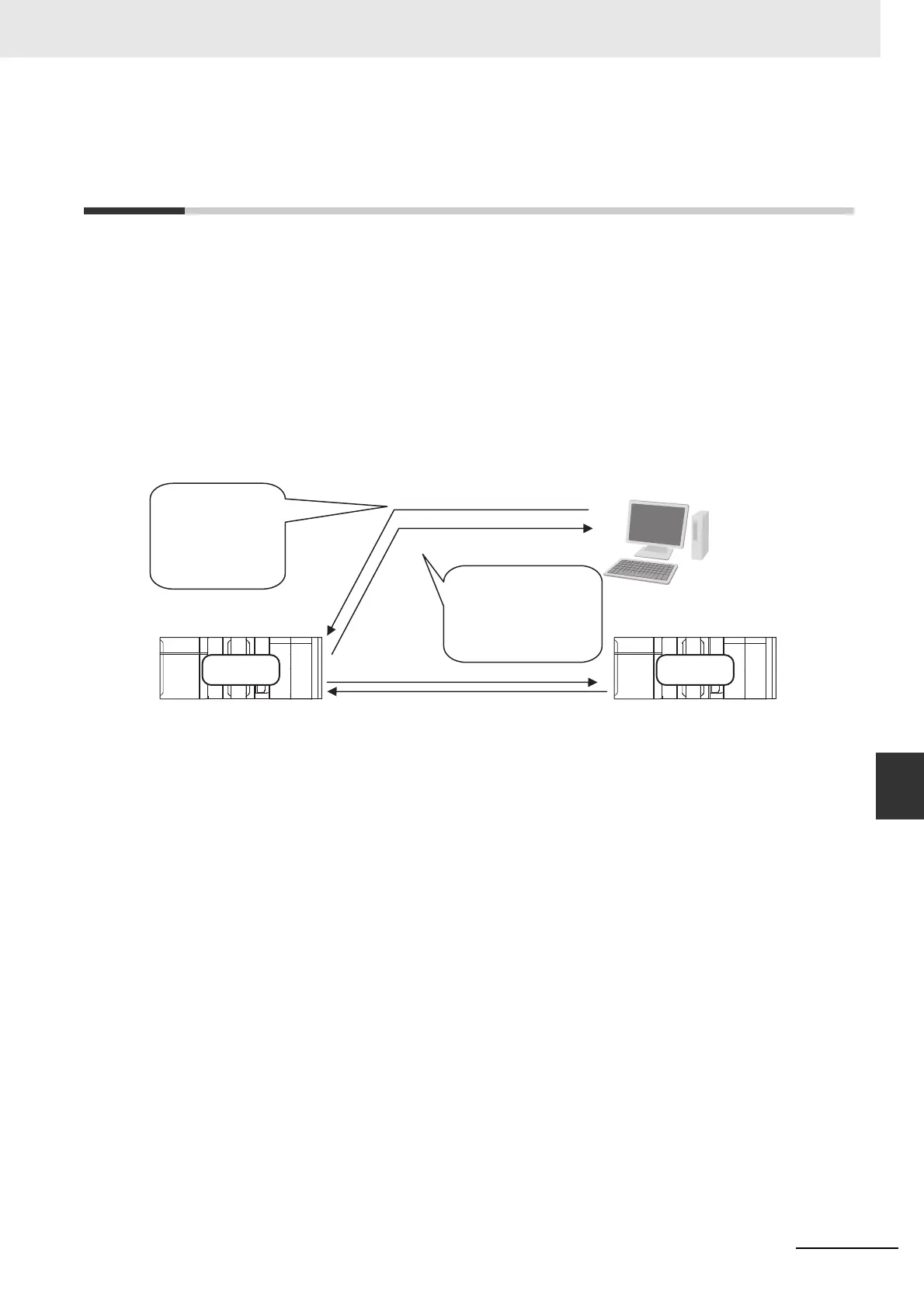

Computer
NJ/NX-series Controller NJ/NX-series Controller
You can read and write variables with
CIP communications instructions.
Request
Response
The writing results of the
specified CIP object or
variable, or the value that was
read from the specified CIP
object or variable are stored
in the response.
The variable to access
is specified in the
request path of the
CIP object or the
explicit message
to read or write data.
Variable Variable
