7-75
7 Tag Data Link Functions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7

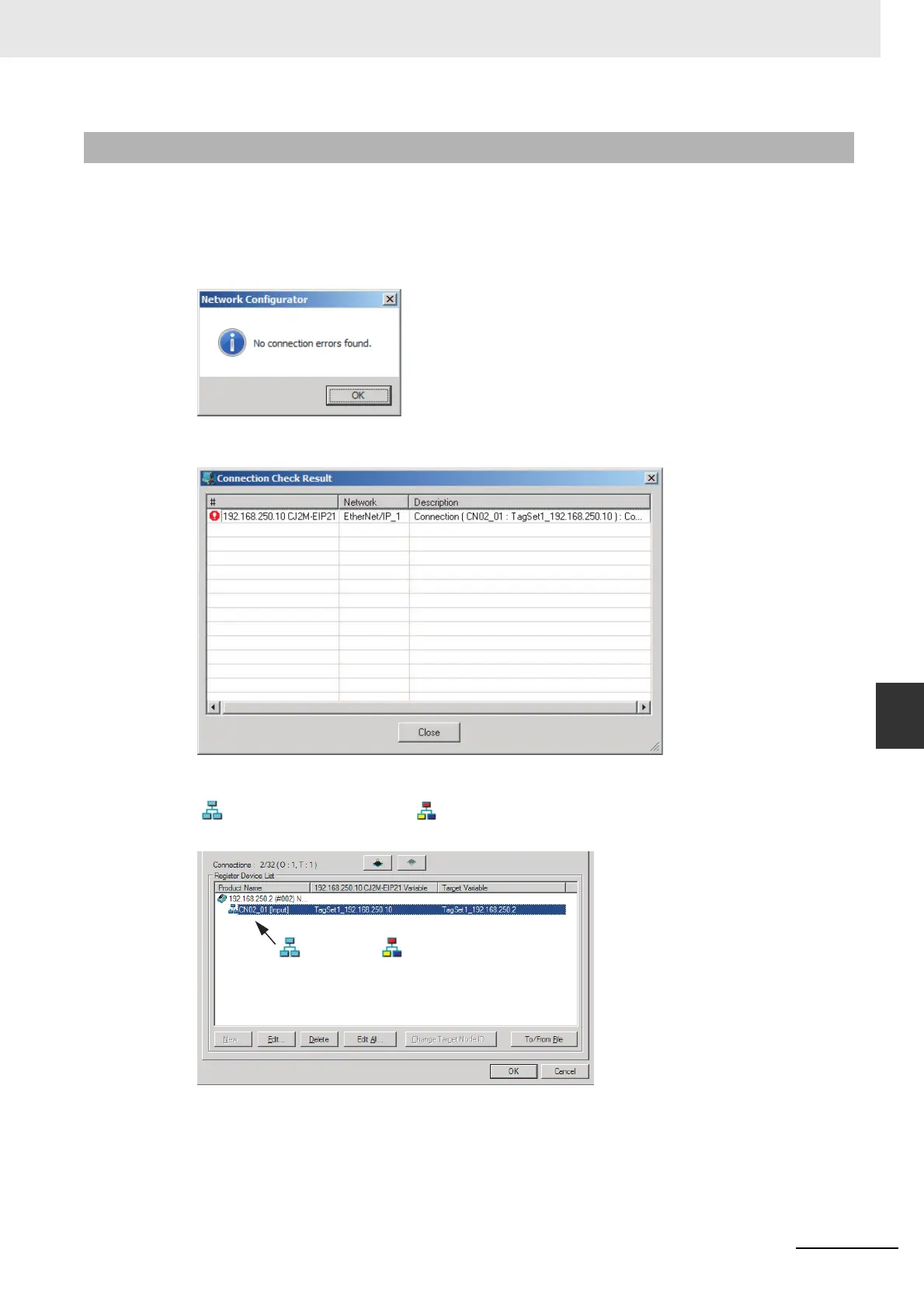

7-2-16 Checking Connections
You can check the consistency of connection parameters for network configuration files with device
parameters that were set with the Network Configurator or device parameters uploaded from the net-
work.
1
Select Check Connection from the Network Menu.
The following dialog box is displayed if parameters are normal.
The following dialog box is displayed if there are parameter errors. Check the displayed details
and review the settings.
If an inconsistency is found, open the originator’s Edit Device Parameter Dialog Box and click
the Connection Tab. The inconsistent connection in the Register Device List is displayed with a
icon (instead of the normal icon).To change the connection setting and select a different
target variable, select the connection as shown below and click the Edit Button.
7-2-16 Checking Connections
To Next Page
