5 Sysmac Studio Settings for the Built-in EtherNet/IP Port
5-2
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

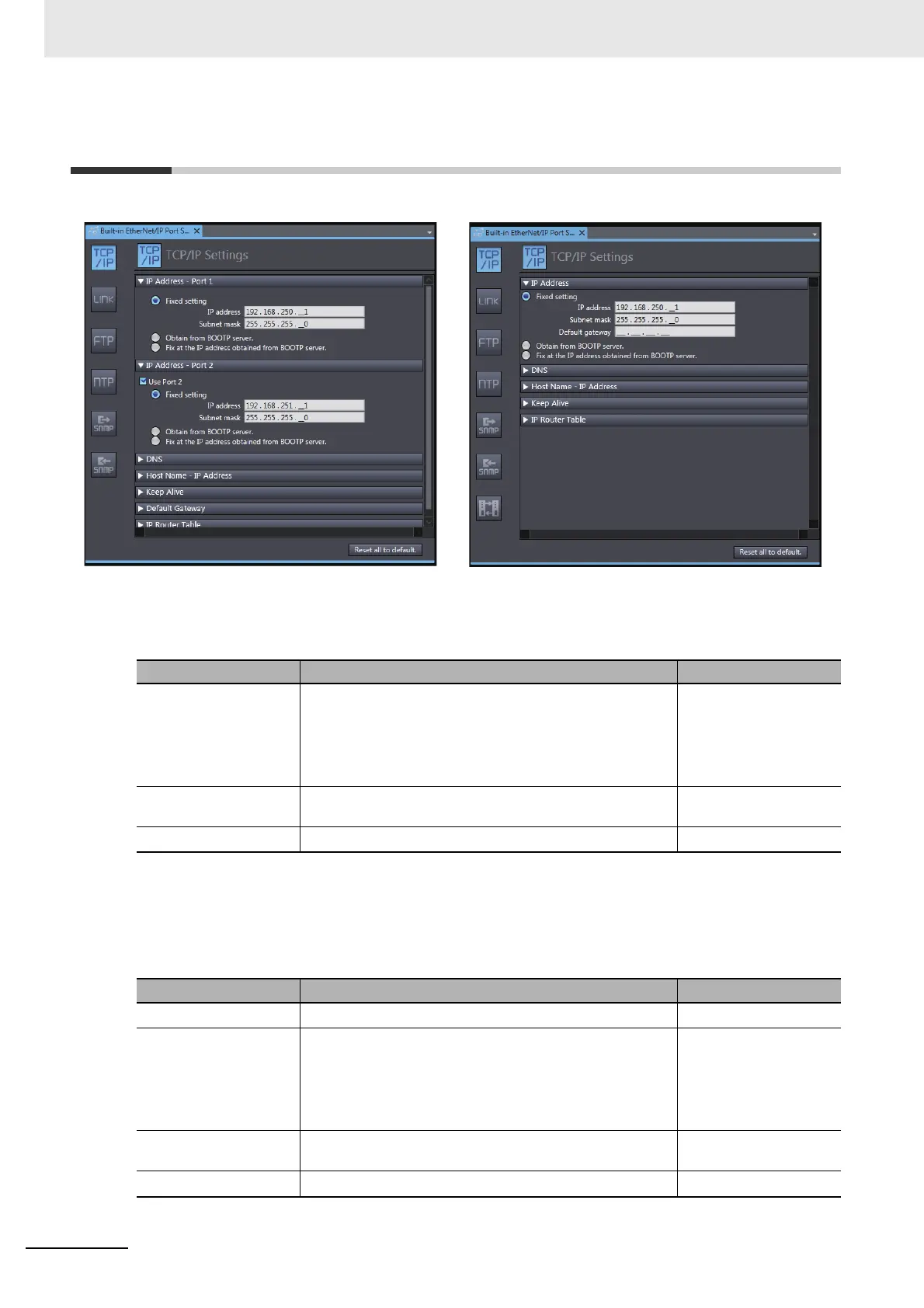

5-1 TCP/IP Settings Display
 IP Address - Port 1 (NX-series CPU Unit)
Set IP addresses for built-in EtherNet/IP port 1.
*1 These settings are required if you set IP address setting method to Fixed setting.
*2 Refer to 4-2 Built-in EtherNet/IP Port IP Address Settings for details on setting IP addresses.
 IP Address - Port 2 (only with the NX701 CPU Unit)
Set IP addresses for built-in built-in EtherNet/IP port 2.
*1 These settings are required if you set IP address setting method to Fixed setting.
NX-series CPU Unit NJ-series CPU Unit
Setting Description Default
IP address setting
method
Select one of the following IP address setting methods for
the built-in EtherNet/IP port 1.
• Fixed setting
• Obtain from BOOTP server.
• Fix at the IP address obtained from BOOTP server.
Fixed setting
IP address
*2
Set the IP address for the built-in EtherNet/IP port 1.
*3
Built-in EtherNet/IP port
1: 192.168.250.1
Subnet mask
*2
Set the subnet mask for the built-in EtherNet/IP port 1. 255.255.255.0
Setting Description Default
Use Port 2
Select the check box to use the built-in EtherNet/IP port 2.
Selected (use)
IP address setting
method
Select one of the following IP address setting methods for
the built-in EtherNet/IP port 2.
• Fixed setting
• Obtain from BOOTP server.
• Fix at the IP address obtained from BOOTP server.
Fixed setting
IP address
*2
Set the IP address for the built-in EtherNet/IP port 2.
*3
Built-in EtherNet/IP port
2: 192.168.251.1
Subnet mask
*2
Set the subnet mask for the built-in EtherNet/IP port 2. 255.255.255.0
