4-9
4 Determining IP Addresses
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
4-2 Built-in EtherNet/IP Port IP Address Settings
4
4-2-3 Online Connection
Connect the Sysmac Studio online to the CPU Unit.

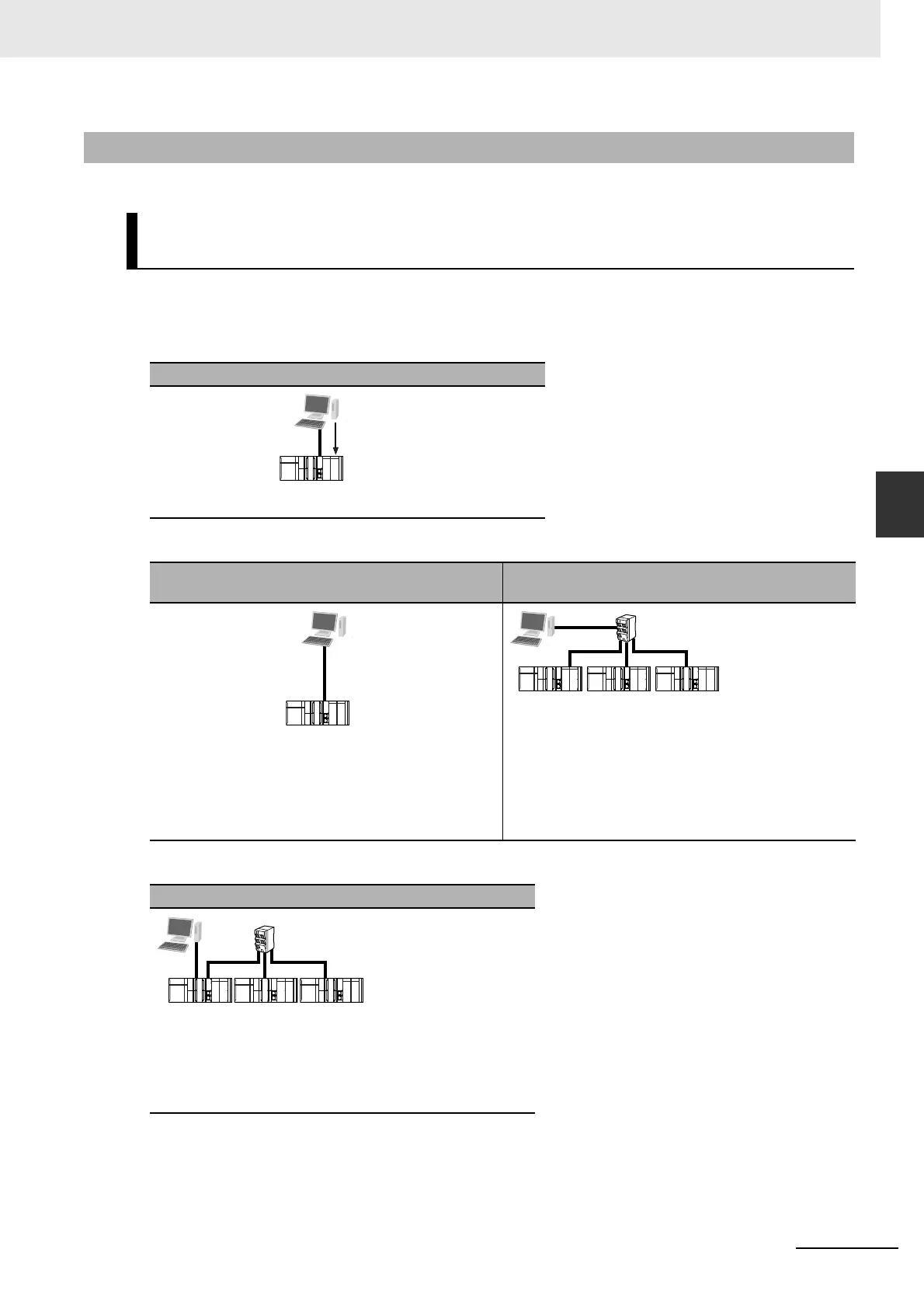

The CPU Unit and the computer that runs Sysmac Studio are connected as shown below via USB or
Ethernet:
USB Connection
Ethernet Connection
Connection from USB Across Ethernet
4-2-3 Online Connection
Types of Connections between the CPU Unit and Computer That
Runs the Sysmac Studio
Direct Connection via USB
Note USB connection is not possible for an NX1P2 CPU Unit.
Direct Connection via Ethernet (1:1 Connection
with AutoIP)
Ethernet Connection via Hub (1: N Connection)
Note 1 An Ethernet switch is not necessarily required.
2 You can use a straight or cross Ethernet cable
to connect.
3 With an NX701 CPU Unit, 1:1 connection is
possible only on the built-in EtherNet/IP port 1.
Note An Ethernet switch is required to connect. Refer
to 2-1-4 Precautions for Ethernet Switch Selec-
tion for details.
Remote Connection via USB (1:N Connection)
Note 1 An NJ/NX-series Controller with a USB port is
required to connect.
2 An Ethernet switch is required to connect. Refer to
2-1-4 Precautions for Ethernet Switch Selection for
details.
USB connection
Sysmac Studio
Ethernet
To Next Page
