7 Tag Data Link Functions
7-72
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
You can save device parameters set in the Network Configurator or device parameters uploaded from
the network in a network configuration file.
1

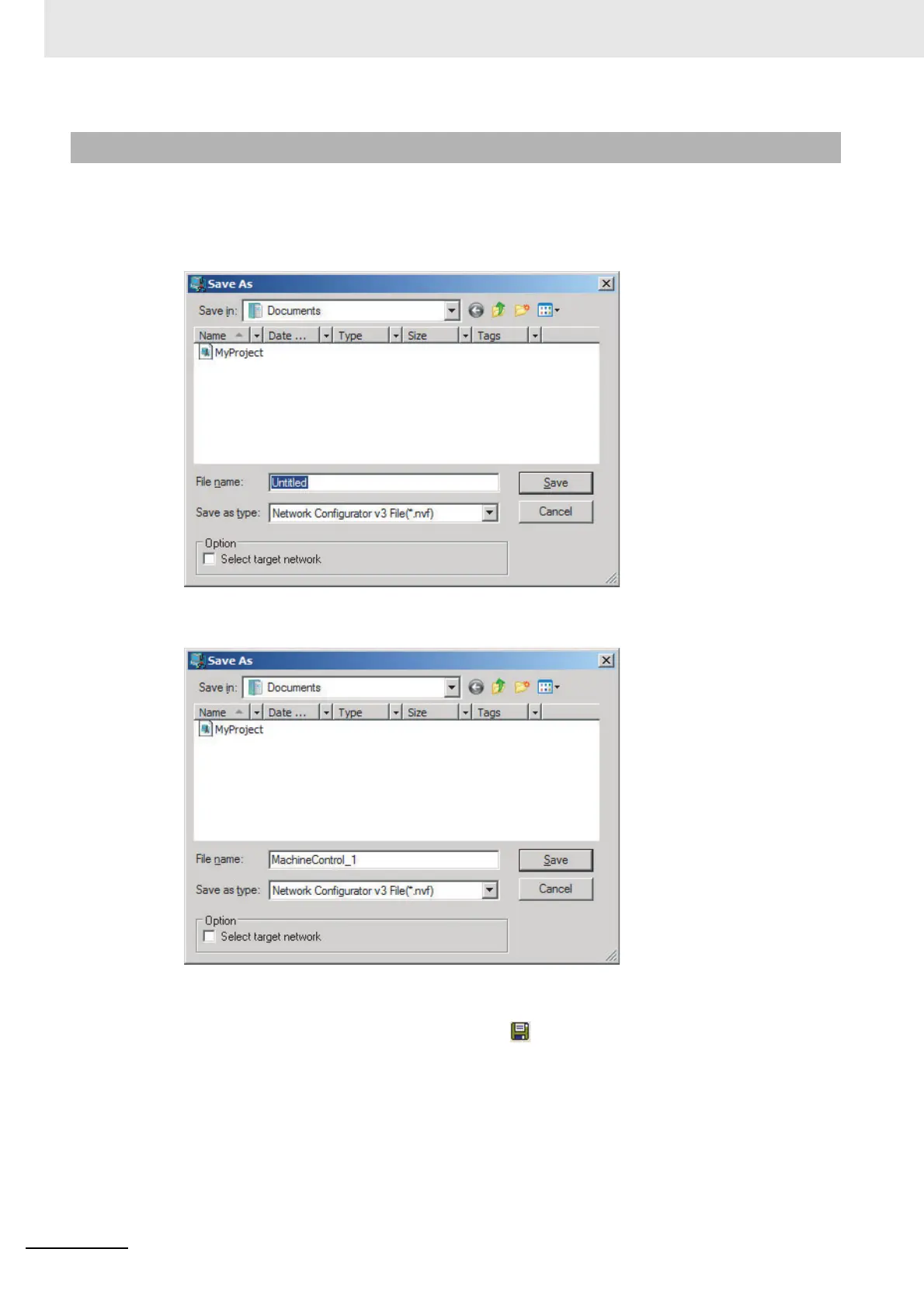

Select File - Save As.
The following dialog box is displayed.
Untitled.nvf is displayed as the default file name.
2
Input the file name, and then click the Save Button.
This completes the network configuration file save operation.
3
When the network configuration is changed later, you can overwrite the existing network config-
uration file if you select File - Save or click the Button.
4
You can select the Select target network Check Box in the Option Area to save a network con-
figuration file with only the required networks.
7-2-14 Saving the Network Configuration File
