A-27
Appendices
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
A-2 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-2-4 Making the EtherNet/IP Connection Settings with the
Sysmac Studio

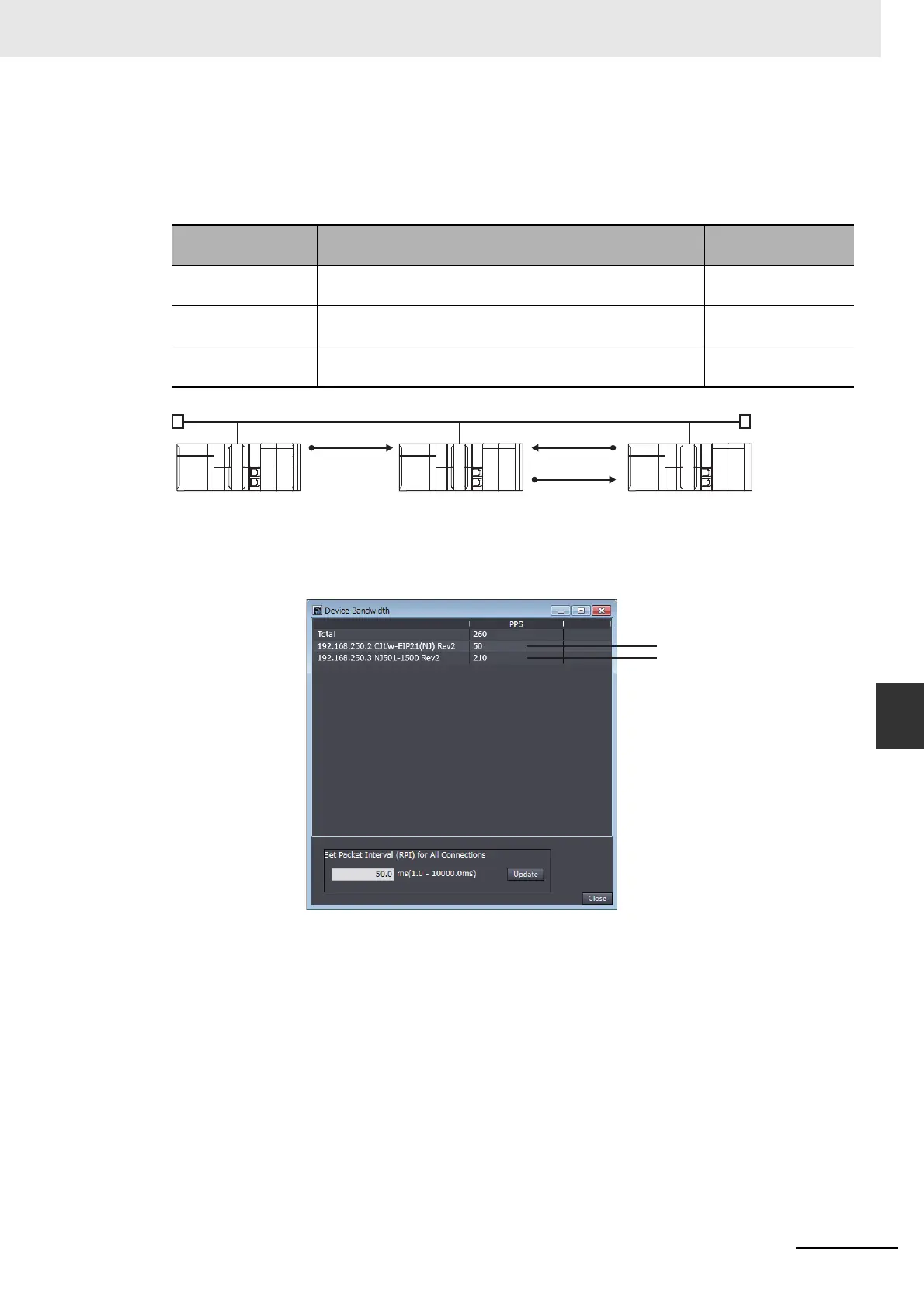

Calculation Example for Bandwidth Used (PPS) for Each Device by the
EtherNet/IP Connections
Establishing following three EtherNet/IP connections between Controllers (1) to (3) in the Ether-
Net/IP network
Bandwidth used (PPS) for each EtherNet/IP device is as given below.
Connection type Relevant devices in the EtherNet/IP connections
Device bandwidth
usage (PPS)
Connection (1) NJ-series Controller 2 (target device)
to NJ-series Controller 1 (originator device)
50 pps
Connection (2) NJ-series Controller 1 (target device)
to NJ-series Controller 2 (originator device)
10 pps
Connection (3) NJ-series Controller 3 (target device)
to NJ-series Controller 1 (originator device)
210 pps
EtherNet/IP connection settings for Controller 1
NJ-series Controller 1
(192.168.250.1)
NJ-series Controller 2
(192.168.250.2)
NJ-series Controller 3
(192.168.250.3)
Connection (1)
EtherNet/IP network
Connection (3)
Connection (2)
Connection (1)
Connection (3)
