Omron VARISPEED F7 User Manual

6-40
6
In V/f control with PG the ASR adjusts the output frequency in order to eliminate the deviation between the
speed reference and the measured speed (PG feedback). Fig 6.42 shows the ASR structure for V/f control with
PG.

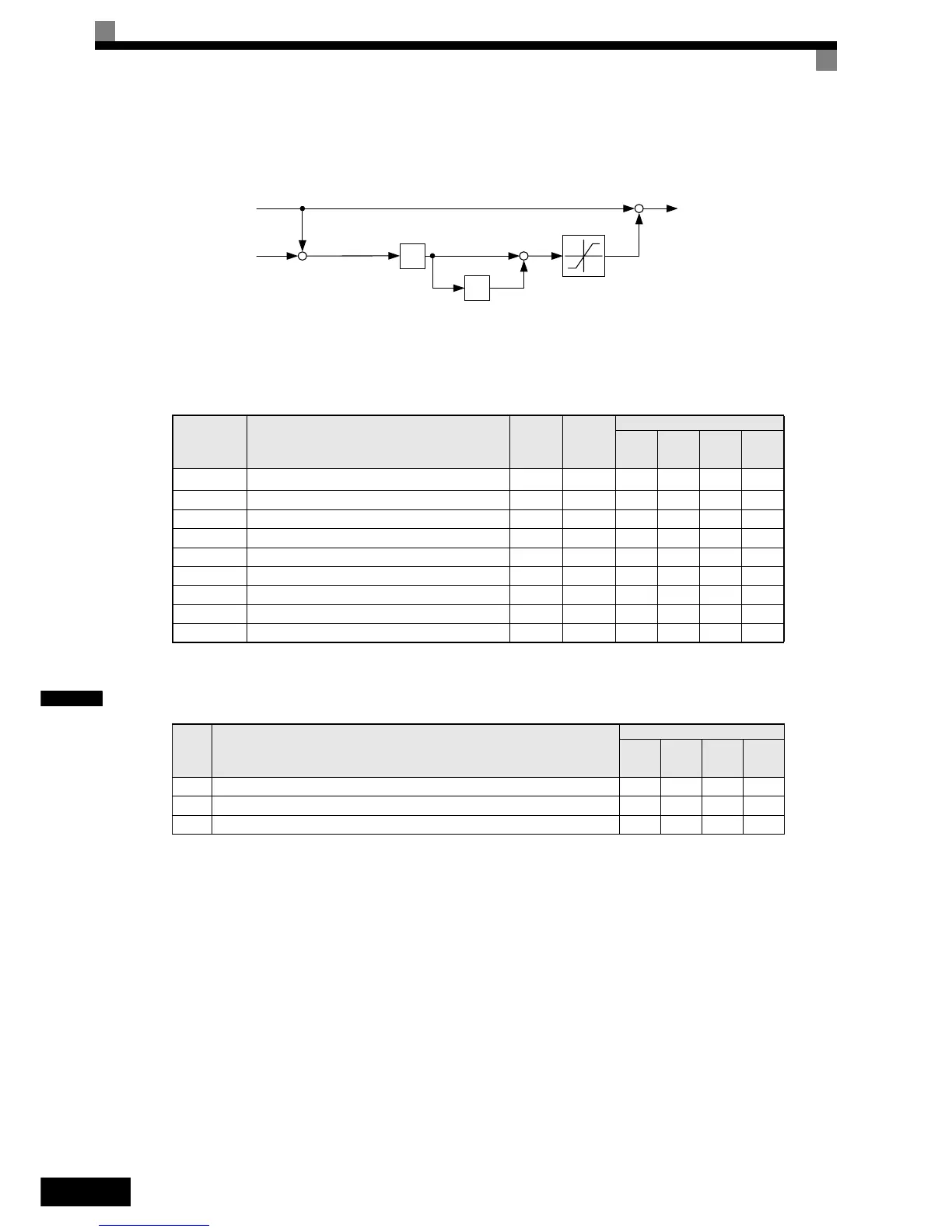

Fig 6.42 ASR Structure for V/f control with PG
Related Parameters
Multi-function Digital Inputs (H1-01 to H1-05)
V/f Control with/without PG Selection: “D”
• When one of the digital inputs is set to “D” this input can be used to switch over to normal V/f control and
thereby to disable the ASR.
• The ASR is disabled when the multifunction input is ON.
Speed Control Integral Disable: “E”
• When one of the digital inputs is set to “E” this input can be used to switch the speed control between PI
and P control.
• P control is active when the input is ON (Integral value is reset).
ASR Gain switching: “77”
• When one of the digital inputs is set to “77” this input can be used to switch between the ASR P gains set
in C5-01 and C5-03.
• If the input is enabled C5-03 will be used. If the input is disabled C5-01 will be used.
Parameter
No.
Name
Factory
Setting
Change
during
Opera-
tion
Control Methods
V/f
V/f with
PG
Open
Loop
Vector
Closed
Loop
Vector
C5-01 ASR proportional (P) gain 1
20.00
* 1
* 1. When the control method is changed, these values are reset to the factory settings for the selected control mode (V/f with PG control
mode factory settings are given).
Yes N o A No A
C5-02 ASR integral (I) time 1 0.500 s *1 Yes No A No A
C5-03 ASR proportional (P) gain 2 20.00 *1 Yes No A No A
C5-04 ASR integral (I) time 2 0.500 s *1 Yes No A No A
C5-05 ASR limit 5.0% No No A No No
C5-06 ASR delay time 0.004 s No No No No A
C5-07 ASR switching frequency 0.0 Hz No No No No A
C5-08 ASR integral limit 400% No No No No A
F1-07 Integral value during accel/decel enable/disable 0 No No A No No
Set
Value
Function
Control Methods
V/f
V/f
with
PG
Open
Loop
Vector
Closed
Loop
Vector
D V/f control with/without PG No Yes No No
E Speed control (ASR) integral disable No Yes No Yes
77 ASR proportional gain switch over No Yes No Yes
P
I
Frequency
Reference
Motor
Speed
+
-+
+
C5-01/03
C5-02/04
C5-05
ASR Limit
Output
Frequency
+
+
