2-22
2
îš„Wiring Method
Use the following procedure to connect wires to the terminal block.
1. Loosen the terminal screws with a thin-slot screwdriver.
2. Insert the wires from underneath the terminal block.
3. Tighten the terminal screws firmly

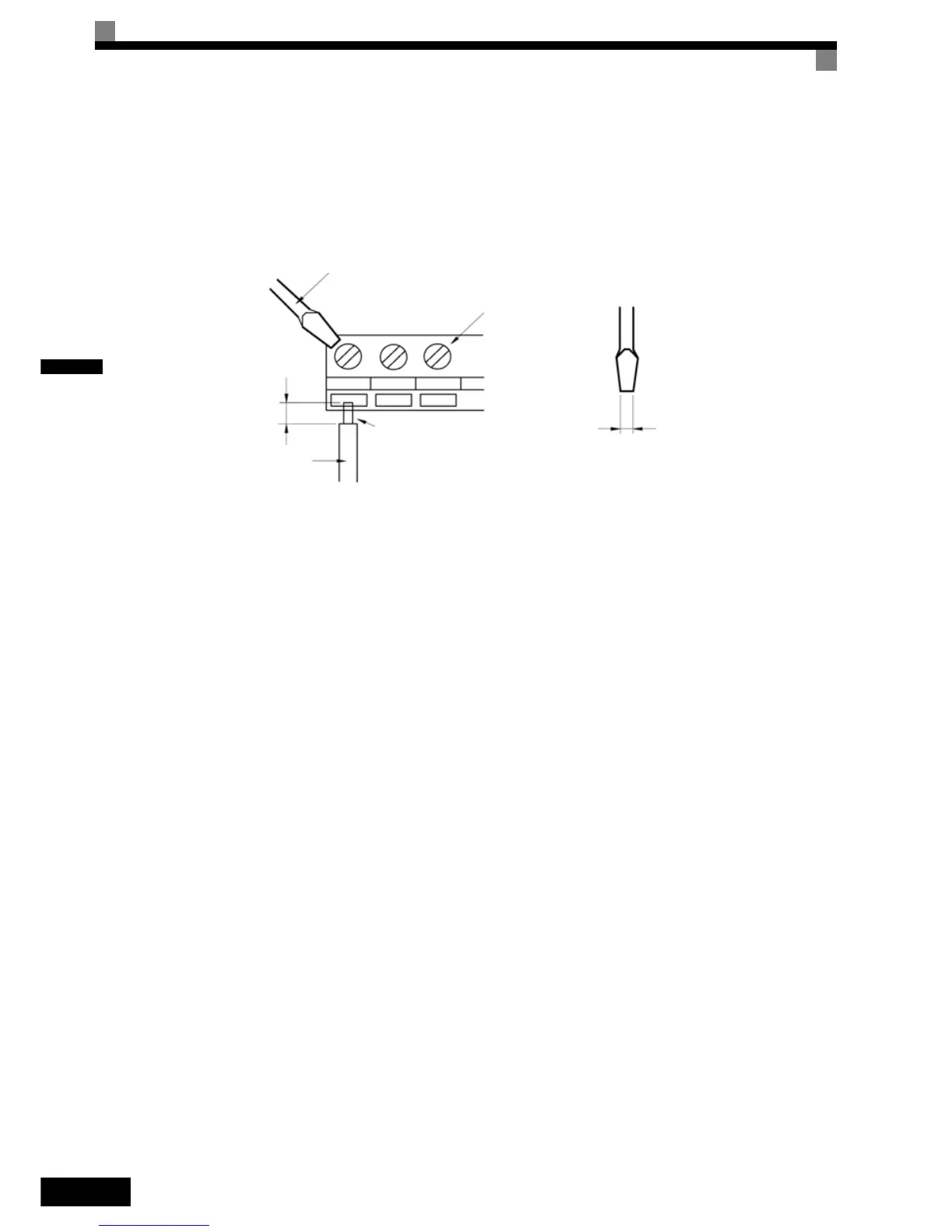

Fig 2.11 Connecting Wires to Terminal Block
Screwdriver
Strip the end for
7 mm if no solder-
less terminal is
used.
Blade of screwdriver
Wires
3.5 mm max.
Blade thickness: 0.6 mm max.
Solderless terminal or wire
without soldering
Control circuit
terminal block
To Next Page
