2-14
2
îš‹ Standard Connection Diagrams
Standard Inverter connection diagrams are shown in Fig 2.5. These are the same for both 200 V Class and
400 V Class Inverters. The connections depend on the Inverter capacity.
The control power is supplied internally from the DC bus in all inverter models.

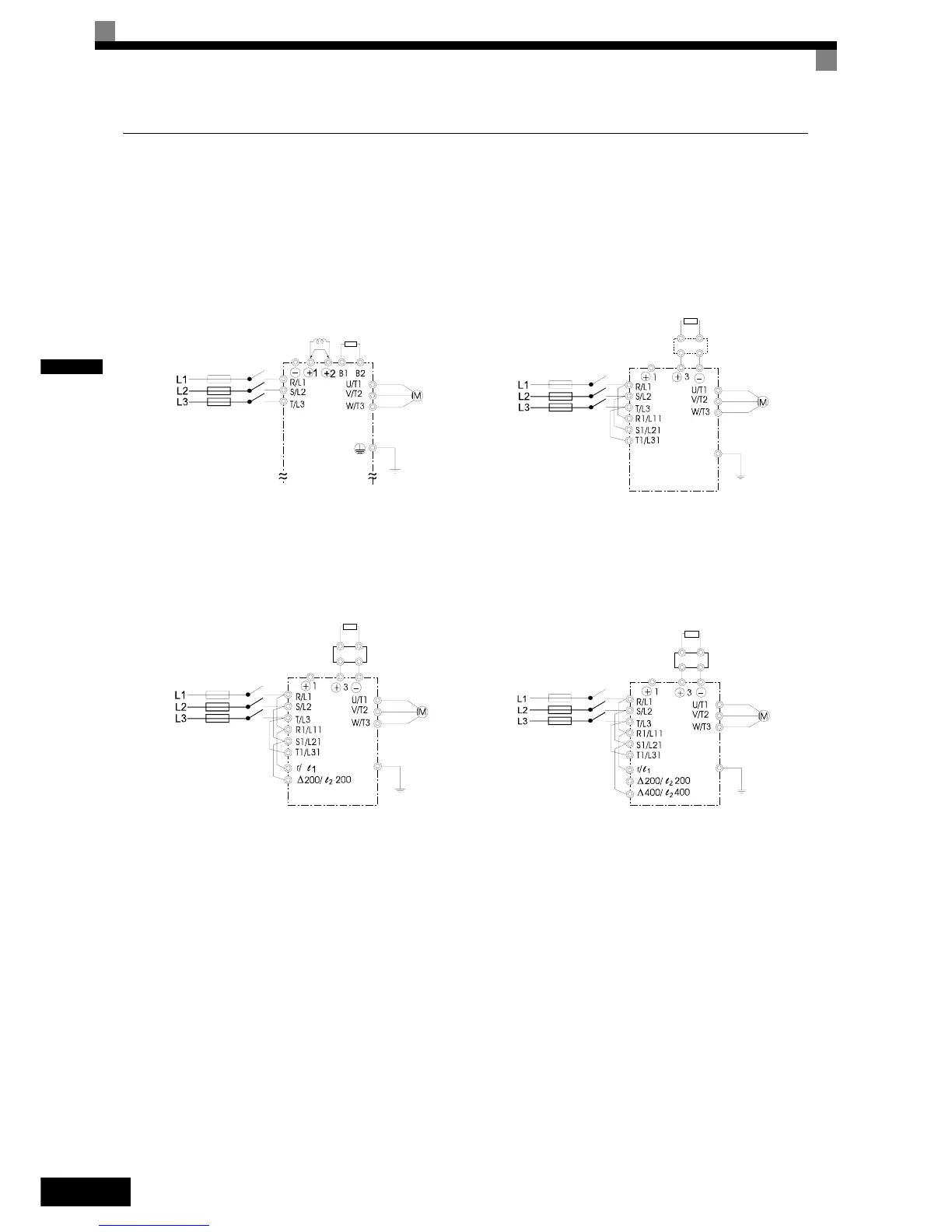

Fig 2.5 Main Circuit Terminal Connections
îš„CIMR-F7Z20P4 to 2018 and 40P4 to
4018
Be sure to remove the short-circuit bar before connecting the DC
reactor.
îš„CIMR-F7Z2022, 2030, and 4022 to 4055
The DC reactor is built in.
îš„CIMR-F7Z2037 to 2110 îš„CIMR-F7Z4075 to 4300
DC reactor
(optional)
3-phase 200
VAC (400 VAC)
Braking Resistor
Unit (optional)
Braking Unit (op-
tional)
Braking Resistor
Unit (optional)
3-phase 200 VAC
(400 VAC)
3-phase
200 VAC
Braking Unit (op-
tional)
Braking Resistor
Unit (optional)
3-phase
400 VAC
Braking Unit (op-
tional)
Braking Resistor
Unit (optional)
To Next Page
