 Verify Mode
The Verify mode is used to display any parameters that have been changed from their default settings in a pro-
gramming mode or by autotuning. If no parameter setting has been changed the display will show “None
Modified”
In Verify Mode the same procedures as in the Programming Mode can be used to change parameter settings.
The parameter A1-02 is the only parameter from the A1- group, which will be displayed in Verify Mode,
the other A1- Parameters will not be displayed as changed parameters.
Example Operations
In the example below the following settings have been changed from their default settings:
• b1-01 (Reference Selection)
• C1-01 (Acceleration Time 1)
• E1-01 (Input Voltage Setting)
• E2-01 (Motor Rated Current).

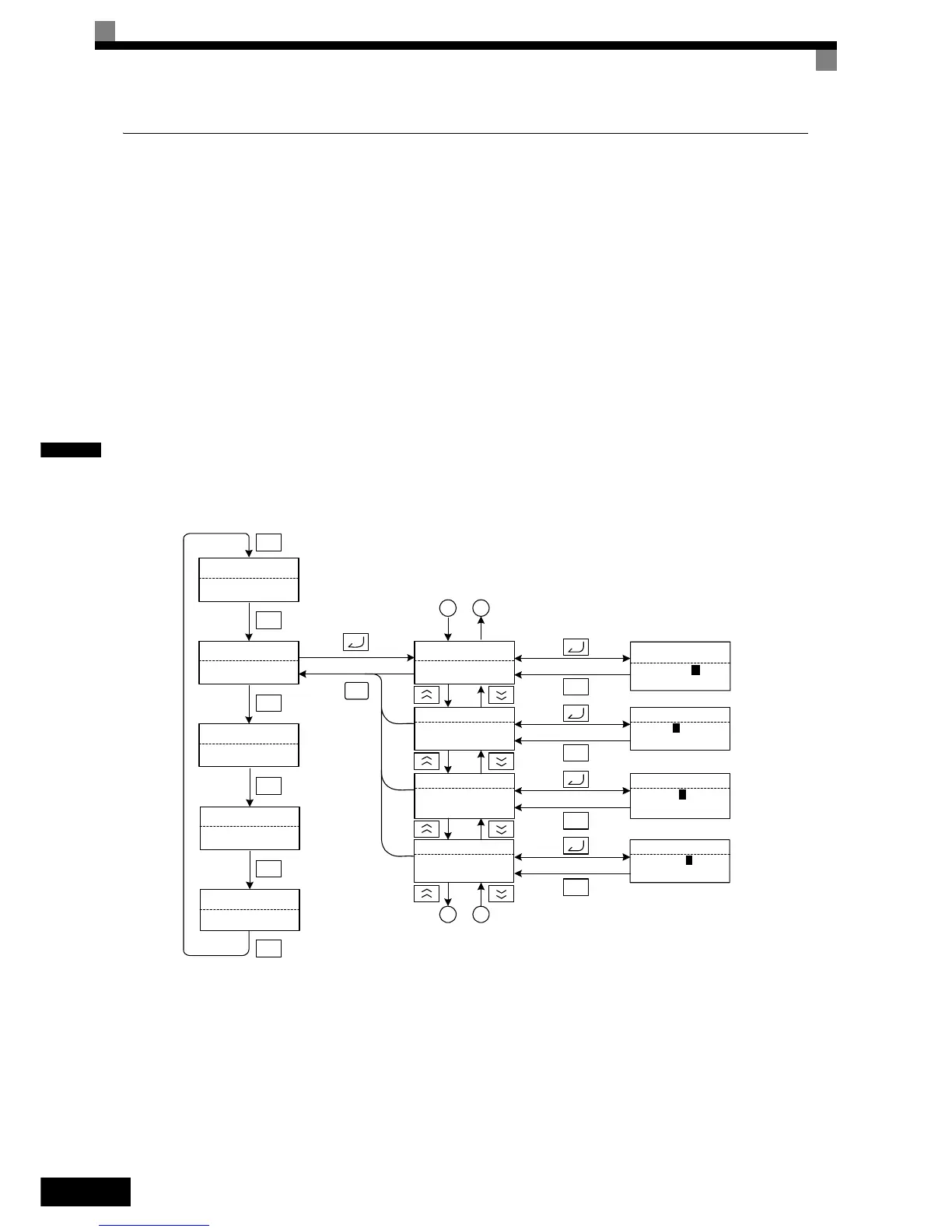

Fig 3.7 Operations in Verify Mode
** Main Menu **
-DRIVE-
Operation
** Main Menu **
-QUICK-
Quick Setting
** Main Menu **
-ADV-
Programming
** Main Menu **
-VERIFY-
Modified Consts
** Main Menu **
-A.TUNE-
Auto-Tuning
Monitor Display Setting DisplayMode Selection Display
Reference Source
-VERIFY-
b1-01=0 *0*
Terminals
ESC
Accel Time 1
-VERIFY-
C1-01=200.0sec
A B
A B
Reference Source
-VERIFY-
b1-01= 0 *0*
Terminals
Input Voltage
-VERIFY-
E1-01=190VAC
Motor Rated FLA
-VERIFY-
E2-01= 2.00A
Motor Rated FLA
-VERIFY-
E2-01= 2.00A
Input Voltage
-VERIFY-
E1-01= 190VAC
Accel Time 1
-VERIFY-
C1-01= 0
200.0sec
"1"
"1"
MENU
ESC
MENU
MENU
MENU
MENU
MENU
ESC
ESC
ESC
(0.0 ~ 6000.0)
"10.0sec"
(0.0 ~ 6000.0)
"10.0sec"
(155~255)
"200VAC"
(155~255)
"200VAC"
(0.32~6.40)
"1.90A"
(0.32~6.40)
"1.90A"
