Application Precautions

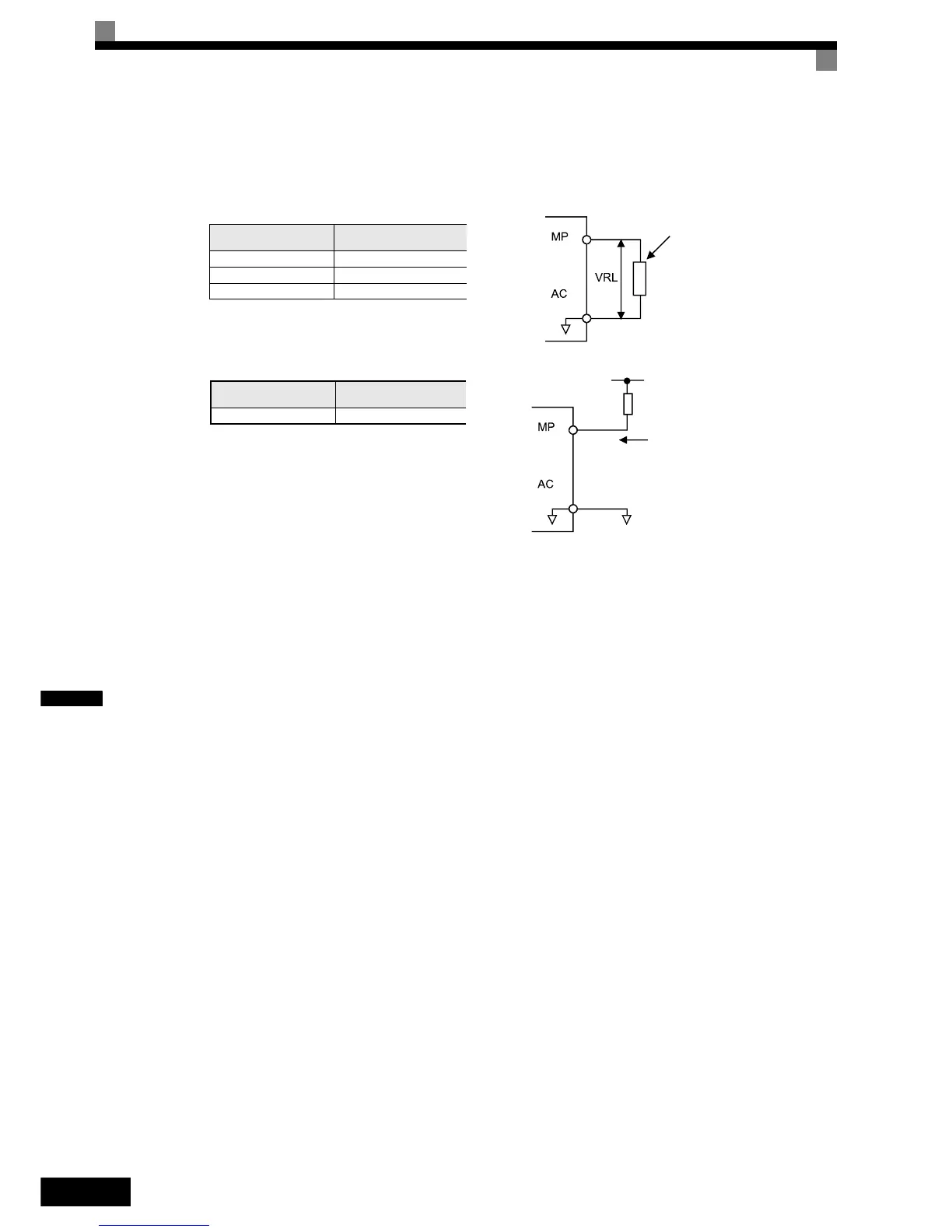

When using the pulse monitor output, connect a peripheral device according to the following load conditions.
If the load conditions are different, there is a risk of characteristic insufficiency or damage to the inverter.
Output Voltage (Isolated)
VRL (V)
Load Impedance
+5 V min. 1.5 kΩ min.
+8 V min. 3.5 kΩ min.
+10 V min. 10 kΩ min.
Load Impedance
External Power Supply
(V)
12 VDC±10%,
15 VDC±10%
Max. Current 16 mA
External power supply
Sinking current
Load impedance
