SOCT Copernicus PLUS - Service Manual

109

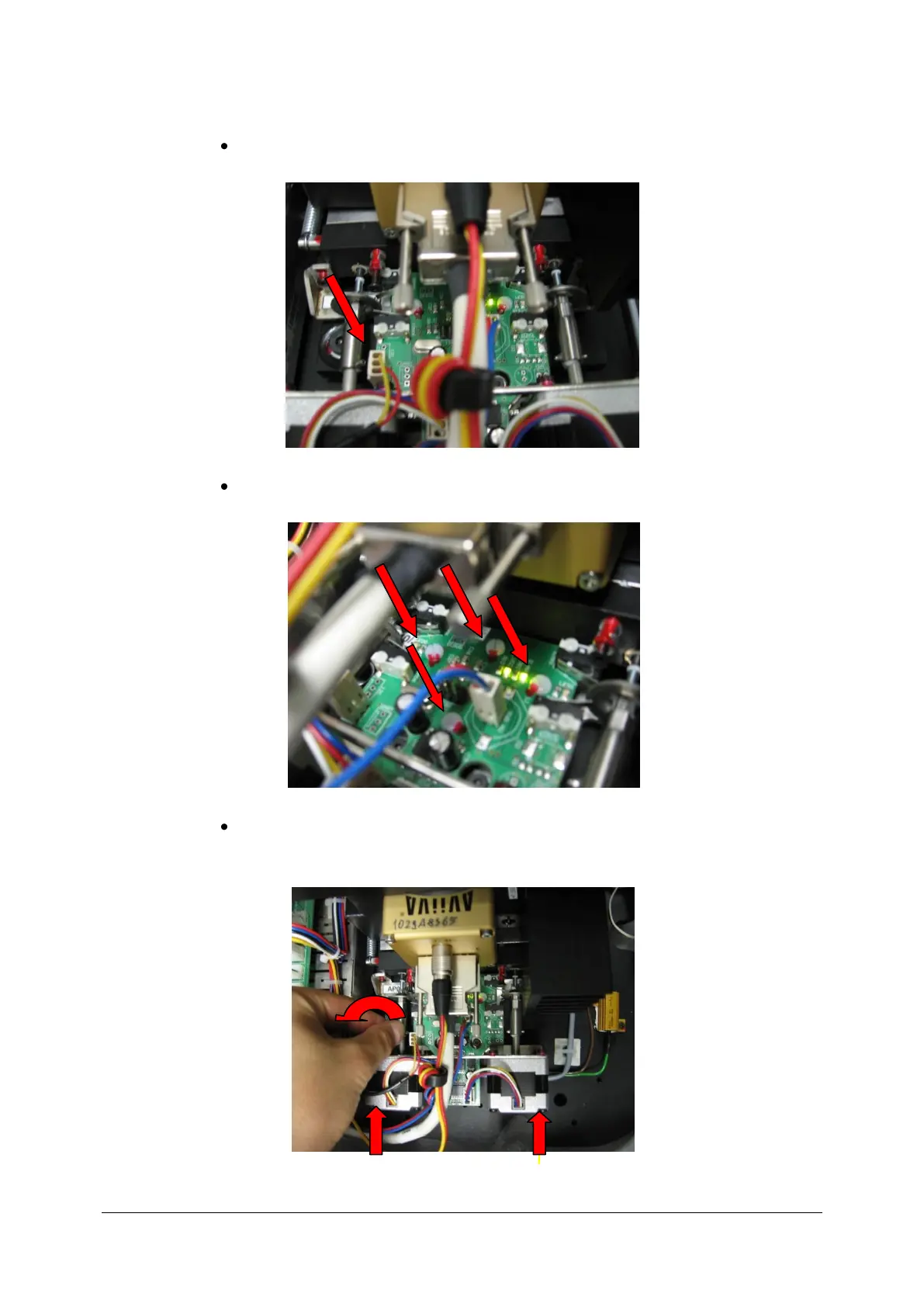

Detach plug from controller.

Unscrew 4 screws holding electronic board.

If extreme detectors plates interrupts taking board out – turn CCW

servomechanism engine to enlarge gap between plates and upper screws.
