SOCT Copernicus PLUS - Service Manual
11.4 Up-down movement engine
Tools needed to replace engine:
- hexagonal tools size: 2, 2.5
- magnetic holder
-tweezers

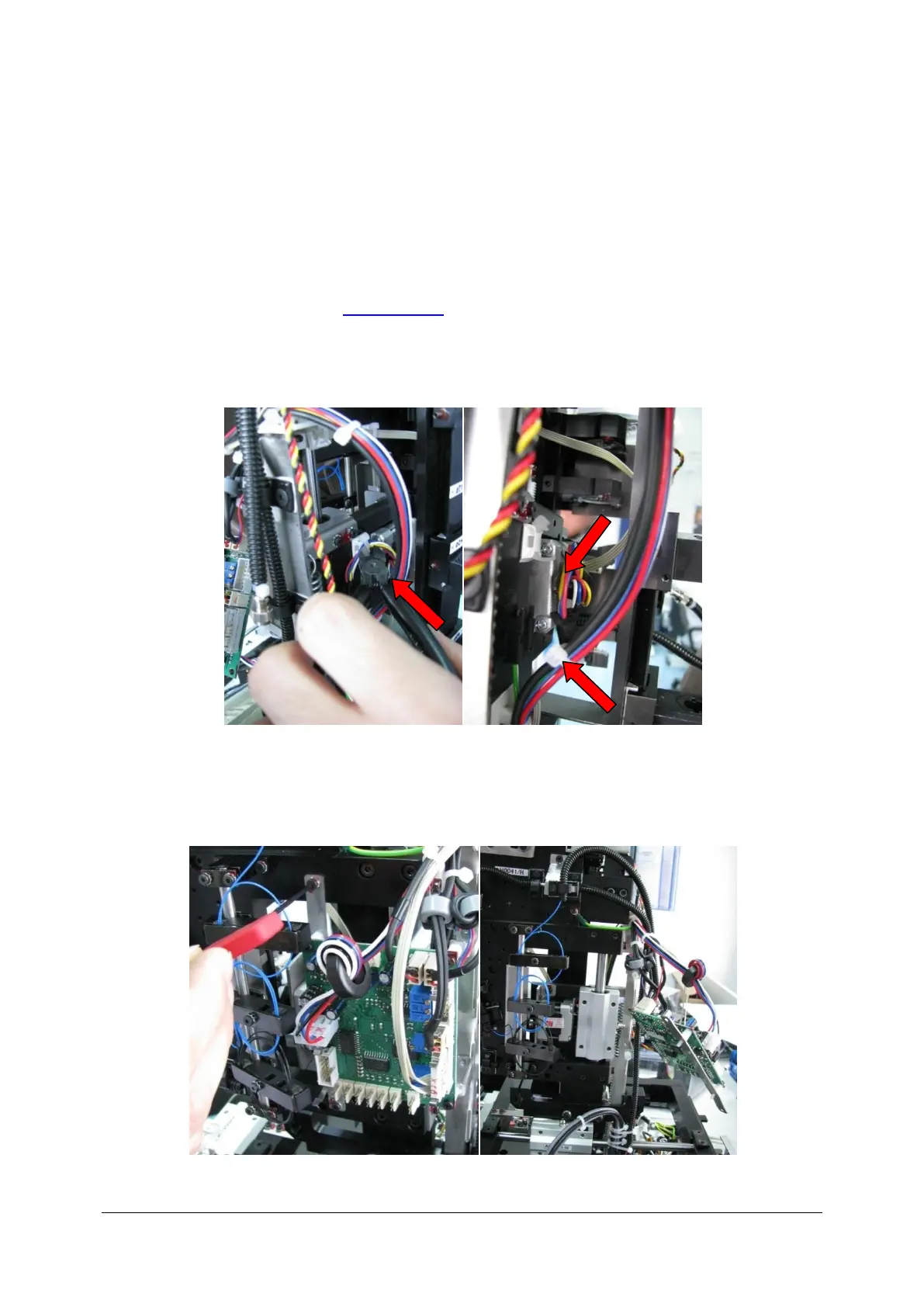

1. Turn off the device.
2. Open cover (see: Opening cover).
3. Make sure that during engine exchange, you won’t change position of.
4. Unplug engine’s plug and cut plastic tightening band.
5. Remove board 151-512.
6. Remove metal bar and bearing guard.
To Next Page
