SOCT Copernicus PLUS - Service Manual
110

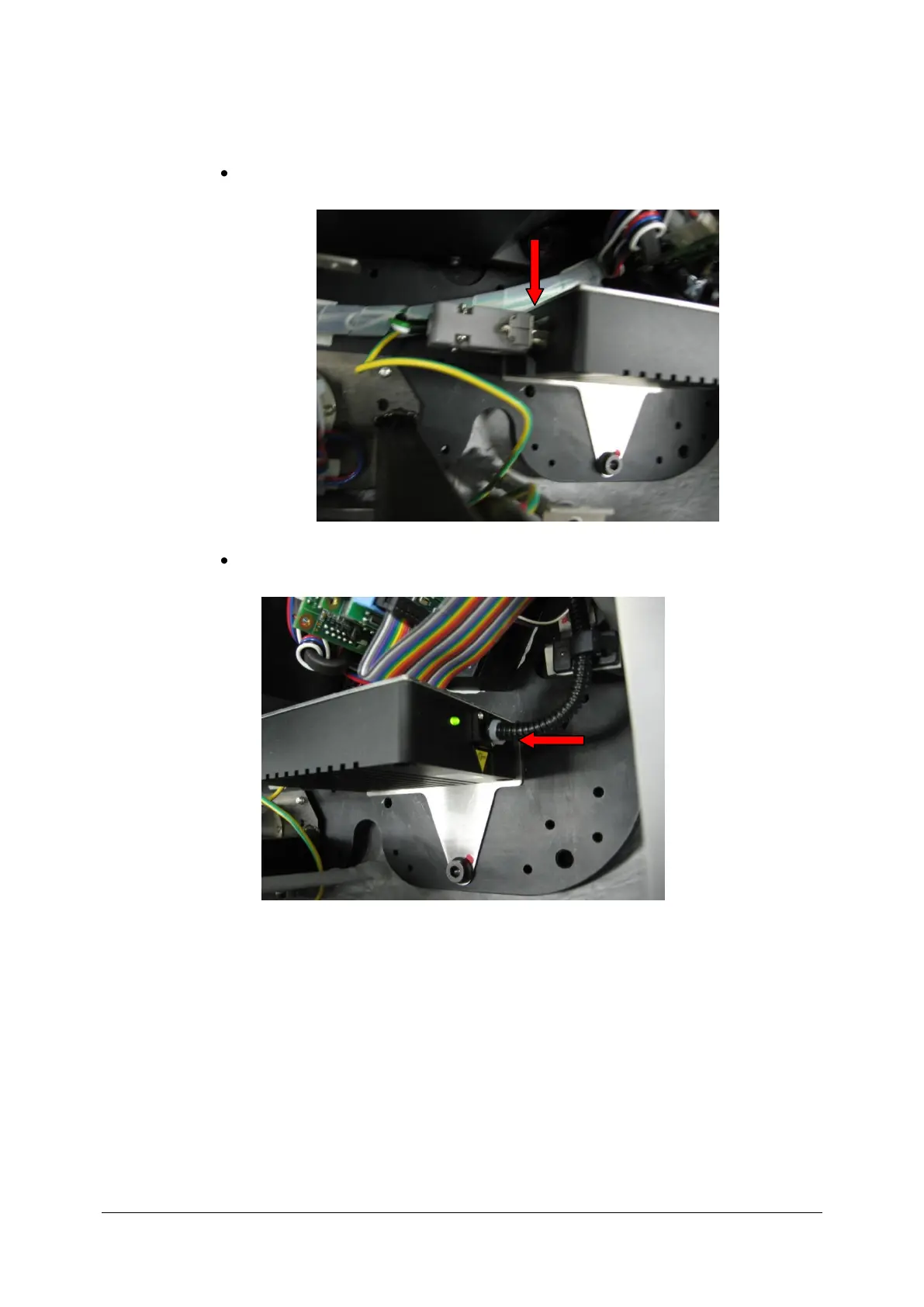

12.11 Checking SLED diode
Proper connection of SLED diode.
Proper SLED driver functioning is signalized by LED diodes shining green.
