SOCT Copernicus PLUS - Service Manual
11.3 Front-backward movement engine
Tools needed to replace engine:
- hexagonal tools size: 2, 2.5
- magnetic holder
-tweezers
-side cutters
-side cutters
1. Turn off the device.
2. Open the cover (see: Opening cover)

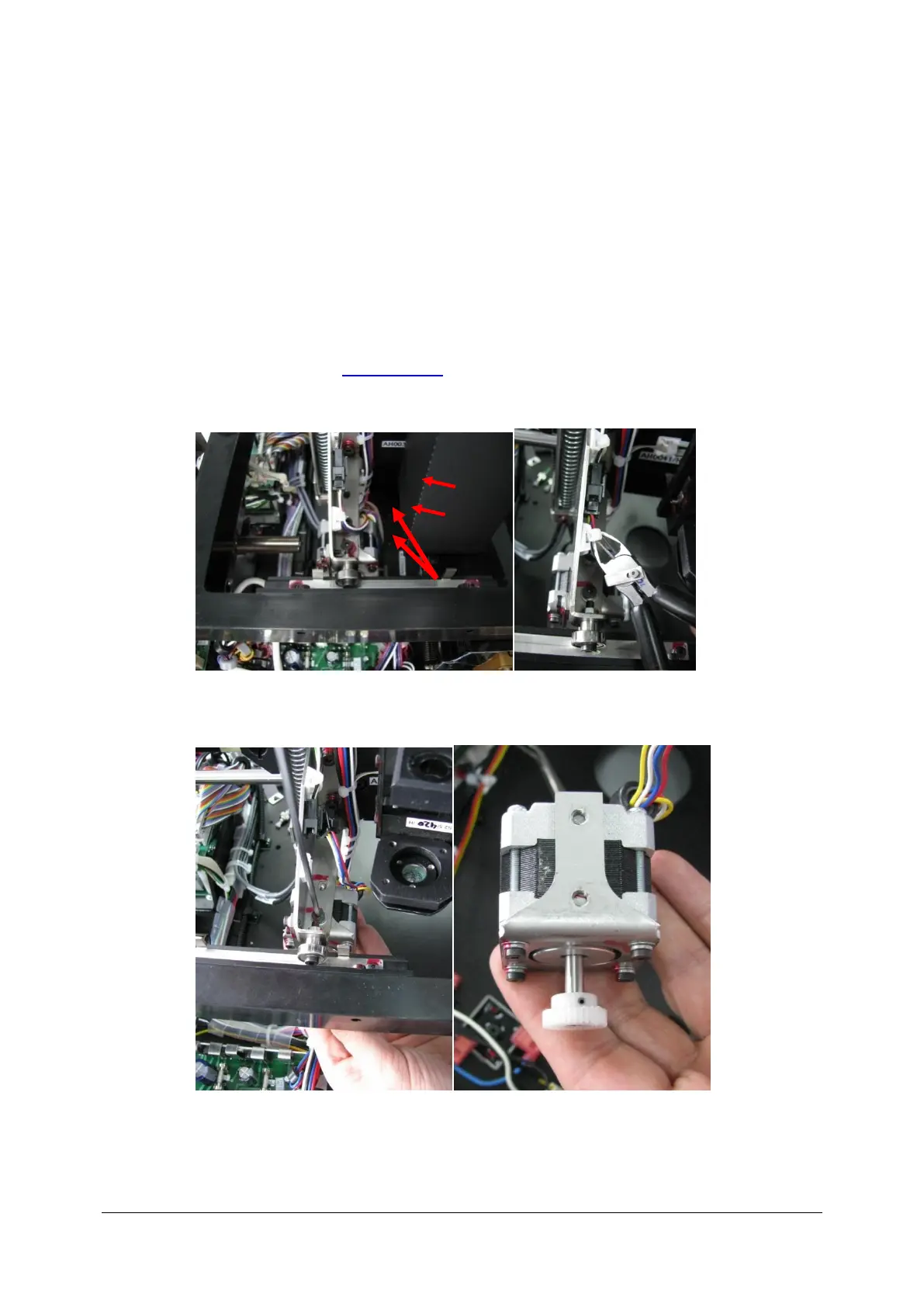

3. Unplug engine’s plug and cut plastic tightening band.
4. Unscrew 2 screws holding engine frame to its supporter and take out the engine.
