SOCT Copernicus PLUS - Service Manual
12.13 Exchanging CL Cables
In SOCT Copernicus PLUS unit, highly elastic CL cable should be used.
There are two CL cables in Copernicus PLUS.
Each cable is signed described- camera on unit’s side and Grabber on computer side.
Due o install cable clamps (cable clamp N-4), it’s required to set mounting point on the cable.

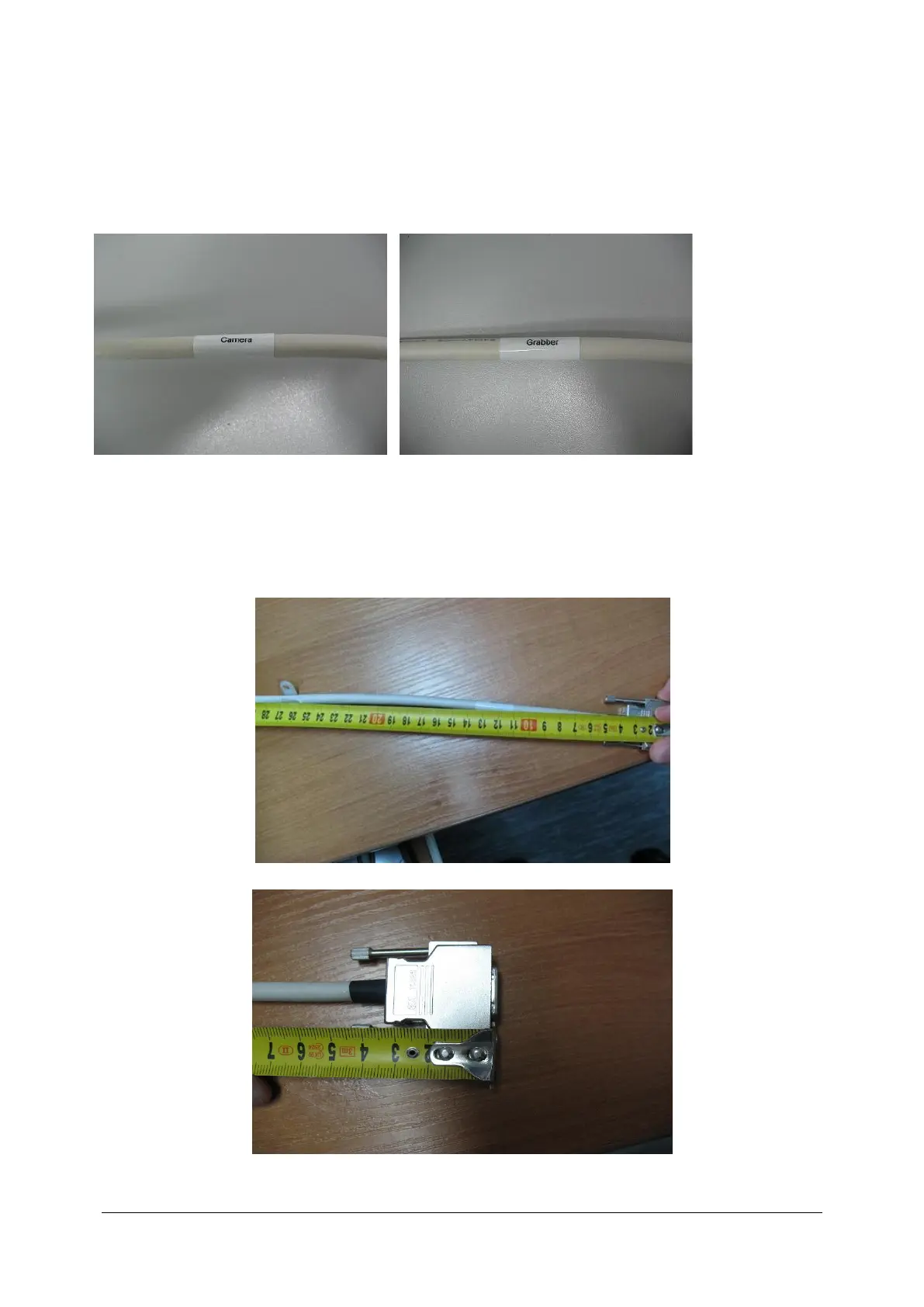

On cable measure 26 cm ± 0,5cm from the connector described as ‘Camera’ and assembly the clamp.
