SOCT Copernicus PLUS - Service Manual
101
12.7 Movement control board 151 – 517
Board 151-517 is complete engine movement control board in axis X,Y,Z
It’s slave type board controlled by the main controller board 151-506

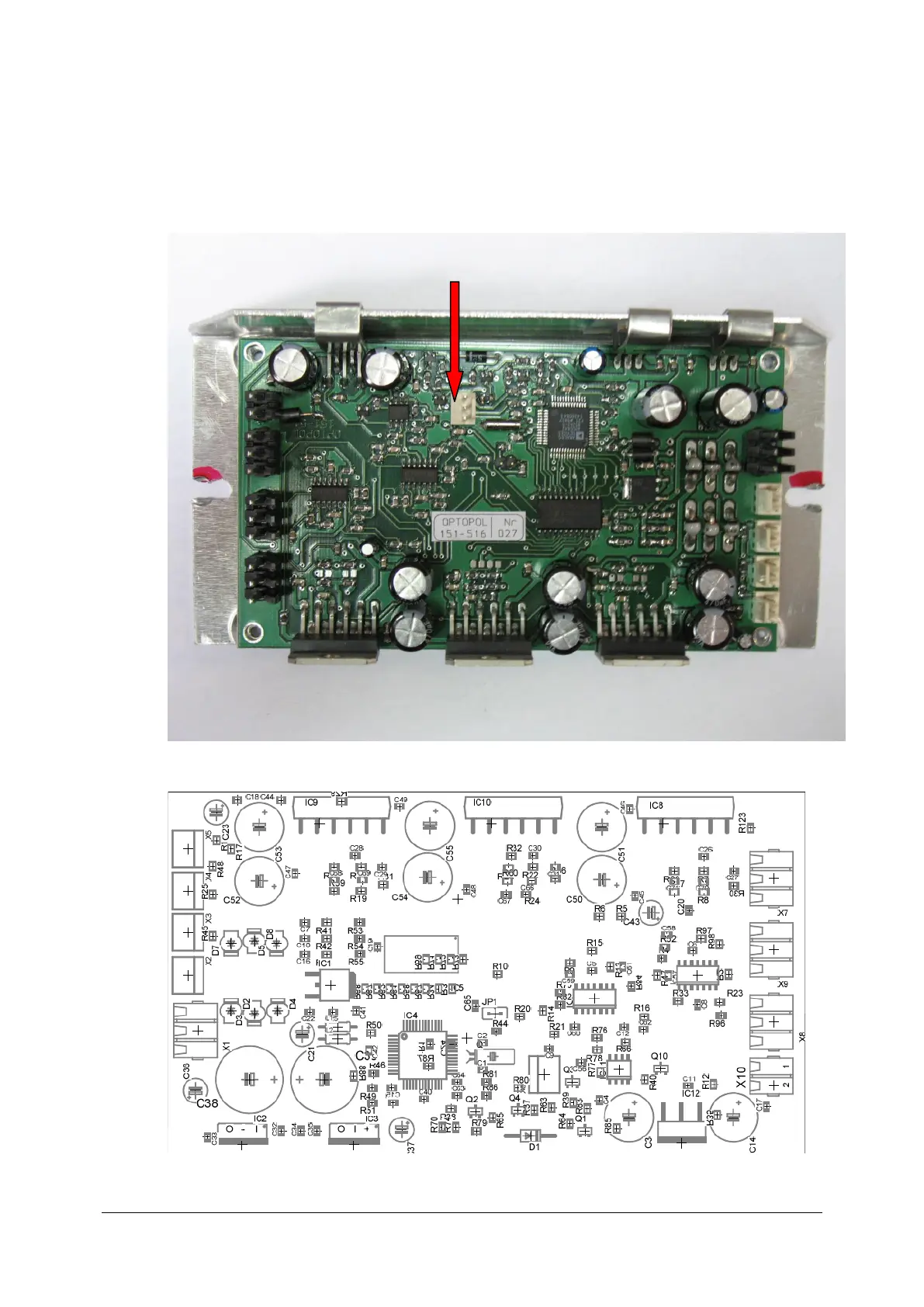

Pic 4 Placement of connectors on board 151-517
X10
X8
X9
X7
X1
X2
X3
X4
X5
X6
