Optopol SOCT Copernicus + - SLED Output Power and Attenuator Check

SOCT Copernicus PLUS - Service Manual
174

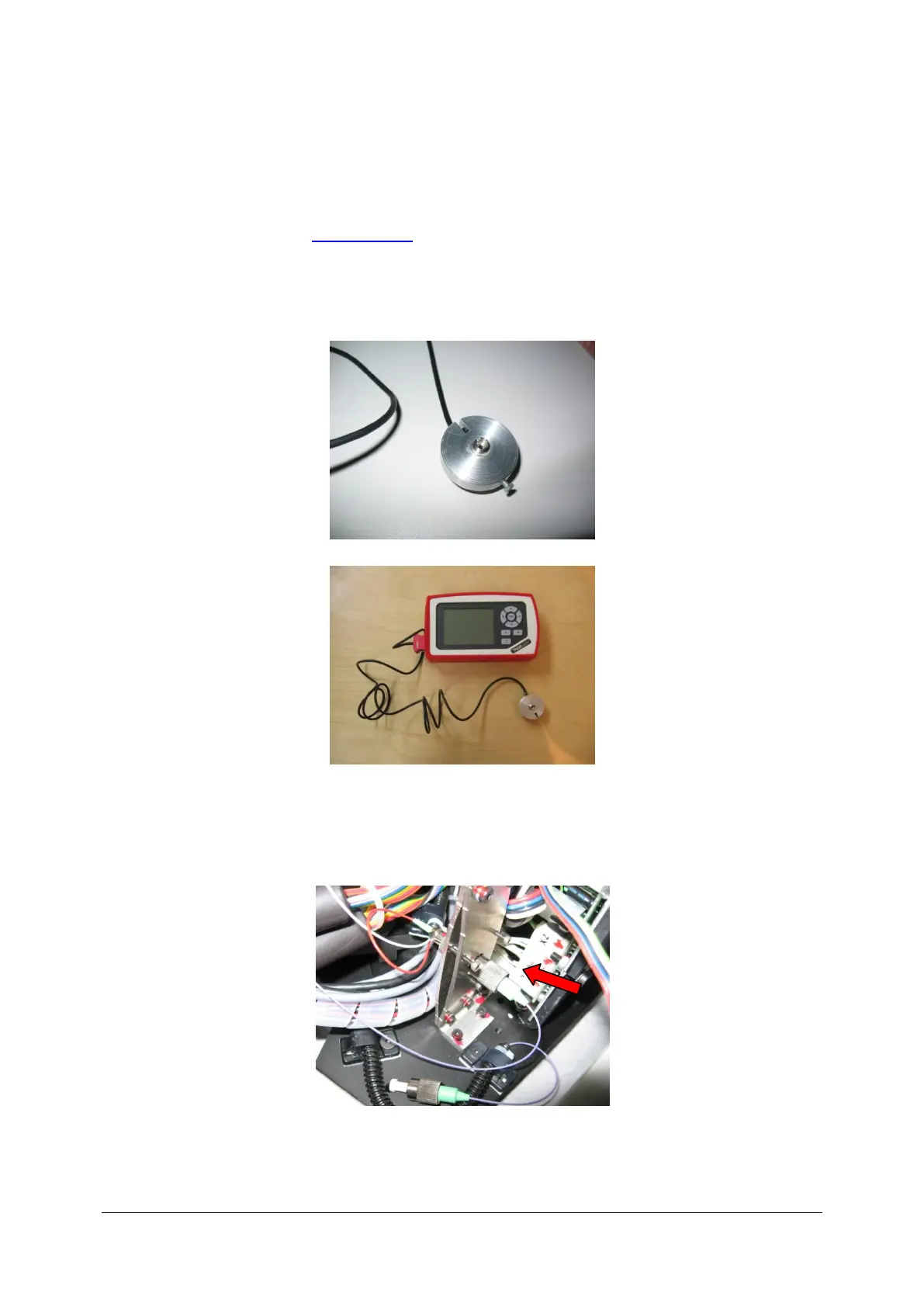

13.12 Checking of SLED output power, checking attenuator
Tools needed to do activities shown in this instruction: scantest program; Power meter .
1. Open the cover (see: Opening cover).
2. Equip power meter with detector for measuring output power from optic fibre.
3. Unscrew diode’s connector and attach detector of power meter.
