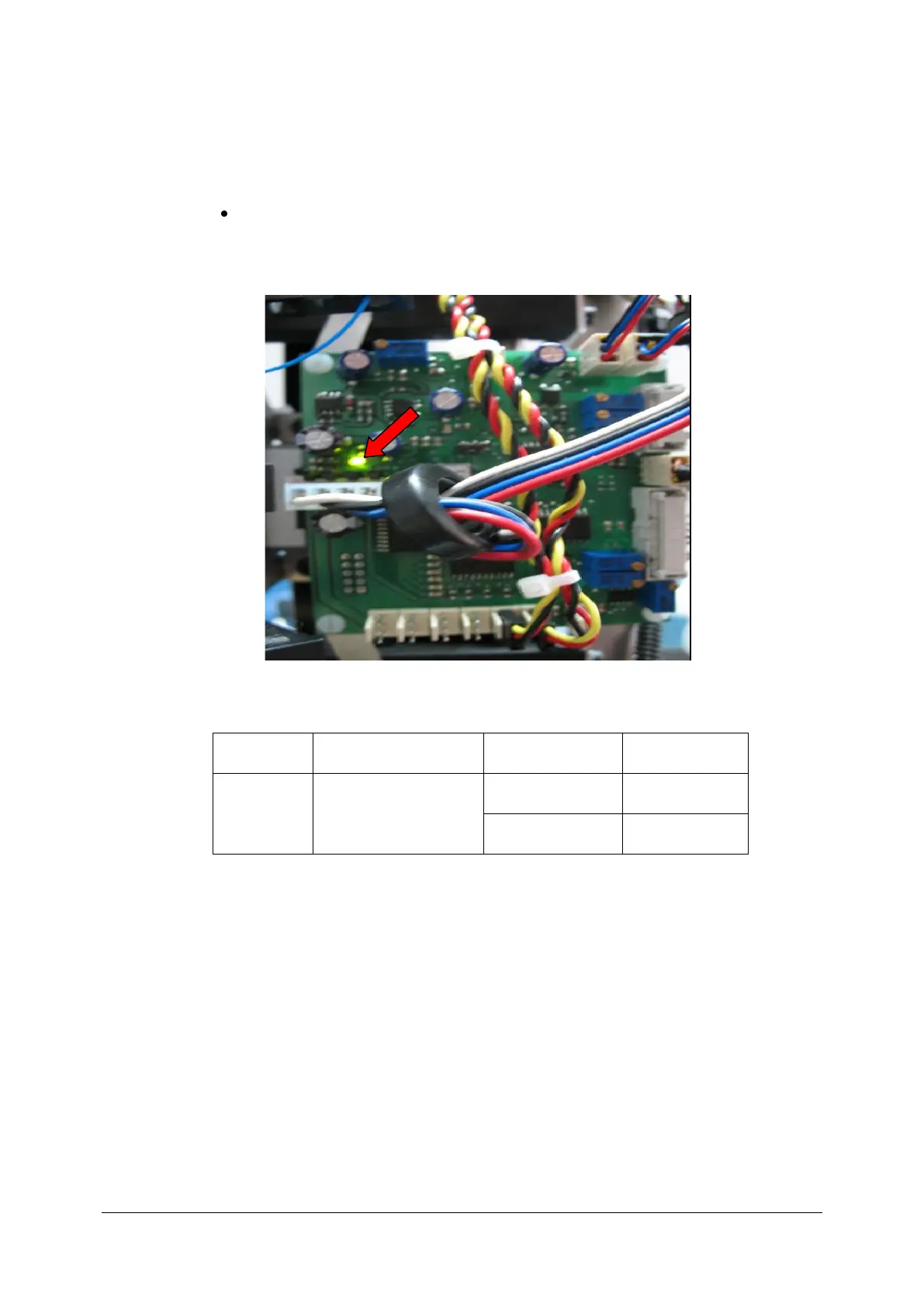

12.6.1 Control of feeding on board 151-512
After Turing on device, diode should light on board 151-512 informing of proper
board feeding.
Id diode LED1 stays off, check voltage on plug X1
Diode
Plug
Pins
Voltage DC
LED 1
X1
X1.1 – X1.2
11.7V – 12.1V
X1.4 – X1.3
4.85V – 5.1V
If voltage on X1 connector is proper, but still diode stays off, we qualify board 151-506 as broken,
and needs to be exchanged
1
4
J1
LED1
