SOCT Copernicus PLUS - Service Manual
13.13 Crossing the spectrometer.

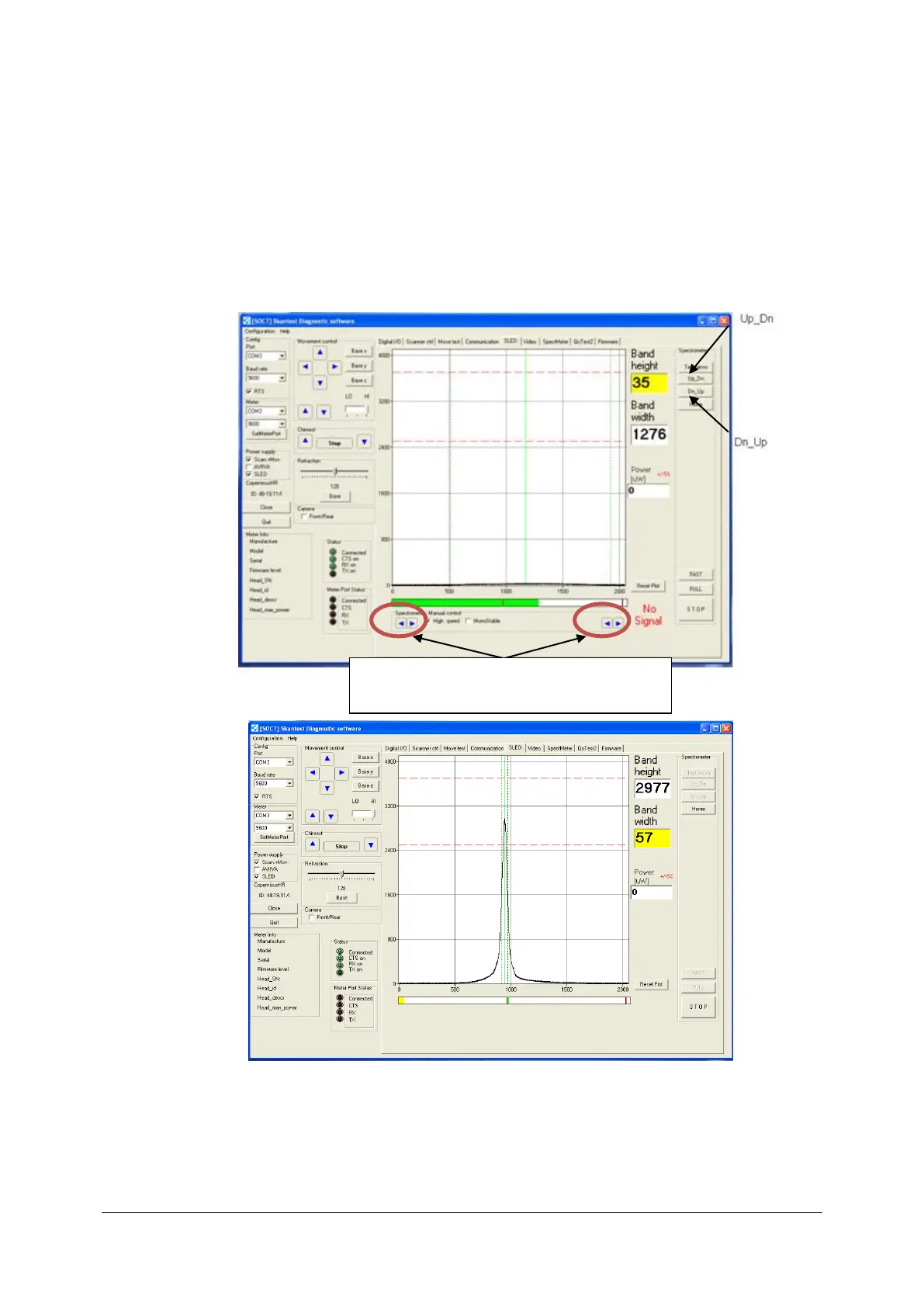

1. Turn on program skantest, run Scan + Mov and Sled then go to bookmark Sled. Use
function Up_Dn or Dn_Up. To Change camera trolley position and cross spectrometer.
To change the position of trolley you can also use spectrometer manual control for
left and right screw. To see (adjusting spectrometer step-by-step).
2. If peak is moved on right or left it is not incorrect. It is important that the spectrum
width cannot exceed 80.
Manual spectrometer adjustment for Left
and right screw
