SOCT Copernicus PLUS - Service Manual

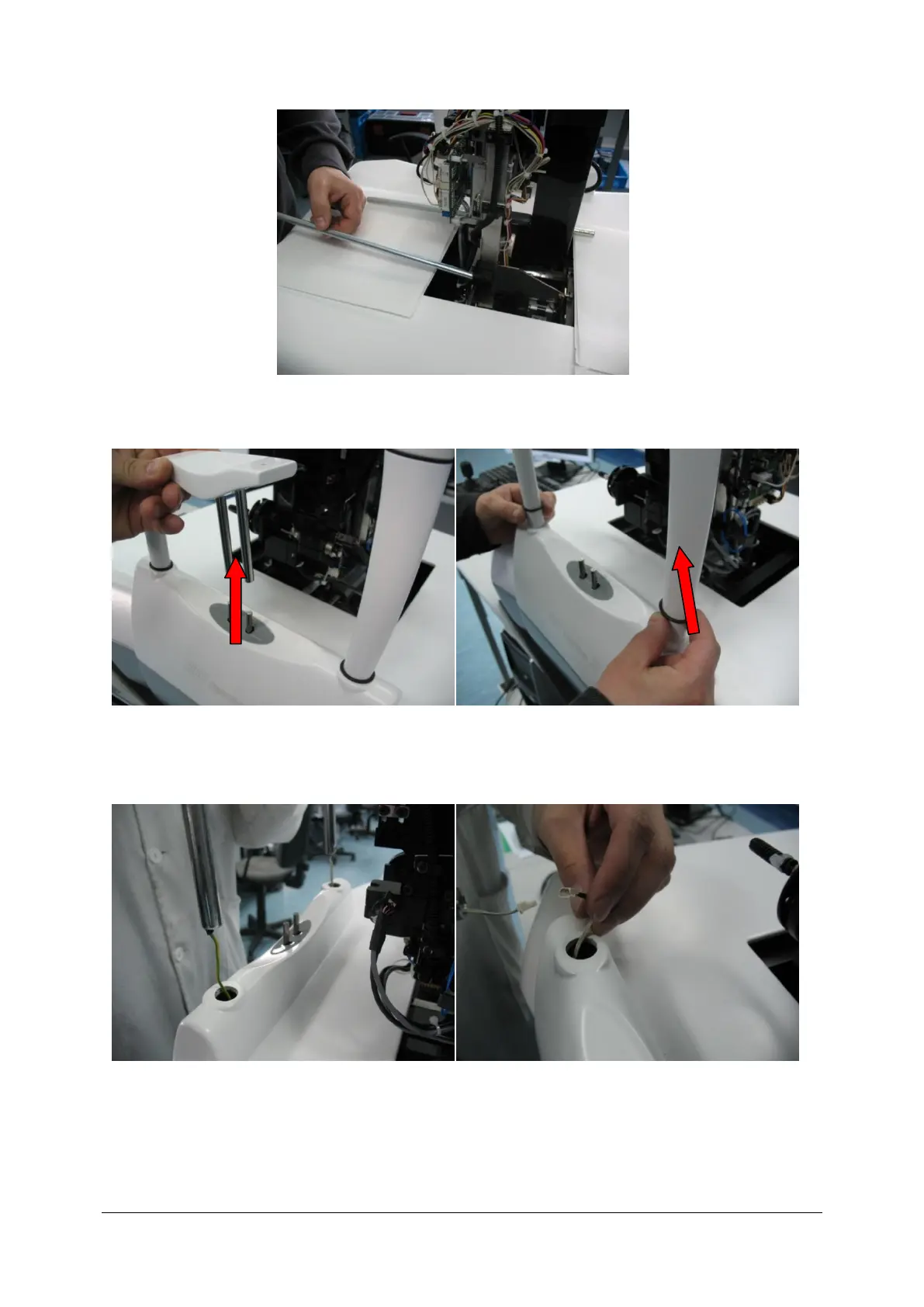

19. Take out the chinrest and the forehead rest.

This step can be done at the very beginning:

20. Undo the external fixation plug and undo screw holding the ground cable of forehead

rest:
