Replace the Internal SAS HBA Card
4.

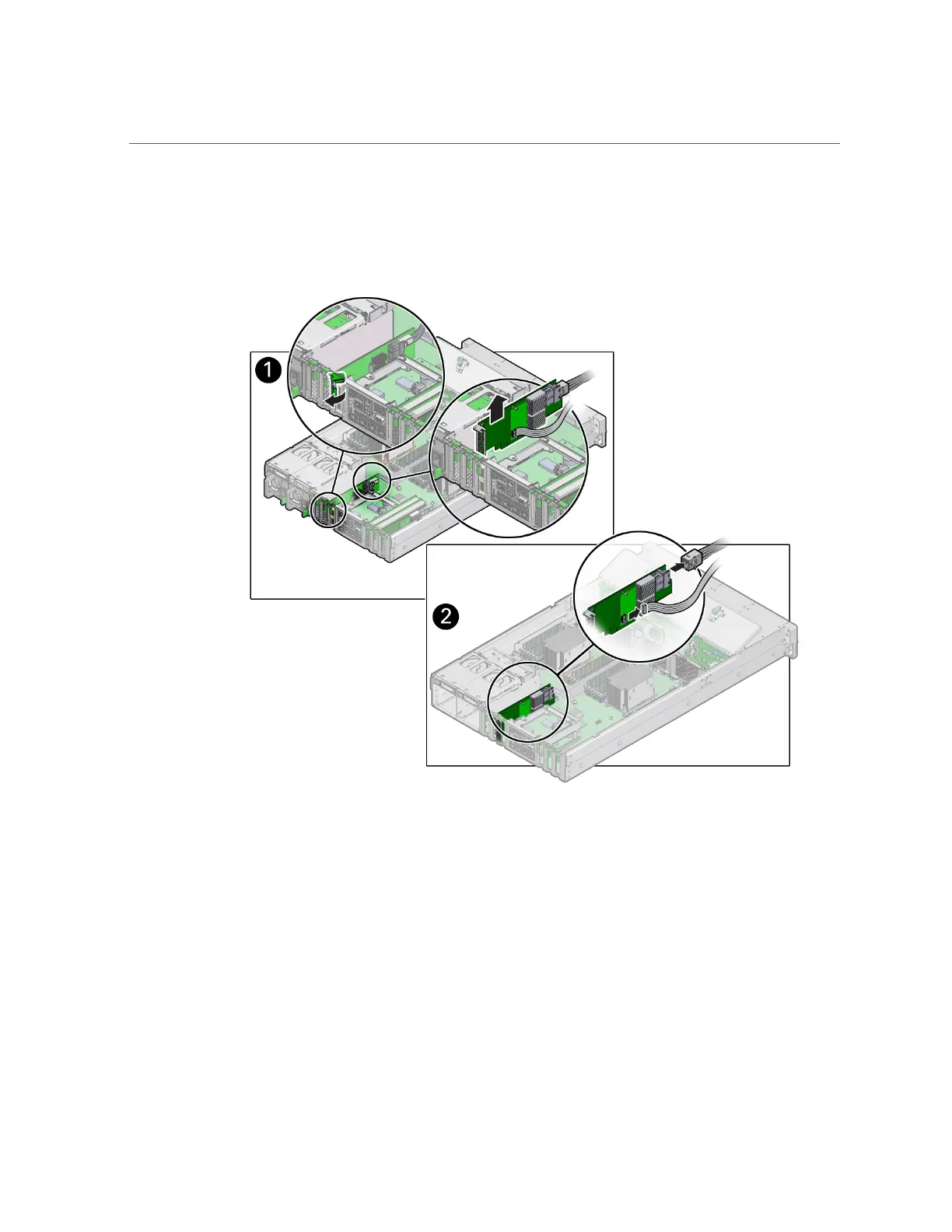

Rotate the PCIe card locking mechanism, and then lift up on the PCIe HBA card
to disengage it from the motherboard connectors [1].
5.
Disconnect the super capacitor cable and the SAS cables from the SAS HBA
card [1].
6.
Remove the SAS HBA card from the chassis [2].
7.
Remove super capacitor cable from the chassis.
The super capacitor cable is routed along the left side of the chassis (when facing the front of
the system).
112 Oracle Database Appliance Service Manual • November 2017
