Install PCIe Card in PCIe Riser
2.
Locate the proper PCIe slot for the card you are replacing.
3.
Remove the PCIe riser.
See “Remove PCIe Riser From Server Nodes” on page 178.
4.
Insert the PCIe card into the correct slot on the riser.
a.
Press the PCIe card until the locking bracket on the PCIe card is flush with
the recessed area on the PCIe riser.
b.
Slide the locking bracket down until it engages the PCIe riser locking tab.

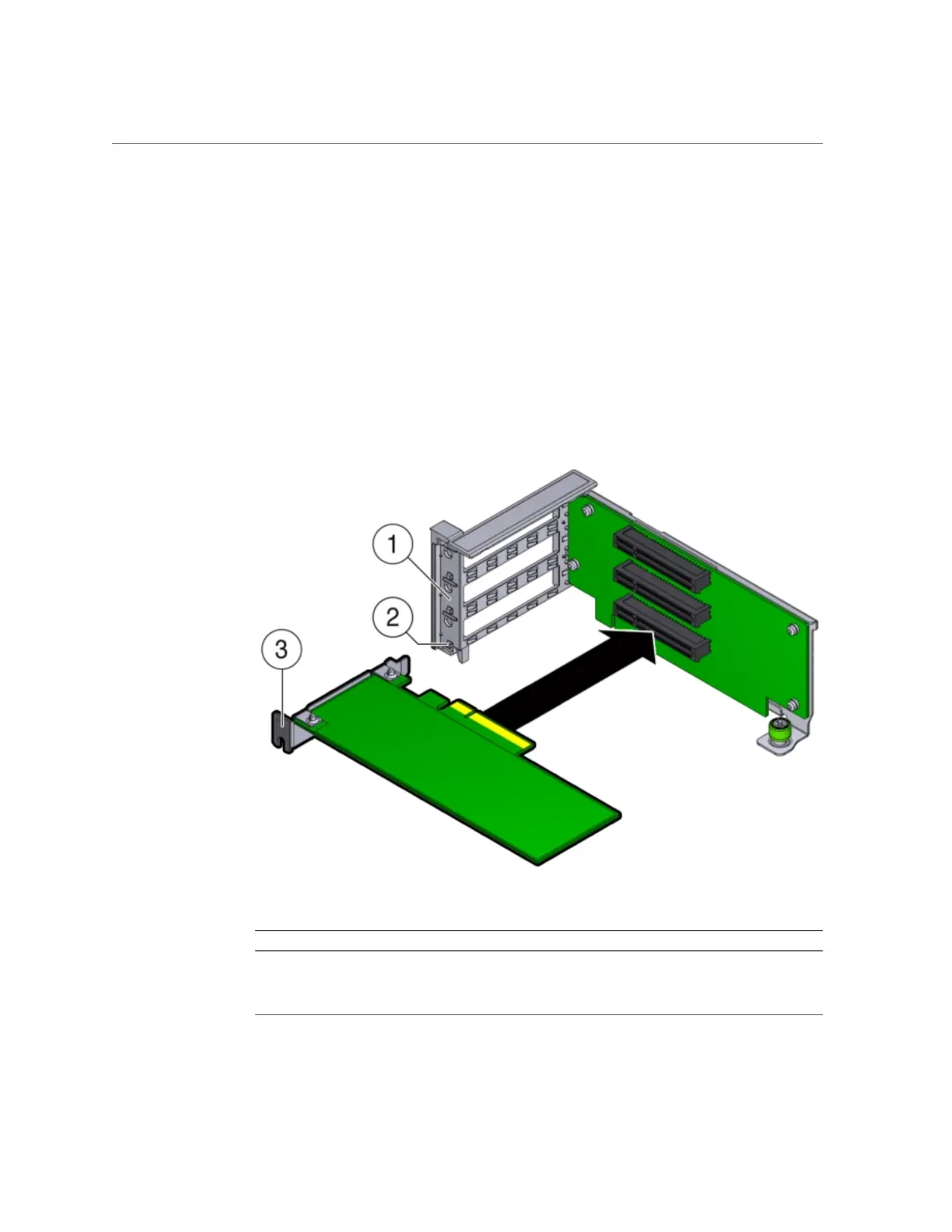

Callout Description
1 Recessed area on the PCIe riser
2 PCIe riser locking tab
3 PCIe card locking bracket
Appendix A • Servicing the Oracle Database Appliance Version 1 185
