Oracle Database Appliance X6-2-HA Service Manual

Install PCIe Card Cables for Primary HBA PCIe Card
See “Removing the Server Node Top Cover” on page 149.
2.
Disconnect the primary HBA PCIe card cables and remove them from the server
node.
a.

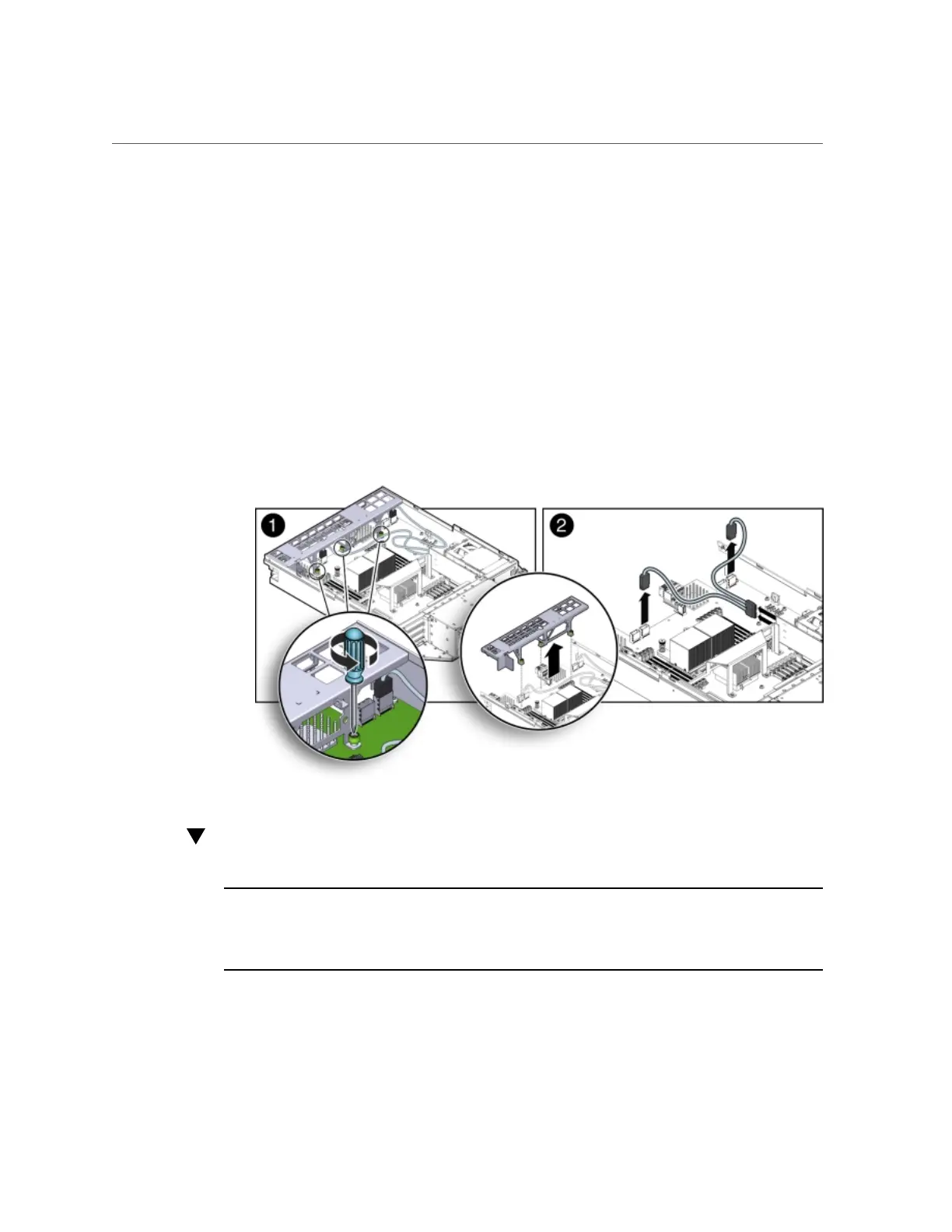

Loosen the three green, captive Phillips screws that secure the server
node's front cover and remove the cover [1].
b.
Disconnect the two cables from the primary HBA PCIe card and remove the
cables [2].
To remove each cable connector, push the connector inward, press down on the connector
to release it, and pull the connector out.
Install PCIe Card Cables for Primary HBA PCIe Card
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes installing PCIe card cables in Oracle Database Appliance Version 1.
Appendix A • Servicing the Oracle Database Appliance Version 1 231
