Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators

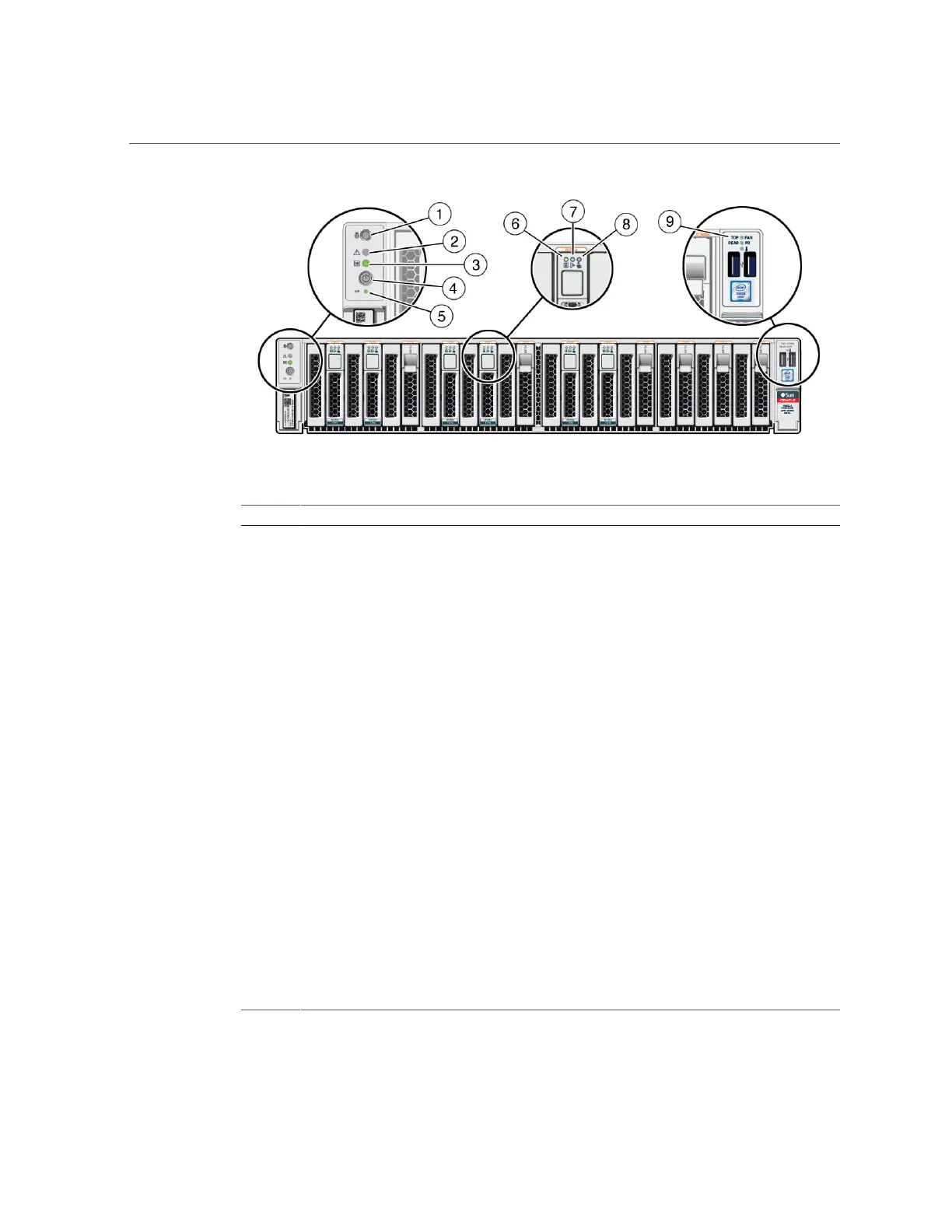

Callout Indicator/LED: Color State Meaning
1 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
2 Service Required: amber ■ Off – Normal operation.
■ On – A fault is present in the server node.
Note - The lighting of this indicator is always accompanied by a
system console message that includes a recommended service action.
3 OK: green Indicates the operational state of the server node:
■ On – The server is powered on, and all host POST code
checkpoint tests are complete. The server is in one of the
following states: 1) the server host is booting the operating
system (OS), 2) the server host is running the OS.
■ Off – AC power is not present or the Oracle ILOM boot is not
complete.
■ Steady blink – Standby power is on, but the chassis power is off
and the Oracle ILOM SP is running.
■ Slow blink – Startup sequence has been initiated on the host.
This pattern should begin soon after you power on the server.
This status indicates either: (1) POST code checkpoint tests are
running on the server host system, or (2) the host is transitioning
from the powered-on state to the standby state on shutdown.
4 Power button Press to apply full power. Press again to turn main power off, but
leave standby power on the Oracle ILOM.
5 Service processor (SP): green ■ Off – The service processor (SP) is not running.
■ On – The SP is fully operational.
■ Slow blink – SP is booting.
28 Oracle Database Appliance Service Manual • November 2017
