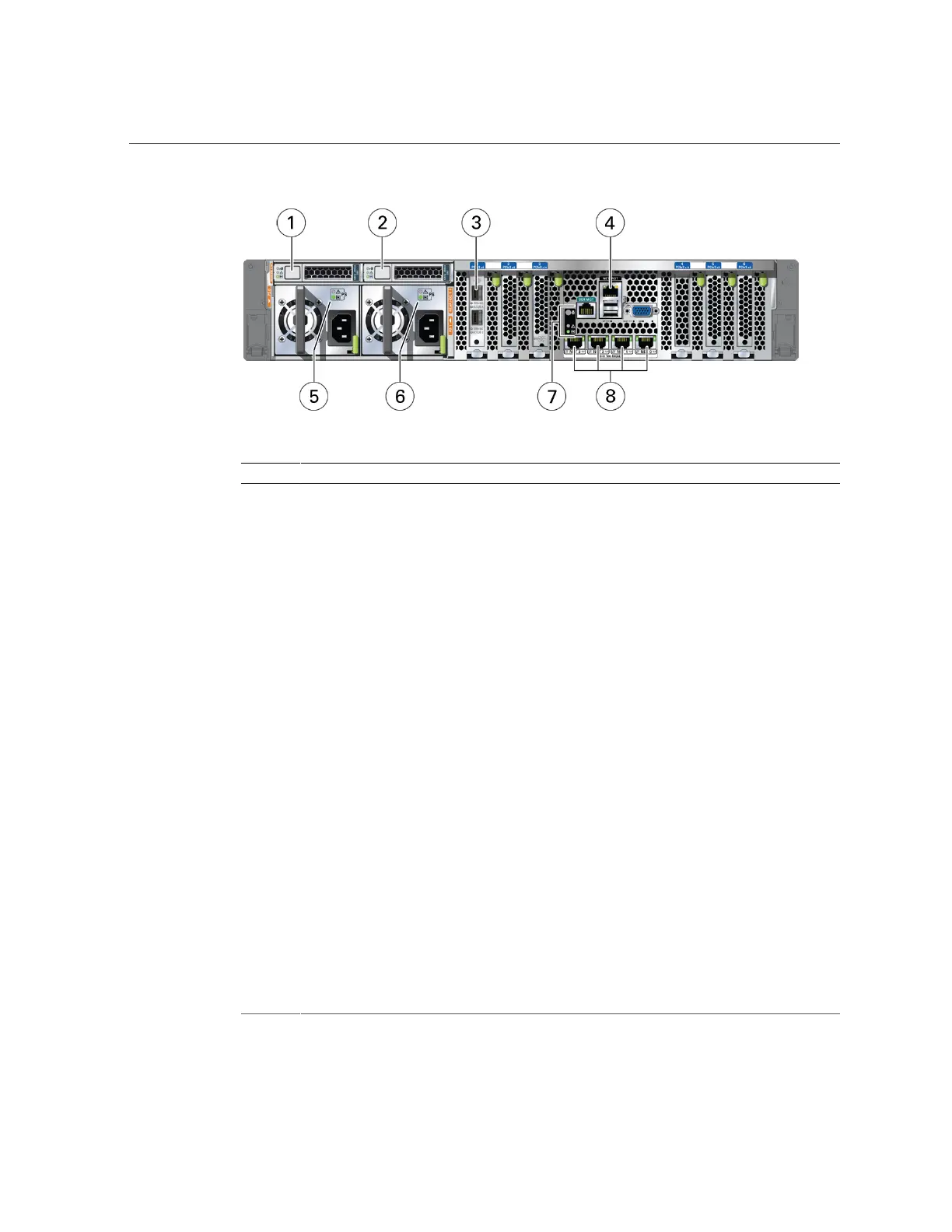

Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators
Callout Indicator/LED: Color State Meaning
1, 2 Storage drive status: various These operate in the same way as on the front panel.
3 Dual-port 10 GbE SFP+ PCIe
2.0 Low Profile Adapter ports:
green/amber
GRN=10G:
■ On – Green for 10GbE link; amber for 1GbE link.
■ Off – No function.
ACT/LINK (A or B):
■ On – Green for link up.
■ Off – No link.
■ Blinking – Green for packet activity.
4 NET MGT port: green 10/100/1000 BASE-T Ethernet management interface.
Top left link indicator:
■ On – Green for 1000Base-T link.
■ Off – 10/100BASE-T link.
Top right activity indicator:
■ On – Link up.
■ Off – No link or link down.
■ Blinking – Packet activity.
5, 6 PS Service Required: amber
PS OK: green
PS Service Required:
■ Off – Normal operation.
■ On – The power supply (PS) has detected a PS fan failure, PS
over-temperature, PS over current, or PS over or under voltage.
PS OK:
■ Off – No AC power is present.
■ On – Normal operation. Input AC power and DC output voltage
are within specification.
30 Oracle Database Appliance Service Manual • November 2017
