Oracle Database Appliance X5-2 Status Indicators

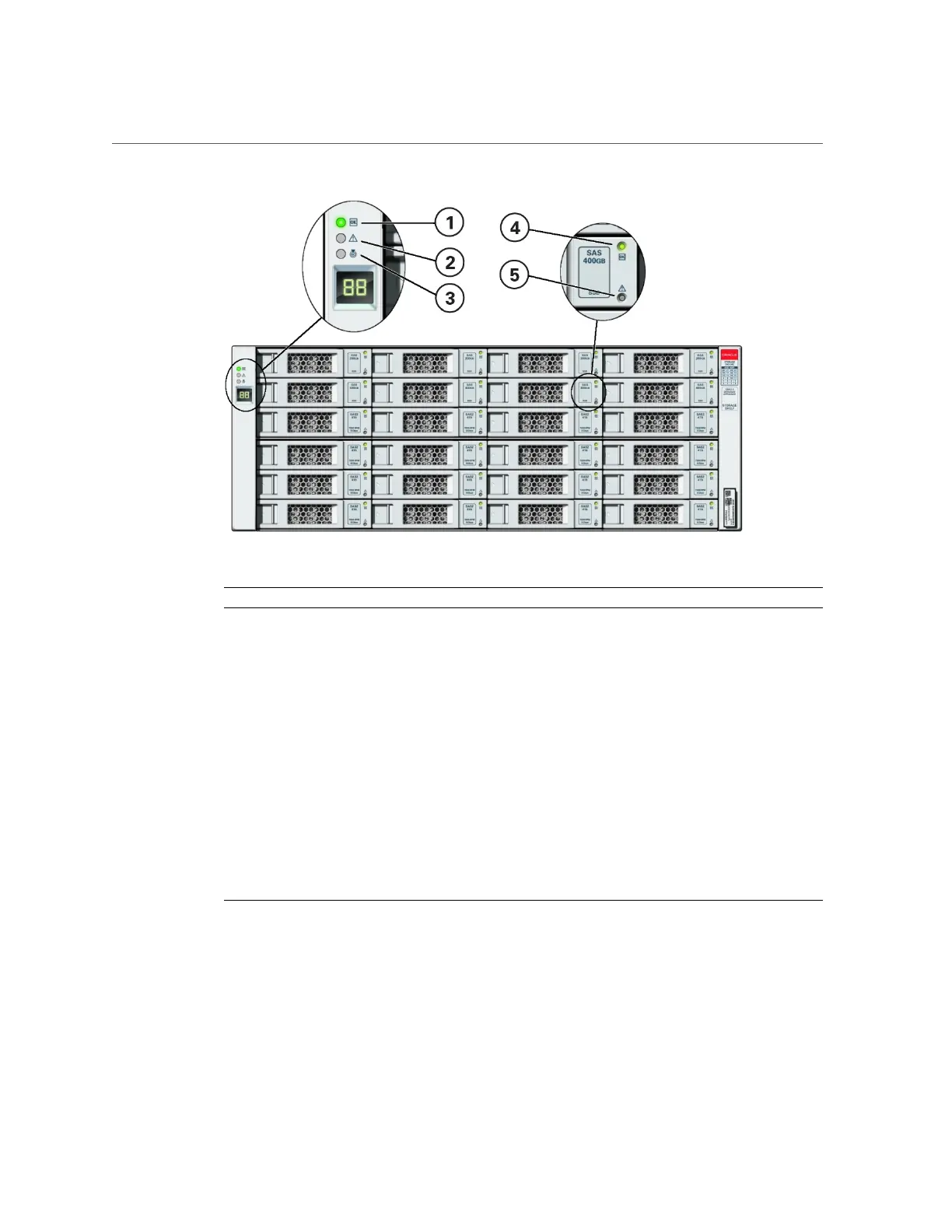

Callout Indicator/LED: Color State Meaning
1 OK: green ■ On – The storage shelf is powered on and operating normally.
■ Off – The storage shelf is unplugged or turned off.
2 Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the storage shelf.
3 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
4 Drive Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
5 Power/Activity: green ■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
Chapter 1 • Overview of System Status Indicators and LEDs 43
