Oracle Database Appliance X5-2 Status Indicators
Storage Shelf Back Panel Status Indicators

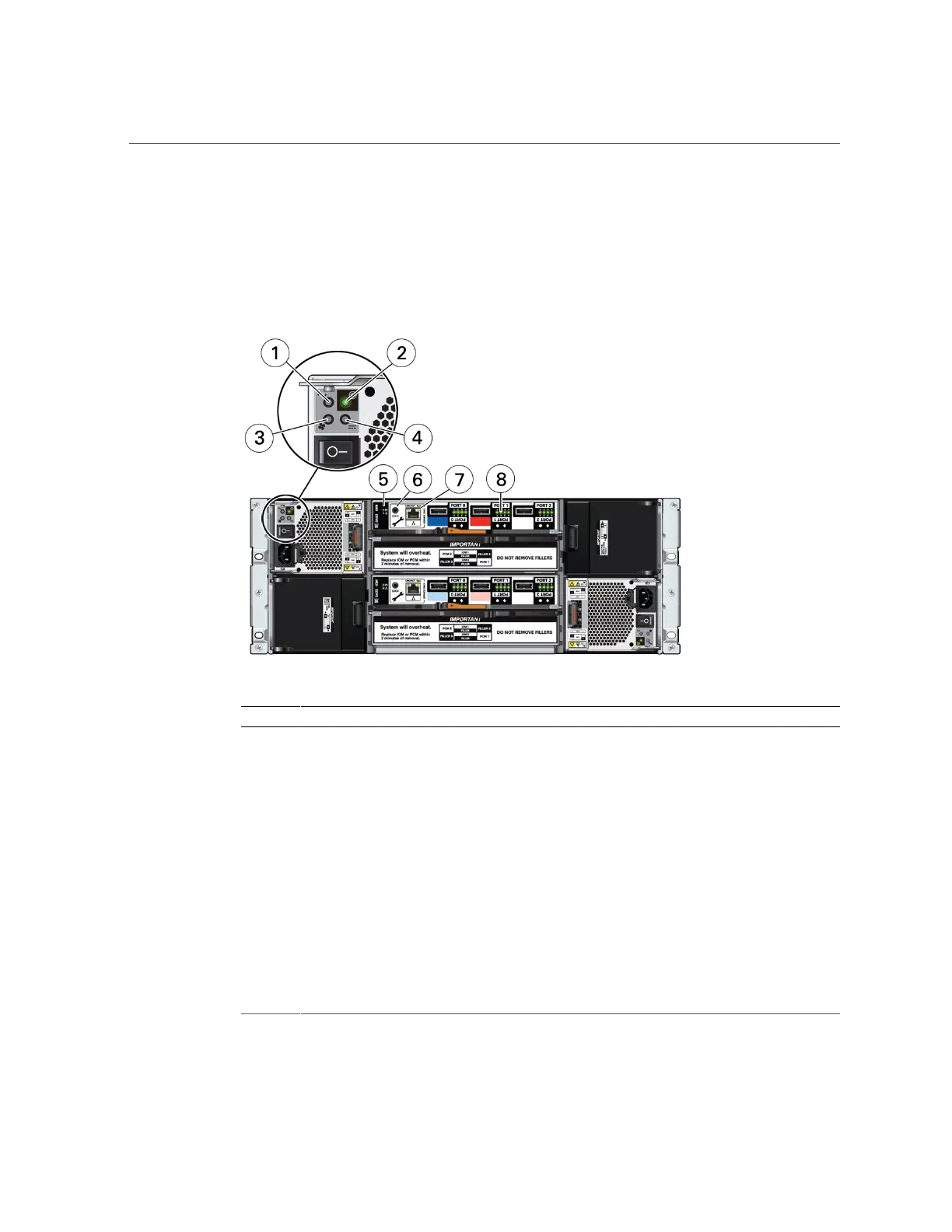

The following figure shows the controls and indicators on the Oracle Database Appliance X5-2
storage shelf (DE2-24C) back panel and drives.
Callout Indicator/LED: Color State Meaning
1 AC power fault indicator: amber ■ On – Indicates an AC power fault.
■ Off – Normal operation.
2 Power supply status indicator:
green
■ On – The power supply is operating normally.
■ Off – The power supply is unplugged or turned off.
3 Fan fail indicator: amber ■ On – The fan is faulty.
■ Off – Normal operation.
4 DC power fail indicator: amber ■ On – The power supply is faulty.
■ Off – Normal operation.
5 SAS I/O Module status
indicators: green or amber
■ OK – Lights green to indicate normal operation.
■ Service Required – Lights amber to indicate a fault with the I/O
module (top module is 0; bottom module is 1).
6 Reserved This port is reserved for Oracle Service.
7 Network port (reserved) This port is reserved for Oracle Service.
8 Host SAS port activity indicators
(x4 per port): green
■ Random blinking – Indicates host SAS link activity.
44 Oracle Database Appliance Service Manual • November 2017
