How to Replace a ZS3-4 Memory

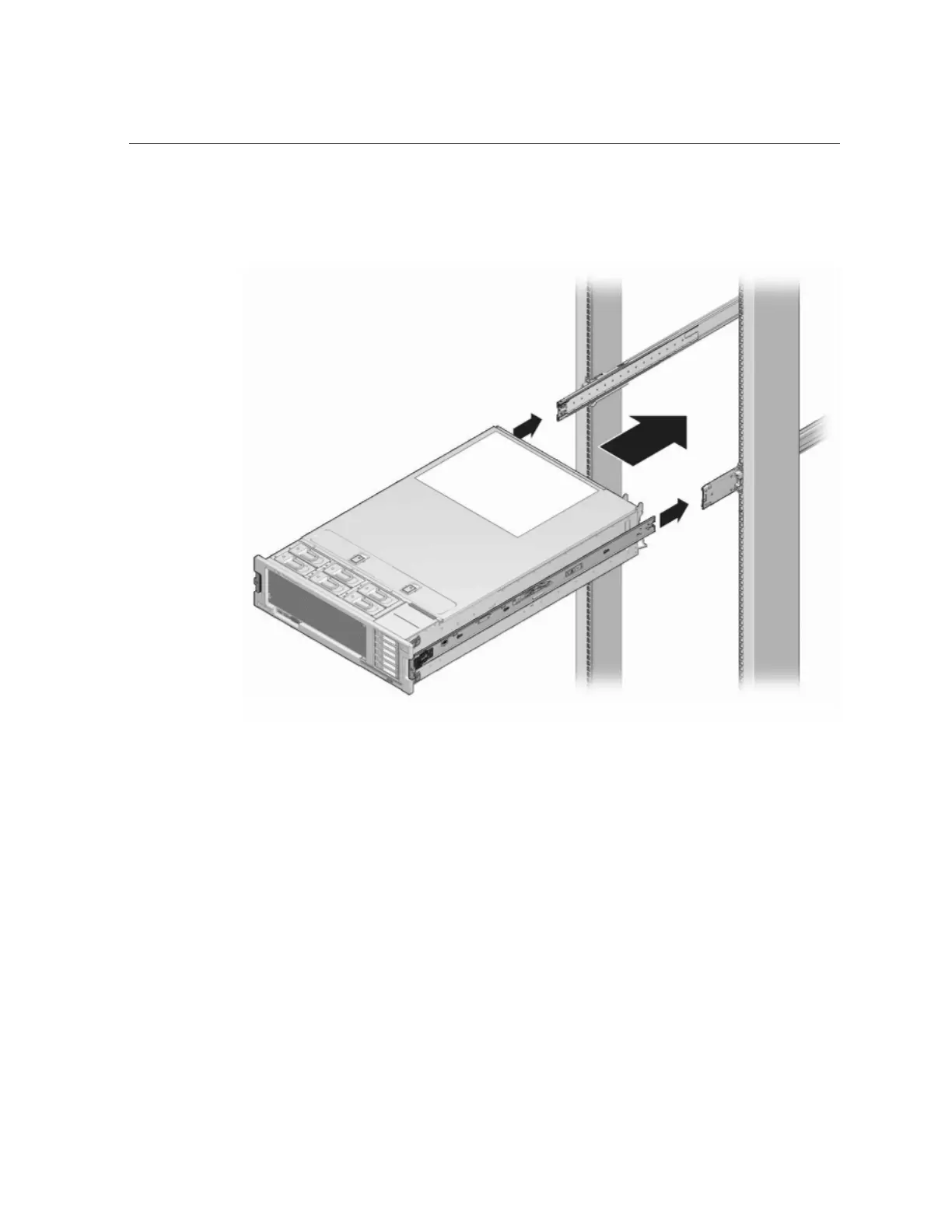

The following image shows the chassis.
11.
Connect the power cords to the power supplies.
12.
Verify that standby power is on, indicated by the Power/OK status indicator
flashing on the front panel about two minutes after the power cords are plugged
in.
13.
Use a pen or other pointed object to press and release the recessed Power
button on the storage controller front panel.
The Power/OK status indicator next to the Power button lights and remains lit. The
Maintenance > Hardware screen of the BUI provides status of the replacement on the Details
page for DIMMs.
104 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
