Servicing the 7x20 Controller
Figure Legend
7 Top Fan
The following figure and legend identify the 7320 front panel drive locations. Two mirrored
hard disk drives (HDDs) that store the operating system reside in slots 0 and 1. Up to four solid
state drives (ReadZilla SSDs), which store the read cache, fill slots 2 through 5, in order. Slots 6
and 7 are empty and must contain drive fillers.

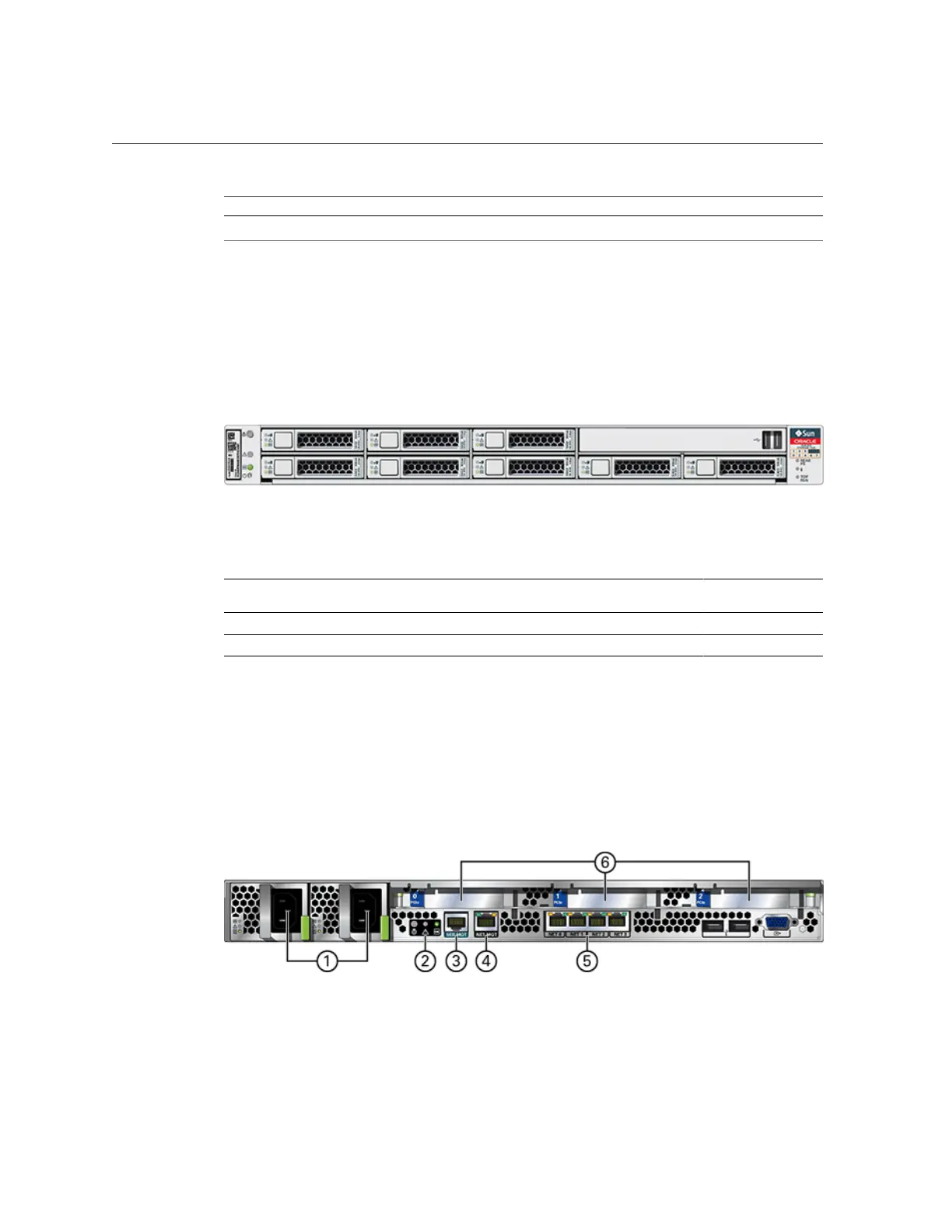

FIGURE 47
7320 Controller Front Panel Drive Locations
TABLE 37
7320 Controller Front Panel Drive Locations
Disk Drive
Locations
HDD1 HDD3 HDD5
HDD0 HDD2 HDD4 HDD6 HDD7
7320 Rear Panel
Following is an illustration of the 7320 storage controller rear panel. The Sun 375-3609 belongs
in slot 2, cannot be installed in any other slots, and a second is not offered as an option.
FIGURE 48
7320 Controller Rear Panel
Servicing the Hardware 175
