Servicing the Disk Shelves

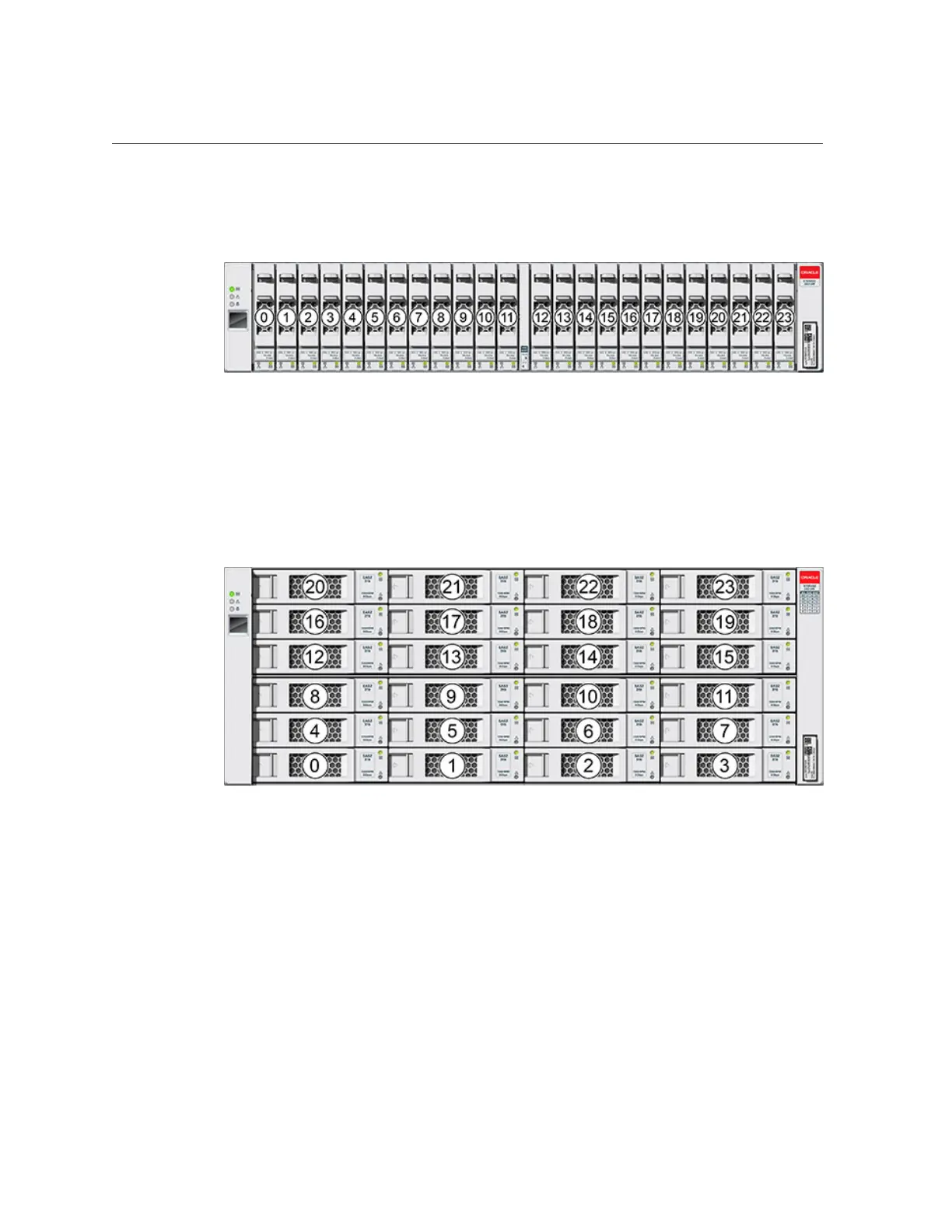

FIGURE 67
Oracle Storage Drive Enclosure DE2-24P Drive Locations
Up to four Logzilla SSDs are supported per disk shelf.
Logzilla SSDs should be populated in order of slots 20, 21, 22, and 23.
FIGURE 68
Oracle Storage Drive Enclosure DE2-24C and Sun Disk Shelf Drive Locations
Up to four Logzilla SSDs are supported per disk shelf.
Logzilla SSDs should be populated in order of slots 20, 21, 22, and 23. (The Oracle Storage
Drive Enclosure DE2-24C is shown and represents both models.)
Disk Shelf Front Panel Indicators
The following figures show the front panel indicators.
Servicing the Hardware 237
