Servicing the ZS3-2 Controller
Figure Legend
4 DIMMs 8 USB flash drive
ZS3-2 CPU and Memory
The ZS3-2 controller motherboard has 16 slots in two groups that hold industry-standard DDR3
low voltage (LV) DIMMS.

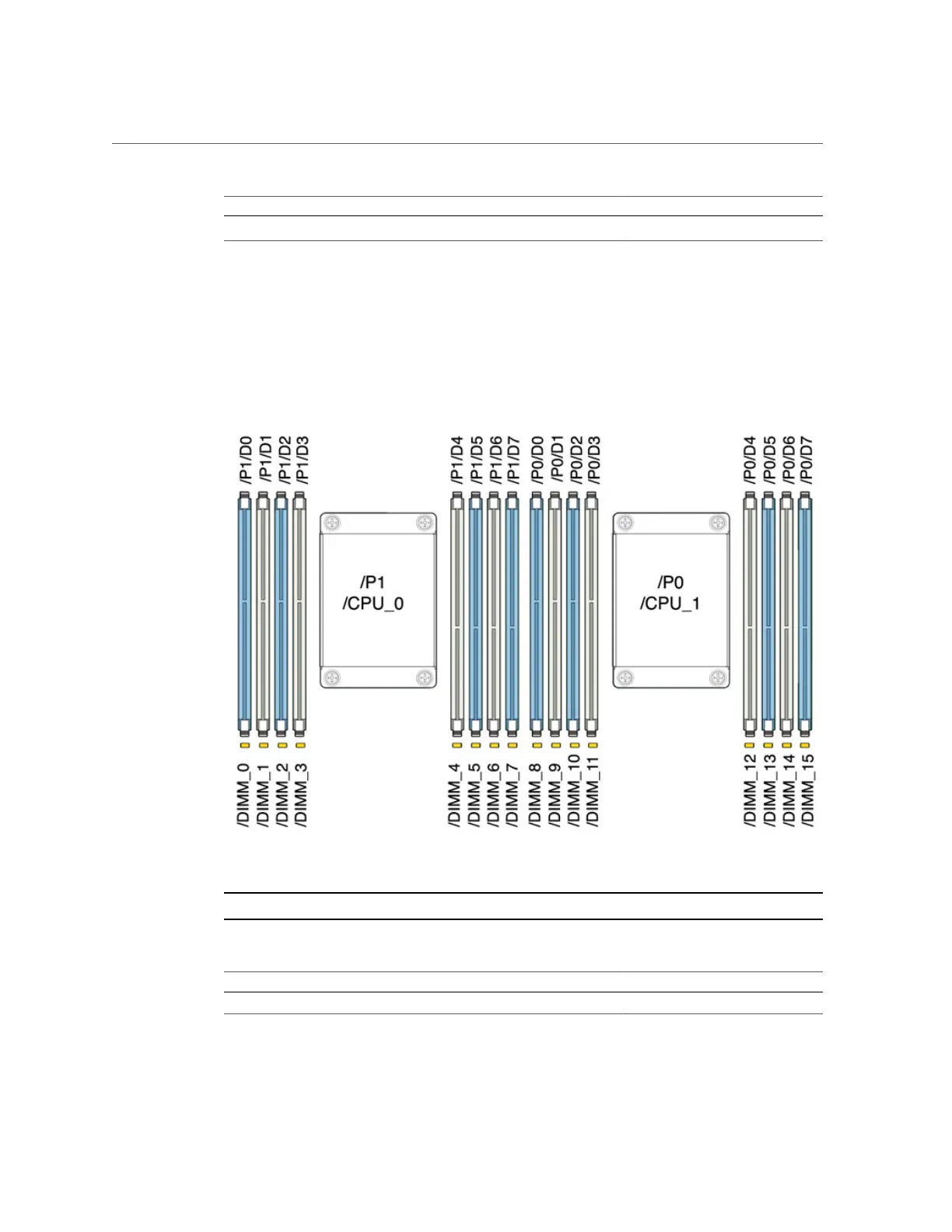

FIGURE 30
ZS3-2 Controller CPU and Memory Components
Note - All sockets must be occupied by identical DDR3 DIMMs.
TABLE 24
ZS3-2 Controller CPU Descriptions
Capacity CPU 0 CPU 1
256GB D0, D2, D5, D7 (blue) D0, D2, D5, D7 (blue)
Servicing the Hardware 121
