Servicing the ZS3-2 Controller

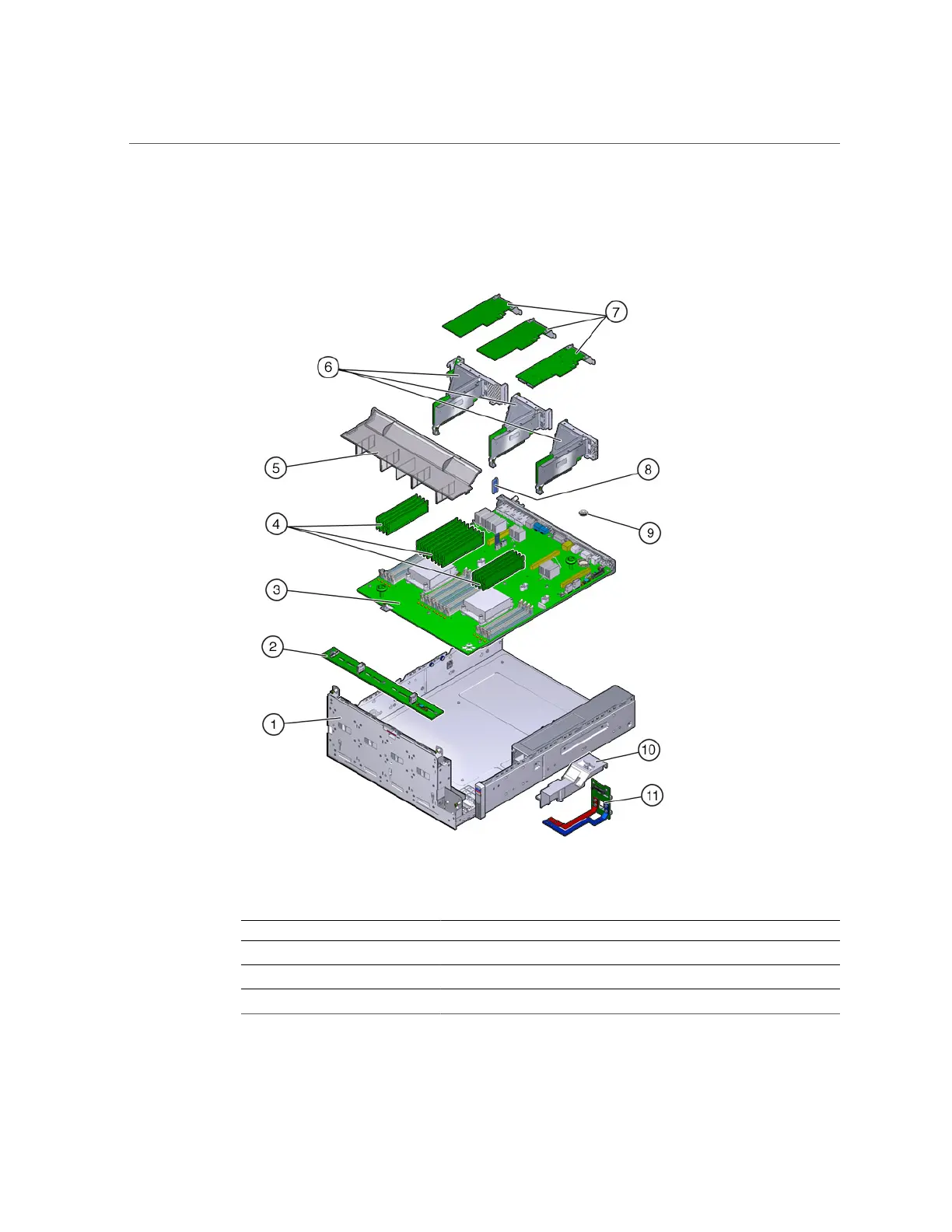

FIGURE 29
ZS3-2 Controller Motherboard, Memory, and PCIe Components
Figure Legend
1 Drive cage (FRU) 5 Airduct 9 Battery
2 Drive backplane (FRU) 6 PCIe Risers (FRU) 10 PDB duct
3 Motherboard (FRU) 7 PCIe cards 11 Power distribution board (FRU)
120 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
