Servicing the 7x20 Controller
Slot Mfg Part Number Description Max Note
8 F375-3609-03
(7059331 for EU
countries)
2-port SAS external
HBA
6 Base configuration
(2 minimum)
9 371-4325-02 8Gb 2-port FC HBA 6 Optional FC target or
initiator (Backup)
9 7051223 2-port optical 10GbE
NIC
6 Optional
recommended front-
end
9 7054739 4-port copper NIC 6 Optional
recommended front-
end
7420 PCIe Slot Order
When installing additional PCIe cards to your base 7420 configuration, cards must be added in
a specific order.
Note - The 7420 M2 reserves slot 0 for a SAS-2 internal HBA, and slots 1 and 8 for two SAS-2
external HBAs (see “7420 PCIe Options” on page 166).

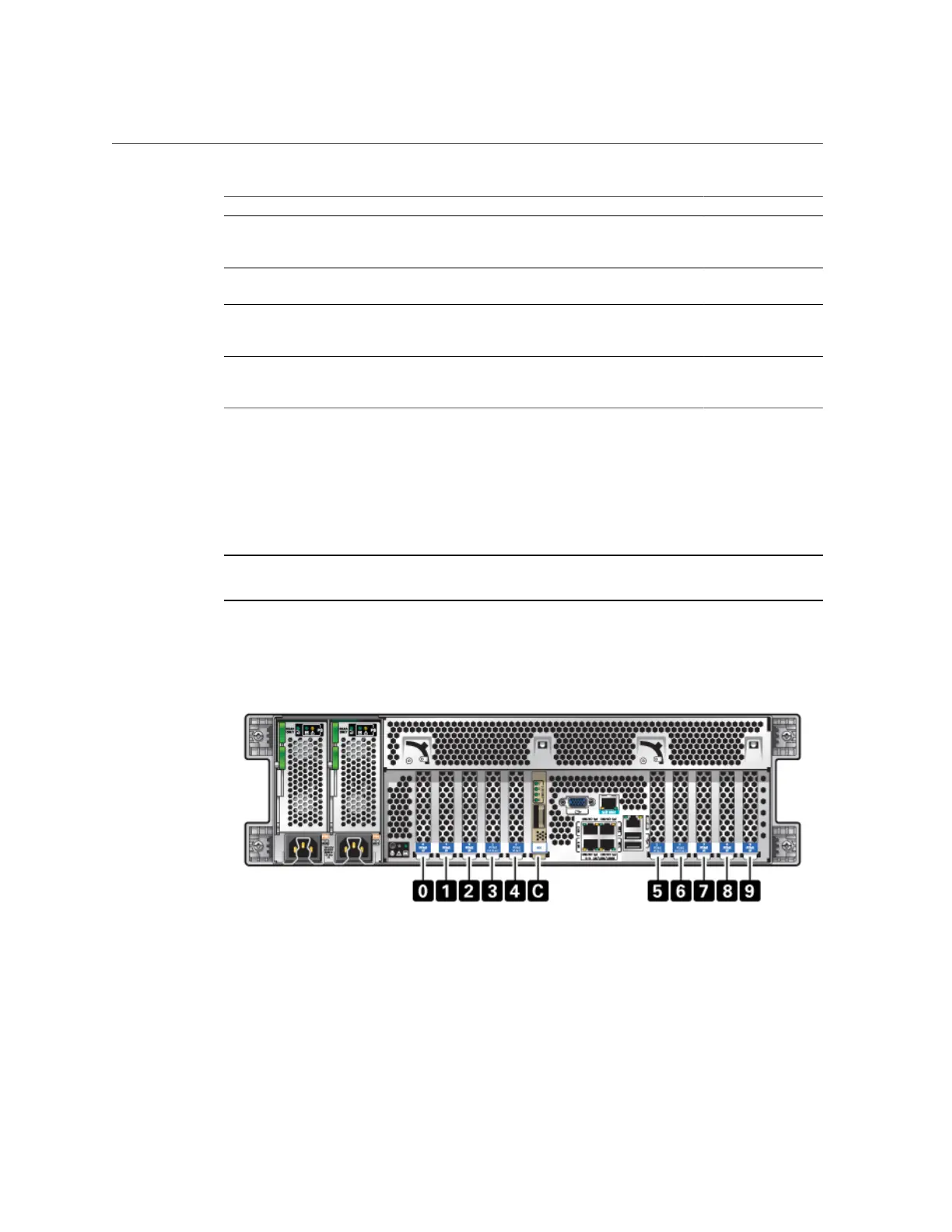

FIGURE 43
7420 Controller PCIe Cards and Slot Order
Install optional PCIe cards in the following order:
Servicing the Hardware 169
