Servicing the ZS3-4 Controller
FIGURE 16

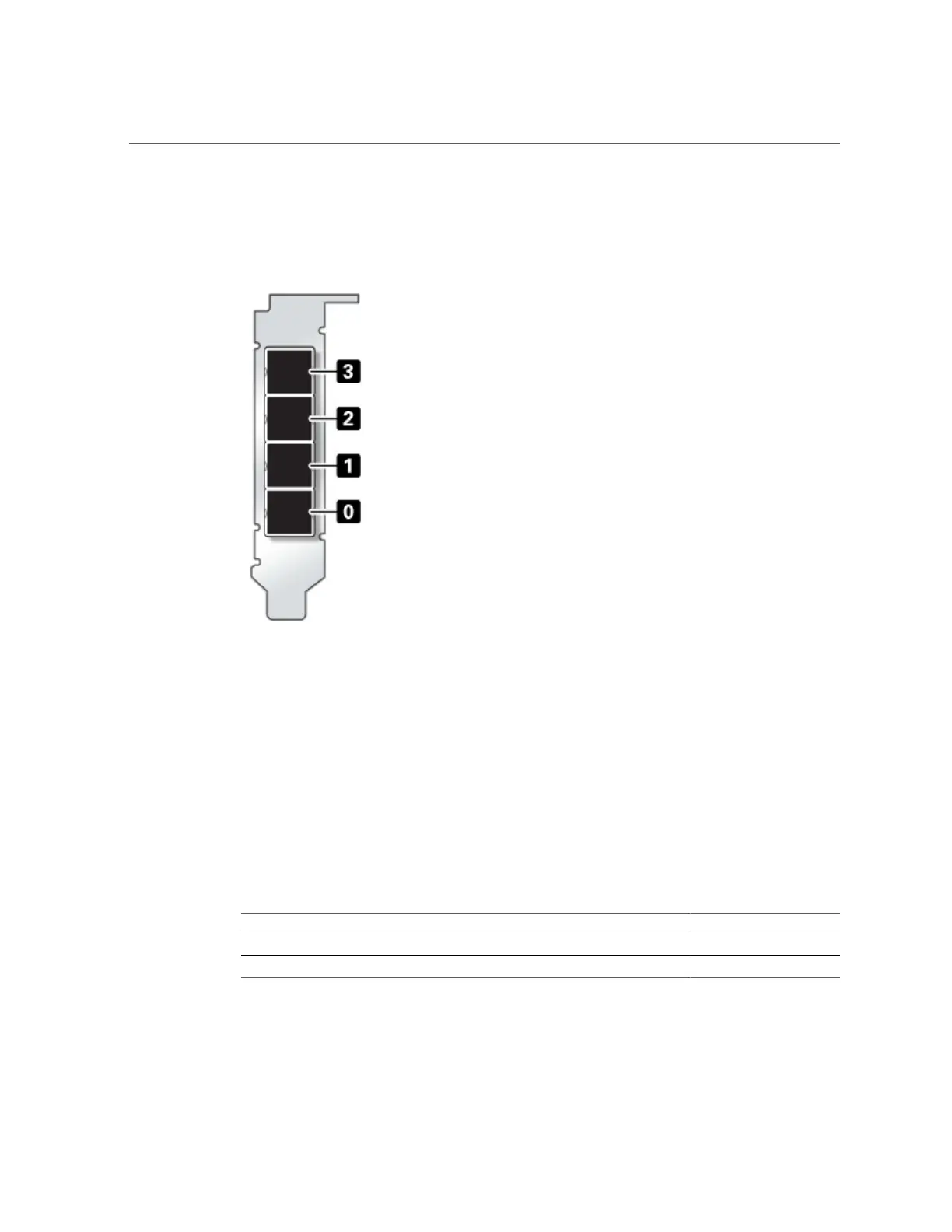

ZS3-4 Controller 4x4 SAS-2 HBA Port Numbers
See “ZS3-4 PCIe Options” on page 86 for slot placement.
ZS3-4 Physical Specifications
The ZS3-4 controller chassis fits in a standard equipment rack, and occupies three rack units
(3RU) in height. The chassis dimensions are as follows:
TABLE 18
ZS3-4 Controller Dimensions
Dimension Measurement Dimension Measurement
Height 13.3 cm/5.25 in Depth 70.6 cm/27.8 in
Width 43.7 cm/17.19 in Weight 16.36 kg/96 lbs
80 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
