Oracle DE2-24 Customer Service Manual

How to Replace a ZS3-4 PCIe Card or Riser
a.

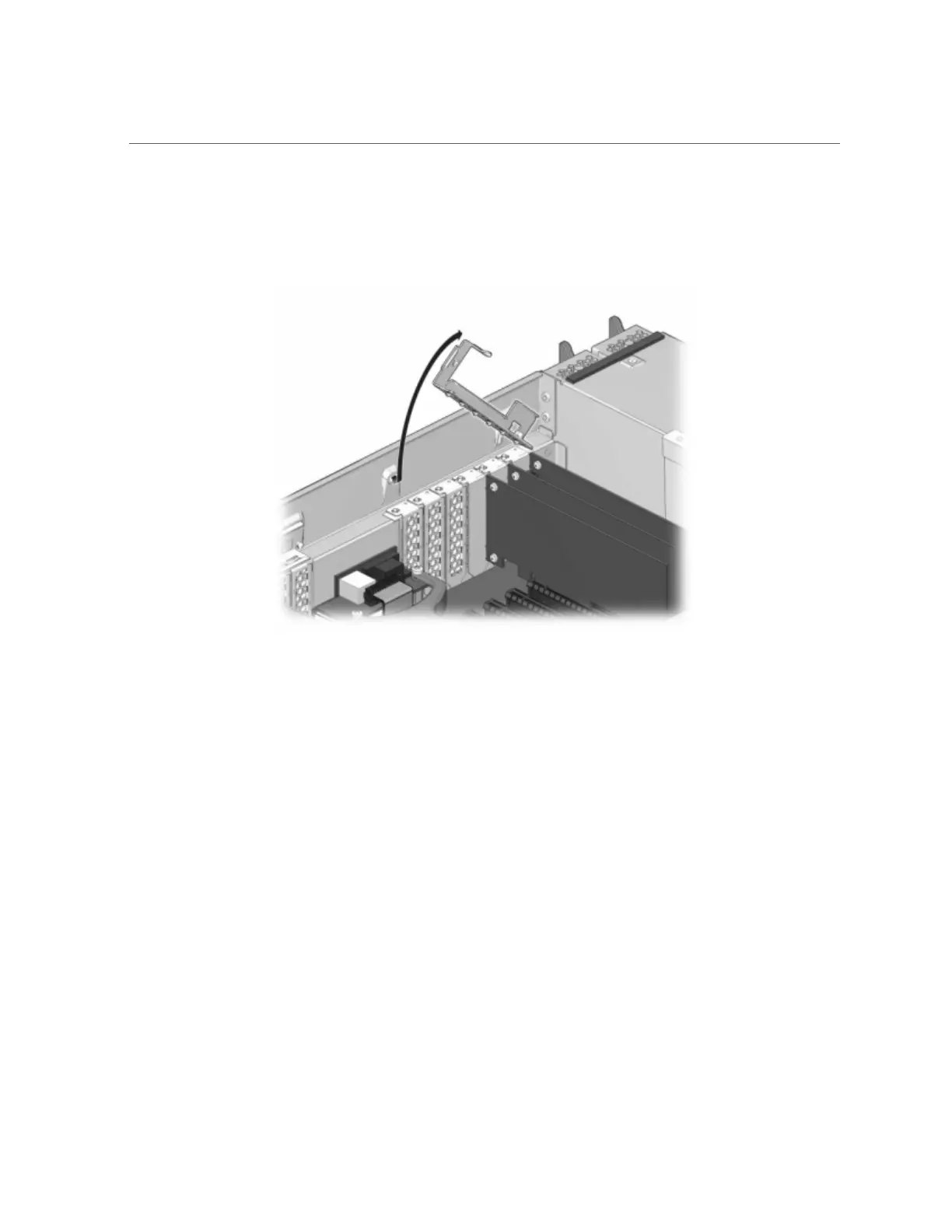

Disengage the PCIe card slot crossbar from its locked position and rotate
the crossbar into an upright position.
b.
Remove the retaining screw that holds the PCIe card to the chassis.
c.
Carefully remove the PCIe card from the connector and clean the slot with
filtered, compressed air if necessary.
d.
Install the replacement PCIe card into the PCIe card slot.
e.
Install the retaining screw to hold the PCIe card to the chassis.
106 Oracle ZFS Storage Appliance Customer Service Manual • February 2016

Oracle DE2-24 Specifications

General

Model	DE2-24
Number of Drives	24
RAID Support	Yes
Rack-mountable	Yes
Drive Types Supported	SSD
RAID Levels Supported	0, 1, 5, 6, 10
Form Factor	2U
Connectivity	SAS
Drive Bays	24
Interface	SAS
