How to Replace a ZS3-4 Battery
4.

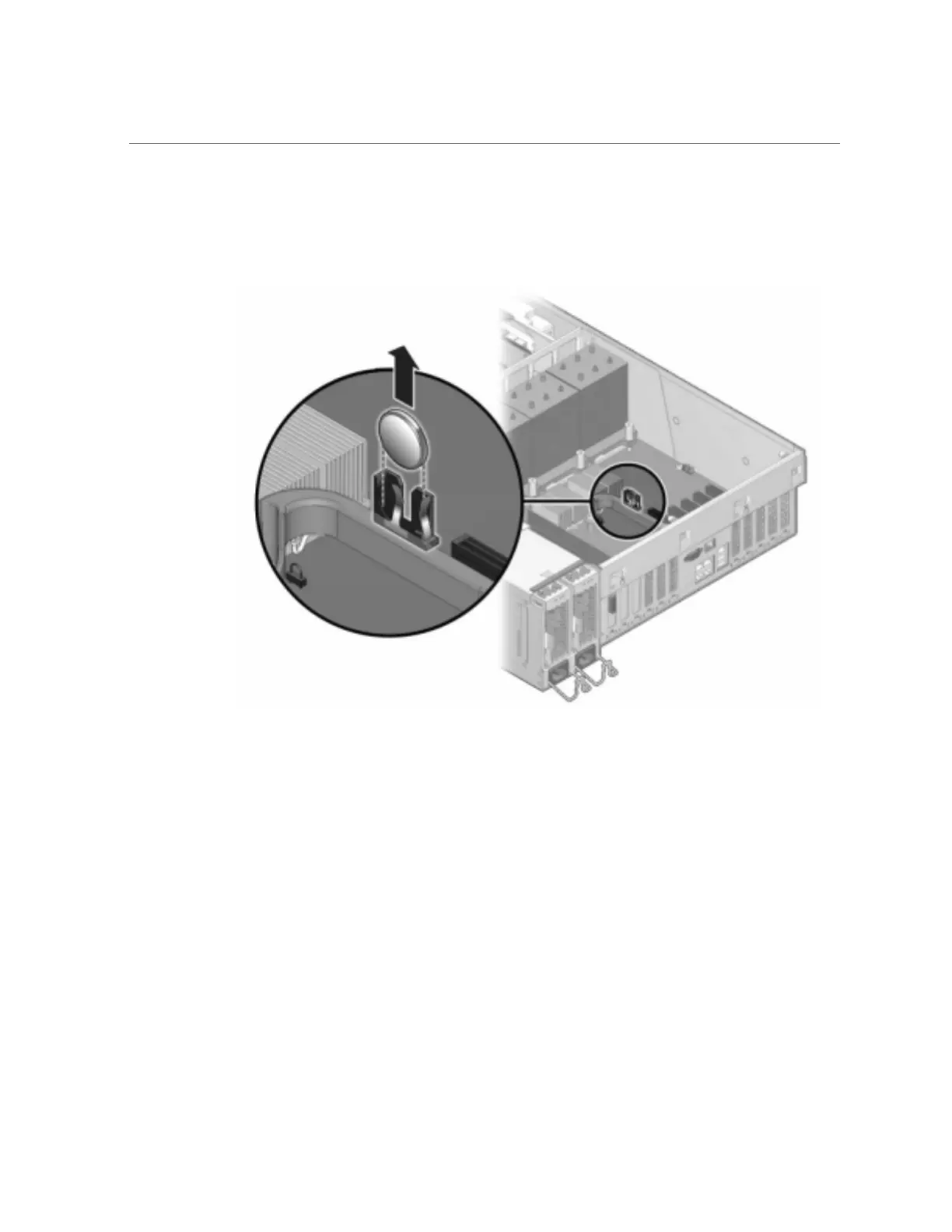

Using a small, non-metallic screwdriver, press the latch and remove the battery
from the motherboard. The battery is shown here.
5.
Press the replacement battery into the motherboard with the positive side (+)
facing upward.
6.
To install the top cover:
a.
Place the top cover on the chassis (1) so that it is forward of the rear of the
storage controller by about an inch (2.5 cm).
b.
Slide the top cover toward the rear of the chassis (2) until it seats.
110 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
